PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Workstation static load capacity	100 kg per seat
Pedestal top load	30 kg
Seating capacity	4 users
Task chair weight capacity	120 kg per chair
Workstation net weight	160 kg
Pedestal mobility load	40 kg loaded cabinet
Hardware durability target	50,000 drawer cycles
Chair swivel and caster durability	50,000 rolling cycles
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Work surface	25 mm wood-grain laminate panel with sealed edge banding
Vertical panels	18 mm white laminated board with matching edge banding
Mobile pedestals	Wood-grain drawer fronts with white carcass panels and recessed handle slots
Support frame	Powder-coated square steel tube or plate brackets hidden beneath panels
Drawer slides	Side-mounted ball-bearing steel slides with full or three-quarter extension
Divider structure	White laminated board screen joined at a cross-shaped central connector

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Seating layout	Four independently oriented work positions share a central cross divider
Privacy division	Two longitudinal and two transverse panels form a 350 mm-high visual barrier
Cable management	60 mm circular grommets route laptop and power cables into the central junction
Pedestal storage	Each outer seat includes a mobile under-desk cabinet with lockable upper front and lower storage

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Main workstation carton size	2450 x 650 x 180 mm
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan office	Suitable for four-person clerical, administrative, or help-desk teams needing defined privacy and shared footprint
Procurement configuration	Pair with four mesh task chairs and under-desk mobile pedestals for a move-in-ready benching cluster

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 527-1:2011	Applicable standards and test results require confirmation
EN 527-2:2014+A1:2019	Applicable standards and test results require confirmation
EN 1335-1:2020	Applicable standards and test results require confirmation
EN 1335-2:2018	Applicable standards and test results require confirmation
EN 1335-3:2009	Applicable standards and test results require confirmation

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.1-2017 (errata 2021)	Applicable standards and test results require confirmation
ANSI/BIFMA X5.5-2021	Applicable standards and test results require confirmation
ANSI/BIFMA X5.9-2019	Applicable standards and test results require confirmation

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2024	Applicable standards and test results require confirmation
GB/T 3325-2017	Applicable standards and test results require confirmation
GB/T 3326-2016	Applicable standards and test results require confirmation
GB 18580-2017	Applicable standards and test results require confirmation

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2024: Applicable standards and test results require confirmation;
2. GB/T 3325-2017: Applicable standards and test results require confirmation;
3. GB/T 3326-2016: Applicable standards and test results require confirmation;
4. GB 18580-2017: Applicable standards and test results require confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · WS4-OAK-WHT-2400

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · WS4-OAK-WHT-2400

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · WS4-OAK-WHT-2400Open Export Tool

Quick Actions

Post an RFQ

Product Description

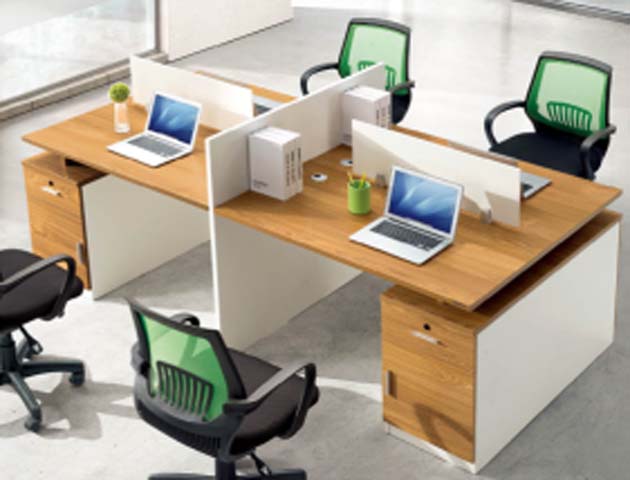

The Four-Person Modular Office Workstation, model WS4-OAK-WHT-2400, presents a cross-shaped benching layout with four independently oriented seats sharing a central divider. Two longitudinal and two transverse white laminated panels meet at a central connector, creating a 350 mm-high visual barrier that gives each user a defined workspace while preserving a compact shared footprint. Wood-grain laminate worktops and pedestal fronts provide a warm visual contrast to the white laminate vertical panels, resulting in a clean, contemporary office aesthetic suited to neutral commercial interiors. Construction balances board surfaces with a concealed steel support structure. The work surface uses 25 mm wood-grain laminate with sealed edge banding, while vertical panels are 18 mm white laminated board with matching edge banding. Powder-coated square steel tube or plate brackets are hidden beneath the panels. Support sections use an 80 mm main section with a 2 mm metal wall, and the finished top thickness is 50 mm. Each main seat offers 680 mm of knee clearance height and 900 mm of width. The divider is built from white laminated board joined through a cross-shaped central connector. Designed for practical daily use, the workstation accommodates four users with a static load capacity of 100 kg per seat. Circular cable openings, specified as 60 mm grommets in the functional layout, route laptop and power cables toward the central junction; the cable opening is listed at 80 mm in diameter with a cable tray depth of 120 mm. Each outer seat includes a mobile under-desk pedestal with wood-grain drawer fronts, white carcass panels, recessed handle slots, a lockable upper front, and lower storage. Pedestals use side-mounted ball-bearing steel slides with full or three-quarter extension, support 30 kg on the top and 40 kg as a loaded mobile cabinet, and carry a hardware durability target of 50,000 drawer cycles. When paired with four mesh-back swivel task chairs, the configuration forms a move-in-ready cluster; each chair is rated for a 120 kg user weight. This system is best suited to open-plan offices housing clerical, administrative, or help-desk teams that require modest privacy, cable containment, and personal storage without occupying four separate desk footprints. It can also support residential workspace conversions where multiple users need organized stations. Procurement teams should plan for assembly, delivery space, and configuration compatibility. The workstation weighs 160 kg net, with packaged gross weight listed at 180 kg per set and packaging volume at 1 cubic metre. Reference packaging information describes separate packing for the main top, return, and pedestals; buyers should confirm carton count and freight details at ordering. Assembly time is referenced at 40 minutes per set. Specify the four mesh task chairs and mobile pedestals as part of the complete cluster, and verify locker-key requirements, power routing, and flooring protection before installation.

Four-Person Modular Office Workstation with Divider Screens and Mobile Pedestals Specifications
