PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1400 × 700 × 1100 mm
Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Life	Acceptance target 80000 cycles
Top Abrasion Reference	Acceptance target ≥4,000 abrasion cycles or finish-system test
Recommended Procurement Warranty	Structure 5 years; hardware 3 years; finish 2 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Primary Panel Thickness	25 mm; load-bearing top may use 40 mm composite build-up
Edge Band Thickness	2 mm
Metal Frame Wall Thickness	2 mm cold-rolled steel
Primary Connector Specification	Reference M6-M8 with at least 2 fixing points per main support
Reference Finish / Color Count	Recommended 6top finishes and 3frame colors

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Cable Management Capacity	Reference capacity 10power/data cables; tray load 10 kg
Reference Reassembly Count	Main joints should support 5controlled assembly cycles

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

No data is available for this section.

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.5

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · WS-SGL-1400-PED-SCREEN

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · WS-SGL-1400-PED-SCREEN

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · WS-SGL-1400-PED-SCREENOpen Export Tool

Quick Actions

Post an RFQ

Product Description

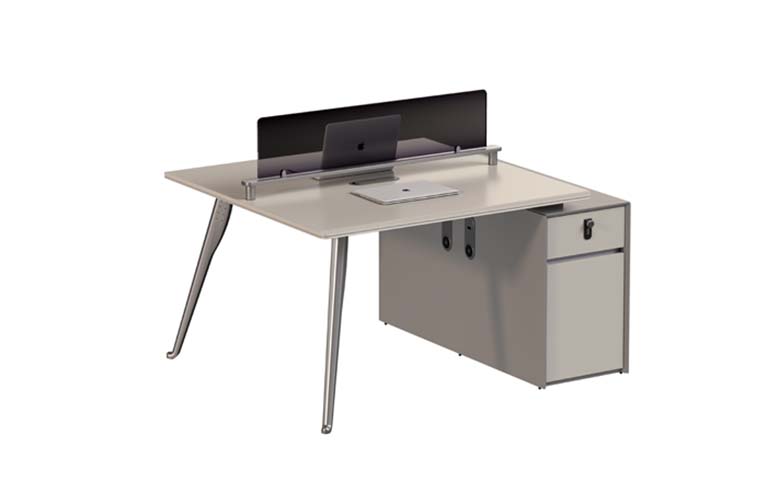

The Single Workstation Desk with Privacy Screen and Fixed Storage Pedestal is a structured individual office desk designed for focused work while keeping storage and cable routing within the same footprint. Its visual character is defined by a light grey laminate work surface, grey steel legs and supports, and a fabric-covered privacy screen that gives the workstation a defined boundary without creating a fully enclosed feel. Angled metal legs contribute to a contemporary commercial appearance, while the fixed steel-and-wood pedestal provides a grounded, practical layout beneath or alongside the work surface. The model is unbranded and identified as WS-SGL-1400-PED-SCREEN within the office workstation desk category. Construction combines panel and steel components. The finished top is 50 mm thick, with primary panels specified at 25 mm and a possible 40 mm composite build-up for load-bearing sections. Edges use 2 mm edge banding, and the main metal support section is 80 mm with a 2 mm cold-rolled steel wall. Main connectors reference M6 to M8 sizing, with at least two fixing points per main support. The stated static load reference for the top is 150 kg uniformly distributed. Hardware references include drawer slides rated at 45 kg per pair over 50,000 cycles and a hinge acceptance target of 80,000 opening cycles. The finish system carries an abrasion acceptance target of 4,000 cycles or an equivalent finish-system test. Functionally, the workstation integrates desktop privacy, fixed pedestal storage, and cable management. An 80 mm cable opening connects to a tray with 120 mm depth, a reference capacity for 10 power or data cables, and a tray load reference of 10 kg. The seating zone provides 680 mm high and 900 mm wide knee clearance for the main seat. The main joints are intended to support five controlled assembly cycles, supporting careful reconfiguration where needed. This desk is suited to open-plan offices, administrative areas, booking-based workstations, educational staff rooms, and residential studies requiring a single, organized workspace with storage and visual separation. Buyers should review finish and frame choices against interior standards: the specification references six top finishes and three frame colors. Procurement planning should allow for on-site assembly, with a reference time of 40 minutes per set. Packaging information varies between the summary carton count and detailed logistics records, so receiving teams should confirm shipment configuration before delivery; the detailed record lists 180 kg packaged gross weight and 1 cubic meter per set. Recommended warranty terms are five years for structure, three years for hardware, and two years for finish.

Single Workstation Desk with Privacy Screen and Fixed Storage Pedestal Specifications
