PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall footprint	1500 x 1200 x 1100 mm
Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Product net weight	68 kg
Distributed worktop load	80 kg per seat
Side cabinet top load	40 kg
Drawer load per drawer	20 kg
Seating capacity	2 users
Leveling adjustment	10 mm per foot
Drawer slide cycle target	50,000 cycles
Worktop edge impact target	45 kg drop height 100 mm
Warranty duration	5 years
Top Static Load Reference	150 kg uniformly distributed

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Work surfaces	25 mm melamine-faced particleboard with sealed edges and 2 mm PVC impact edging
Storage cabinet	18 mm dark-grey melamine-faced engineered-wood panels with two front drawers
Central divider	Perforated dark fabric or mesh face over a rigid panel frame
Leg frame	50 mm round white powder-coated steel tube with welded or bolted top brackets
Cable hardware	Black plastic circular grommet and recessed central cable channel
Feet and trim	Injection-molded grey non-marking leveling feet with dark edge rails

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Two-direction workstation layout	Two users sit opposite each other with separate 1200 x 600 mm work zones and one shared central spine
Privacy separation	The 800 x 350 mm perforated divider reduces visual distraction while retaining partial visibility and airflow
Cable routing	Cables pass from each desktop through the central 150 mm recessed channel toward a circular 60 mm grommet
Pedestal storage	A right-side two-drawer cabinet supplies personal filing storage beneath one end of the workstation

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan office	Suits two-person bench planning where adjacent teams need separated screens, shared cable routing and compact pedestal storage
Project or administrative work area	Supports monitor-based desk work, document filing and daily office storage for two staff members

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

Safety requirements	EN 527Office furniture - Worktables and desks - Safety requirements
Mechanical test methods	EN 527Office furniture - Worktables and desks - Safety, strength and durability
Storage safety	EN 14073Office storage furniture - Safety requirements
Storage durability	EN 14073Office storage furniture - Test methods for stability and strength
Upholstered screen fabric	EN 1021cigarette ignition resistance for upholstered furniture fabrics

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

Desk standard	ANSI/BIFMA X5.5 Desk Products
Storage pedestal standard	ANSI/BIFMA X5.9 Storage Units
Low-emission panel option	ANSI/BIFMA e3 Furniture Sustainability Standard level certification

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

Structural safety standard	GB/T 3324General Technical Requirements for Wooden Furniture
Wooden panel test standard	GB/T 3325Test Methods for Wooden Furniture
Formaldehyde emission	GB 18580formaldehyde emission limit for interior decoration materials
Office desk safety	GB/T 3326 Furniture Standard for desks and storage furniture dimensions

Standardized tender description text

This product must meet the following technical requirements:
1. Structural safety standard: GB/T 3324General Technical Requirements for Wooden Furniture;
2. Wooden panel test standard: GB/T 3325Test Methods for Wooden Furniture;
3. Formaldehyde emission: GB 18580formaldehyde emission limit for interior decoration materials;
4. Office desk safety: GB/T 3326 Furniture Standard for desks and storage furniture dimensions;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · WS-2P-SIDE-CAB-1500

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · WS-2P-SIDE-CAB-1500

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · WS-2P-SIDE-CAB-1500Open Export Tool

Quick Actions

Post an RFQ

Product Description

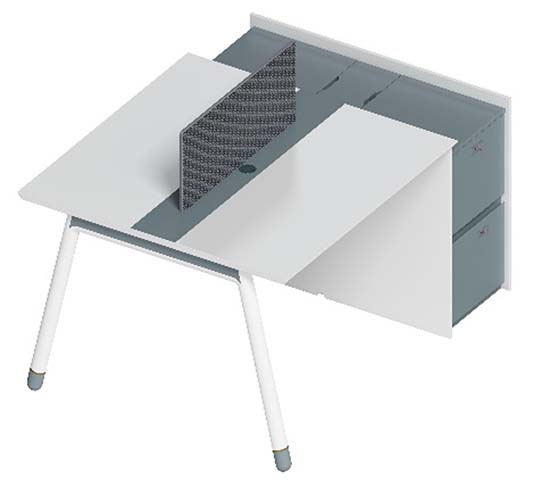

The Two-Person Workstation with Central Divider and Side Storage Cabinet is a modern two-seat office workstation designed for face-to-face bench planning while maintaining a degree of personal separation. Its layout places two users opposite one another, with distinct work zones and a shared central spine. A perforated dark fabric or mesh divider runs through the center, mounted on a rigid panel frame to reduce visual distraction without fully blocking light, airflow, or partial visibility across the desk. The workstation combines melamine-faced engineered-wood surfaces with a white powder-coated steel leg frame. Main work surfaces use 25 mm melamine-faced particleboard with sealed edges and 2 mm PVC impact edging, presented in a substantial 50 mm finished top profile. The right-side storage cabinet is built from 18 mm dark-grey melamine-faced engineered-wood panels and includes two front drawers for personal or filing storage beneath one end of the desk. Support is provided by round steel tube legs with welded or bolted top brackets, dark edge rails, and injection-molded grey non-marking leveling feet. Practical functionality is integrated into the layout rather than added as a separate accessory. Each desktop can route cables toward the recessed central cable channel and through a black plastic circular grommet, helping keep monitor, power, and peripheral leads organized around the shared spine. The two-drawer side pedestal offers accessible storage for documents and daily office items, while adjustable leveling feet allow the workstation to compensate for uneven floors. The rated distributed worktop load is 80 kg per seat, the side cabinet top supports 40 kg, and each drawer is rated for 20 kg. This workstation is well suited to open-plan offices, project rooms, administrative areas, and other compact commercial work environments where two staff members need independent screen-based work space, shared cable management, and nearby filing. It can also be considered for residential study or home-office settings that accommodate two regular users. Procurement planning should account for flat-pack delivery and assembly, with the product supplied as a packaged set rather than a single prebuilt unit. Buyers should confirm current packaging details, cabinet orientation, delivery access, and assembly support before ordering, and should specify the workstation through its model, WS-2P-SIDE-CAB-1500, when coordinating multiple workstations for a consistent office layout.

Two-Person Workstation with Central Divider and Side Storage Cabinet Specifications
