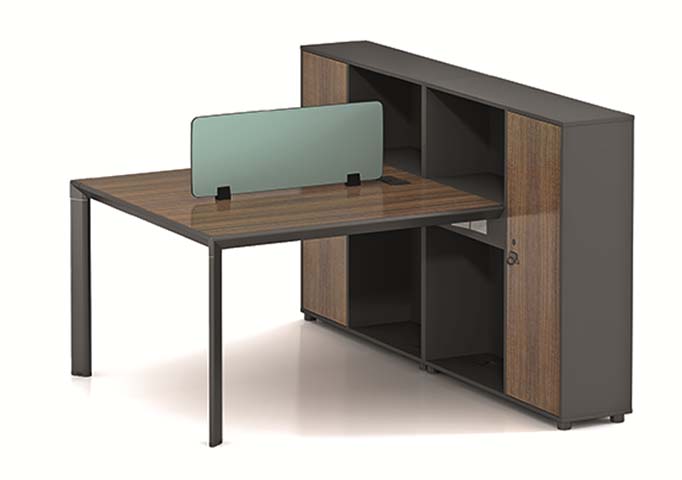

Single-Person L-Shaped Office Workstation with Integrated Back Storage Cabinet and Desk Divider (model WS-LSHP-1500-STG) is listed under Open Workstation, with overall dimensions of 1500 × 1400 × 1100 mm and main material of Particle‑board (PB). Load capacity: 100 kg. Certifications: Modular,workstation,integrated,storage,desktop,divider,cable,management. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions | 1500 x 1400 x 1100 mm | |
|---|---|---|
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Work surface static load capacity | 100 kg | |
|---|---|---|
| Total product net weight | 85 kg | |
| Work surface panel thickness | 25 mm | |
| Storage cabinet panel thickness | 18 mm | |
| Recommended maximum user weight capacity | 120 kg | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles | |
| Top Abrasion Reference | Acceptance target ≥4,000 abrasion cycles or finish-system test | |
| Recommended Procurement Warranty | Structure 5 years; hardware 3 years; finish 2 years |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Work surface and cabinet panels | 25 mm melamine-faced particleboard with walnut woodgrain finish | |
|---|---|---|
| Desk support legs and cabinet frame | Powder-coated dark grey steel square tubing | |
| Desktop privacy divider | Frosted light green acrylic panel with black ABS mounting brackets | |
| Cabinet hardware | Keyed steel cam lock, integrated adjustable plastic leveling feet | |
| Desk edge trim | Shock-resistant PVC edge banding matching panel finish | |
| Cable management grommet | Black recessed plastic cable port |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Two-tier integrated storage | Combines upper open shelves and lower mixed open/lockable compartments for office supplies | |
|---|---|---|
| Desktop privacy divider | Clip-on mounted acrylic screen defines personal work zone and reduces visual distraction | |
| Integrated cable management | Recessed desk grommet routes power and data cables from work surface to lower cabinet space | |
| Lockable storage compartment | Keyed lock on right-side cabinet door secures personal items and confidential documents |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open-plan office layouts | Provides defined personal workspace, privacy and integrated storage to reduce desk clutter for individual staff | |
|---|---|---|
| Small office or home office | Combines work surface and full storage in a compact L-shaped footprint to save floor space |
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Applicable standard for safety and strength requirements for office work tables | |
|---|---|---|
| EN 1335-1:2020 | Applicable reference standard for matching office chair dimensional compatibility |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Applicable performance standard for desk products for commercial office use |
|---|
Standards applicable to China-market projects
| GB/T 3324-2017 | Applicable standard for general technical requirements of wooden office furniture | |
|---|---|---|
| GB/T 3327-2017 | Applicable standard for physical and chemical performance requirements of furniture surfaces | |
| GB 18584-2001 | Applicable standard for formaldehyde emission limits for interior wood furniture |
This product must meet the following technical requirements: 1. GB/T 3324-2017: Applicable standard for general technical requirements of wooden office furniture; 2. GB/T 3327-2017: Applicable standard for physical and chemical performance requirements of furniture surfaces; 3. GB 18584-2001: Applicable standard for formaldehyde emission limits for interior wood furniture; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
