Automatic mm / inch conversion · Core engineering specifications
| Overall dimensions | 1806 x 1806 x 1720 mm | |
|---|---|---|
| Work surface height | 762 mm | |
| Desktop thickness | 38 mm | |
| Seated knee clearance height | 685 mm | |
| Knee clearance width | 1200 mm | |
| Knee clearance depth | 600 mm | |
| Hutch shelf height clearance | 300 mm | |
| Drawer internal dimensions | 400 x 350 x 120 mm | |
| Lower cabinet internal height | 450 mm | |
| Left support panel thickness | 38 mm | |
| Edge banding thickness | 2 mm | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
| Desktop static load capacity | 91 kg | |
|---|---|---|
| Recommended maximum user weight for seated use | 136 kg | |
| Surface scratch resistance rating | Class 2 | |
| Hinge cycle rating for cabinet door | 50000 cycles | |
| Drawer slide cycle rating | 30000 cycles | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles | |
| Top Abrasion Reference | Acceptance target ≥4,000 abrasion cycles or finish-system test | |
| Recommended Procurement Warranty | Structure 5 years; hardware 3 years; finish 2 years |
Core acceptance fields · Panels / hardware / frame / upholstery
| Desktop core material | CARB Phase II compliant particleboard core | |
|---|---|---|
| Desktop surface finish | Thermal-fused scratch-resistant melamine laminate | |
| Structural frame and dividers | Dark gray melamine-faced engineered wood | |
| Edge treatment | 2mm thick PVC edge banding on all exposed panel edges | |
| Drawer slides | Cold-rolled steel ball-bearing slides | |
| Cabinet door hinge | Concealed steel Euro-style hinge with 110-degree opening | |
| Back panel material | 3mm thick hardboard with dark gray finish | |
| Modesty panel | 18mm thick dark gray engineered wood panel | |
| Primary Panel Thickness | 25 mm; load-bearing top may use 40 mm composite build-up | |
| Edge Band Thickness | 2 mm | |
| Metal Frame Wall Thickness | 2 mm cold-rolled steel | |
| Primary Connector Specification | Reference M6-M8 with at least 2 fixing points per main support |
Adjustment / rotation / tilt / mobility / storage features

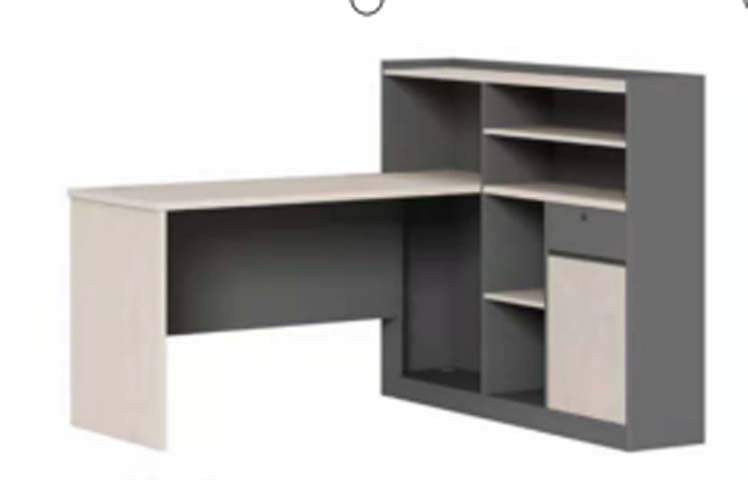

| Corner work surface configuration | 90-degree L-shaped layout with unobstructed seated knee bay | |
|---|---|---|
| Attached hutch storage | Fixed integrated hutch with 4 open upper shelves for office supplies | |
| Integrated drawer storage | 1 lockable utility drawer above lower cabinet for small office items | |
| Closed cabinet storage | 1 lower solid-door cabinet for concealed storage of files or supplies | |
| Lower open cubby storage | 2 tiered open cubbies under hutch for frequently accessed items | |
| Wall anchoring compatibility | Pre-drilled rear mounting points for tip-over restraint hardware | |
| Cable management provision | 60mm diameter rear cable pass-through at work surface corner | |
| Cable Management Capacity | Reference capacity 10power/data cables; tray load 10 kg | |
| Reference Reassembly Count | Main joints should support 5controlled assembly cycles |
Verified carton / gross weight / assembly / loading data
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
| Home office dedicated workspace | Fits standard 1.8m corner nooks for remote work and computer use | |
|---|---|---|
| Small business open-plan workstations | Suitable for entry-level employee work areas with integrated storage | |
| Student study corner | Adequate work and storage space for school supplies, books and electronics | |
| Small office reception work area | Provides behind-desk storage for administrative supplies and documents |
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office work tables safety and strength requirements, applicable for structural load validation | |
|---|---|---|
| EN 14073-2:2004 | Office storage furniture safety requirements, applicable for hutch and storage components | |
| EN 13722:2004 | Furniture hardware durability test for hinges and slides, applicable for moving parts |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk products standard for static load, stability and durability testing | |
|---|---|---|
| ANSI/BIFMA X5.9-2019 | Storage units standard for shelf, drawer and cabinet performance validation |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable for panel adhesion and dimensional stability | |
|---|---|---|
| GB/T 4893.8-2013 | Surface abrasion resistance test method for furniture finishes, applicable for desktop wear validation | |
| GB 18580-2017 | Formaldehyde emission limits for wood-based panels, required for indoor use compliance |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable for panel adhesion and dimensional stability; 2. GB/T 4893.8-2013: Surface abrasion resistance test method for furniture finishes, applicable for desktop wear validation; 3. GB 18580-2017: Formaldehyde emission limits for wood-based panels, required for indoor use compliance; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
