PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1800 × 1400 × 1100 mm
Desktop work surface height	750 mm
Single user work surface width	700 mm
Single user work surface depth	600 mm
Central privacy divider height	350 mm
Knee clearance height under desktop	650 mm
Side storage pedestal dimensions	400 x 600 x 650 mm
Desktop panel thickness	25 mm
PVC edge banding thickness	2 mm
Angled steel leg section thickness	50 mm
Cable grommet diameter	80 mm
Drawer internal usable height	150 mm
Drawer slide length	500 mm
Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Total product net weight	95 kg
Desktop static uniform load capacity	200 kg
Recommended maximum user count	2 people
Surface scratch resistance rating	Grade 3
Surface stain and heat resistance rating	Grade 3
Metal hardware salt spray resistance	18 hours
Drawer slide cycle durability	50000 cycles
Lock mechanism cycle durability	10000 cycles
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Desktop substrate	25mm E1-grade MFC particleboard
Desktop edge banding	2mm high-wear PVC edging
Support legs	1.5mm thick powder-coated matte black steel
Central privacy divider	Fabric-wrapped acoustic panel over MDF core
Pedestal cabinet body	18mm black melamine-faced MDF
Pedestal drawer fronts	18mm light wood grain melamine MDF
Pedestal top trim	18mm blue melamine MDF strip
Drawer hardware	Zinc-plated steel side-mount slides, keyed alike cam locks
Leveling feet	Injection-molded nylon with adjustable steel insert
Cable grommet	ABS plastic with brush insert
Primary Panel Thickness	25 mm; load-bearing top may use 40 mm composite build-up
Edge Band Thickness	2 mm

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Dual-user workspace partition	Central fabric divider provides 350mm high seated visual privacy
Integrated cable management	80mm diameter grommet routes monitor and device cables under desk
Lockable secure storage	Two key-locked drawers on right pedestal store personal office documents
Full-extension drawer access	500mm long slides allow full drawer pullout for easy rear item access
Integrated side support	Fixed storage pedestal acts as structural support for right desktop edge
Adjustable floor leveling	Nylon feet adjust up to 10mm to compensate for uneven office flooring
Stable angled leg structure	Splayed black steel legs increase stance width for improved lateral stability
Cable Management Capacity	Reference capacity 10power/data cables; tray load 10 kg
Reference Reassembly Count	Main joints should support 5controlled assembly cycles

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open plan office staff areas	Side-by-side dual layout fits high-density open office seating plans
Small business team workspaces	Integrated storage eliminates need for separate filing cabinets
Co-working facility hot-desking zones	Lockable drawers support shared, rotating user secure storage
Startup office open work areas	Modern mixed-tone aesthetic matches contemporary office interior design
Administrative department work zones	Standard 750mm work height compatible with all standard office task chairs

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 527-1:2011	Office worktables safety and strength requirements
EN 1335-1:2020	Office furniture workstation dimensional compatibility

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.5

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden office furniture
GB 18584-2001	Indoor decoration material formaldehyde emission limit for wood furniture

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden office furniture;
2. GB 18584-2001: Indoor decoration material formaldehyde emission limit for wood furniture;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · OFW-2P-BD-2DRW

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · OFW-2P-BD-2DRW

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · OFW-2P-BD-2DRWOpen Export Tool

Quick Actions

Post an RFQ

Product Description

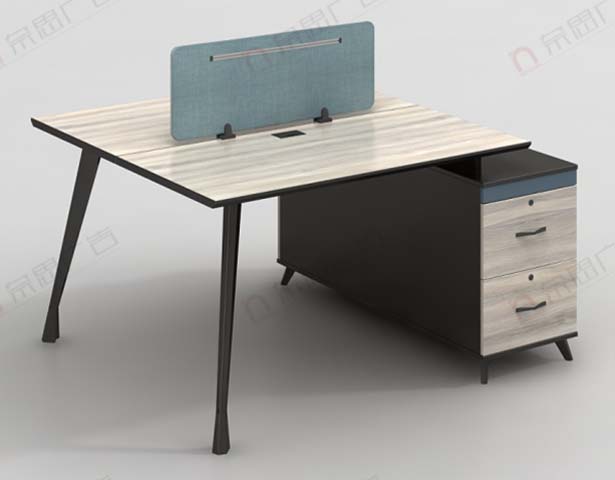

The OFW-2P-BD-2DRW 2-person side-by-side office workstation desk offers a streamlined, space-efficient dual-user solution for modern work environments, delivering a balanced blend of privacy, storage, and structural reliability without branded markup. Its visual design features a mixed-tone aesthetic that pairs a smooth melamine desktop with matte black angled steel legs, a blue fabric-wrapped central privacy divider, and a side storage pedestal with contrasting black, light wood grain, and blue trim accents, creating a contemporary look suited to a range of interior styles. The side-by-side layout positions two individual work surfaces adjacent to one another, separated by the central divider, with the storage pedestal fixed to the right edge of the desktop to support open, space-efficient footprints. Constructed for long-term office use, the 25mm thick desktop is built from E1-grade MFC particleboard, finished with durable melamine and edged with 2mm high-wear PVC to resist routine wear. Splayed 1.5mm matte black powder-coated steel legs provide widened lateral stability, while the fixed wood-based pedestal adds secondary structural support for the desktop’s right edge. Adjustable nylon leveling feet with steel inserts adapt to uneven flooring, compensating for surface irregularities. Hardware includes zinc-plated steel drawer slides rated for 50,000 open-close cycles, keyed-alike cam locks, and fasteners with 18 hours of salt spray resistance; desktop surfaces carry Grade 3 ratings for scratch, stain, and heat resistance, with a 200kg static uniform load capacity. Functional design elements prioritize day-to-day usability: the 350mm high central fabric divider delivers seated visual privacy between adjacent users, while an 80mm integrated cable grommet routes monitor and device cords beneath the work surface to reduce clutter. The right-side pedestal holds two lockable, full-extension drawers that pull completely open for easy access to items stored at the rear, providing secure space for personal documents and work supplies; this integrated storage removes the need for separate filing units. The 750mm desktop height aligns with all standard office task chairs, with 650mm of knee clearance beneath the work surface for comfortable seating. This workstation is well-suited for high-density open plan office staff zones, small business team workspaces, co-working hot-desking areas, startup open offices, and administrative department work zones. When procuring this unit, note that each set ships across multiple cartons with a total packaged gross weight of 180kg and 1m³ total packaging volume, with an 40-minute assembly time per unit. The pedestal is packed separately from the main desktop component to reduce transit damage risk. The keyed-alike lock design allows simplified key management for shared workspace deployments, and the fixed pedestal integration eliminates the need for additional support brackets during setup, reducing on-site assembly complexity.

2-Person Side-by-Side Office Workstation Desk with Blue Fabric Divider and Lockable 2-Drawer Side Pedestal Specifications
