PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1400 × 1200 × 750 mm
Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Distributed desktop static load	80 kg
Storage drawer static load	15 kg
Open shelf static load	20 kg per shelf
Pedestal cabinet static load	45 kg
Recommended user load	1 person
Product net weight	52 kg
Drawer slide cycle rating	50,000 cycles
Leveling adjustment	10 mm
Warranty target	5 years
Top Static Load Reference	150 kg uniformly distributed

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Worktop	25 mm wood-composite core with dark wood-grain melamine surface and PVC edge banding
Storage cabinet panels	18 mm grey melamine-faced composite panels with rounded outer corner and black back/lower panels
Drawer front	Dark wood-grain laminate panel with integrated recessed pull and central key lock
Internal shelf	18 mm dark melamine-faced composite shelf with edge support on both cabinet sides
Modesty panel	18 mm dark composite panel fixed below the main worktop for leg-space screening
Leg frame	Chrome-finish steel tube, 32 mm diameter, with two splayed front legs and floor-contacting feet

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Cable management	Two 60 mm round grommets route laptop and power cables through the rear worktop
Lockable drawer storage	One lockable drawer secures documents or personal items with a front key lock
Open storage bay	A side-open compartment provides immediate access to books, files, or a CPU with shelf-level separation
Right-hand support return	The storage pedestal supports the side return and forms an L-shaped work zone without an exposed outer leg

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Executive or supervisor office	Suitable for a one-person manager office because it combines a 1400 mm laptop surface with a 1200 mm side return and lockable storage
Open-plan workstation or small consultation room	Usable in compact commercial work areas where cable outlets, privacy screening, and immediate open storage are required

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 527-1:2011	Applicable standards and test results require confirmation
EN 527-2:2002+A1:2003	Applicable standards and test results require confirmation
EN 15372:2016	Applicable standards and test results require confirmation

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.5-2021	Applicable standards and test results require confirmation
ANSI/BIFMA X5.9-2019	Applicable standards and test results require confirmation
BIFMA E3-2024	Applicable standards and test results require confirmation

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2024	Applicable standards and test results require confirmation
GB/T 3325-2017	Applicable standards and test results require confirmation
GB/T 10357.1-2013	Applicable standards and test results require confirmation
GB 18580-2017	Applicable standards and test results require confirmation
GB/T 28202-2020	Applicable standards and test results require confirmation

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2024: Applicable standards and test results require confirmation;
2. GB/T 3325-2017: Applicable standards and test results require confirmation;
3. GB/T 10357.1-2013: Applicable standards and test results require confirmation;
4. GB 18580-2017: Applicable standards and test results require confirmation;
5. GB/T 28202-2020: Applicable standards and test results require confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · ED-LS-RCAB-1400-1200

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · ED-LS-RCAB-1400-1200

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · ED-LS-RCAB-1400-1200Open Export Tool

Quick Actions

Post an RFQ

Product Description

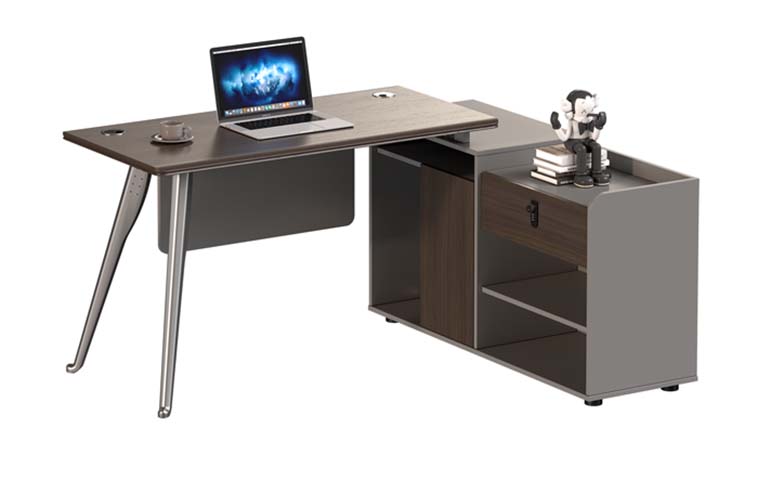

The L-Shaped Executive Workstation with Right Storage Return presents a modern, organized workspace defined by a dark wood-grain worktop, grey storage cabinet, dark modesty panel, and chrome-finish steel legs. Its L-shaped layout combines a main desk with a right-hand return, giving one user a broad laptop and writing area while keeping files, equipment, and personal items within easy reach. The storage pedestal supports the side return, creating a clean corner configuration without an exposed outer leg. Two splayed front legs add a light visual profile, while floor-contacting feet complete the contemporary silhouette. Construction balances laminate panel components with a metal support frame. The worktop uses a wood-composite core with a dark wood-grain melamine surface and PVC edge banding, finished to a substantial top thickness. Grey melamine-faced composite panels form the storage cabinet, which features a rounded outer corner and black back and lower panels. The drawer front matches the dark wood-grain finish and includes an integrated recessed pull with a central key lock. An internal dark melamine-faced shelf is supported on both cabinet sides, while the dark modesty panel beneath the main worktop provides leg-space screening. The chrome-finish steel tube frame uses splayed front legs and robust support sections. Practical features support focused daily work. Two round grommets in the rear worktop route laptop and power cables, and a cable tray helps contain wiring below the desktop. The lockable drawer secures documents or personal effects, while the side-open storage bay offers immediate access to books, files, or a CPU with shelf-level separation. Static load capacity is rated for regular desktop use, drawer storage, open shelving, and the pedestal cabinet, and the drawer slide carries a 50,000-cycle rating. This workstation is well suited to executive or supervisor offices, especially one-person manager rooms that benefit from a combined laptop surface, side return, and secured storage. It is also appropriate for compact open-plan work areas or small consultation rooms where cable outlets, privacy screening, and accessible storage are needed. In residential settings, it can serve a dedicated home office where a substantial desk and storage are required. Procurement teams should plan for assembly and delivery logistics: the product is supplied as one set across multiple cartons, with the main top and return or pedestal packed separately. Specifiers should also review finish coordination with existing furniture, confirm access for carton delivery, and allocate installation time before occupancy. The unbranded model ED-LS-RCAB-1400offers a functional executive desk solution for single-user workspaces seeking integrated storage and a clean, modern appearance.

L-Shaped Executive Workstation with Right Storage Return Specifications
