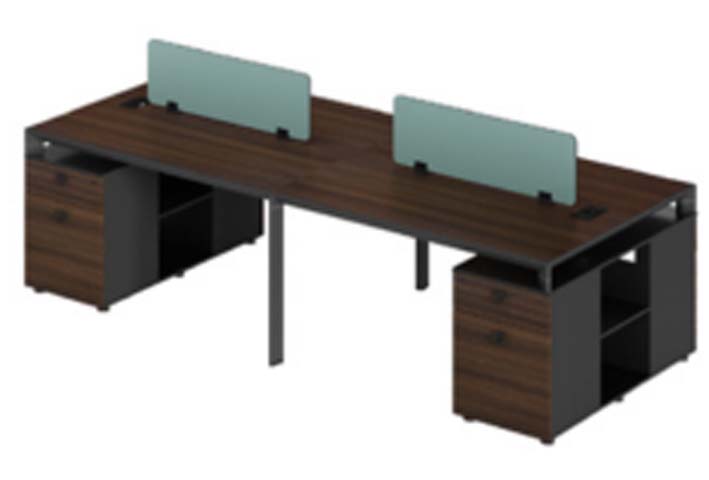

2-Person Side-by-Side Office Bench Workstation with Frosted Privacy Dividers and End Storage Pedestals (model BNK-2P-DW-2460-WS) is listed under Open Workstation, with overall dimensions of 2400 × 600 × 750 mm and main material of Particle‑board (PB). Load capacity: 113 kg per work position. Certifications: dark,wood,grain,finish,frosted,desktop,privacy,dividers,fixed,integrated,end,pedestals,metal,support,legs,cable,management,grommets. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall desk dimensions | 2400 x 600 x 750 mm | |
|---|---|---|
| Per-user work surface zone | 1200 x 600 mm | |
| Frosted privacy divider dimensions | 1100 x 300 mm | |
| Desktop thickness | 25 mm | |
| Edge band thickness | 2 mm | |
| End storage pedestal dimensions | 400 x 600 x 670 mm | |
| Pedestal drawer internal dimensions (box) | 305 x 387 x 152 mm | |
| Pedestal drawer internal dimensions (file) | 305 x 387 x 241 mm | |
| Seated knee clearance height | 673 mm | |
| Knee clearance width per user | 1000 mm | |
| Cable grommet diameter | 60 mm | |
| Support leg section | 45 x 45 mm square steel | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Desktop static load capacity | 113 kg per work position | |
|---|---|---|
| Drawer slide static load rating | 25 kg per drawer | |
| Drawer slide cycle rating | 50000 open/close cycles | |
| Total workstation net weight | 144 kg | |
| Recommended user weight capacity per position | 113 kg | |
| Laminate surface abrasion resistance | 2000 cycles | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles | |
| Top Abrasion Reference | Acceptance target ≥4,000 abrasion cycles or finish-system test |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Desktop | 25 mm E1 grade particleboard core with dark walnut thermally fused laminate finish, 2mm PVC edge banding | |
|---|---|---|
| Privacy dividers | 6 mm frosted acrylic, mounted with black plastic desk clips | |
| Support frame and legs | 1.5 mm wall thickness square steel tubing, matte black powder-coated finish | |
| Storage pedestals | 18 mm E1 grade particleboard with matching walnut drawer fronts and charcoal matte side/back panels, plastic leveling feet | |
| Drawer slides | Cold-rolled steel ball-bearing full-extension slides | |
| Cable grommets | ABS plastic, black finish, fitted to desktop cutouts |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Privacy separation | Two independent frosted dividers block seated visual distraction between adjacent users | |
|---|---|---|
| Storage configuration | Two locking two-drawer pedestals with adjacent open shelving cubbies per end of the desk | |
| Cable management | Dual desktop grommets route monitor and peripheral cables to under-desk space | |
| Floor leveling | Adjustable plastic feet on pedestal bases compensate for uneven office flooring |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open plan office work areas | Provides separated dual work positions for team seating without full partition walls | |
|---|---|---|
| Small business shared workspaces | Integrated storage eliminates need for separate mobile pedestals in tight layouts |
EU Market Access Requirements* EN Standards
| EN 527-2:2002+A1:2019 | Safety and dimensional requirements for office work tables, applicable to height and clearance specs | |
|---|---|---|
| EN 1335-2:2009 | Office furniture safety standards applicable to seated workstation strength requirements |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Standard for desk products, applicable to load, durability and stability testing | |
|---|---|---|
| ANSI/BIFMA X5.9-2019 | Standard for storage units, applicable to pedestal drawer performance |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to desktop and storage components | |
|---|---|---|
| GB/T 3327-2018 | Performance standards for office desks and workstations, applicable to structural load testing |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to desktop and storage components; 2. GB/T 3327-2018: Performance standards for office desks and workstations, applicable to structural load testing; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
