PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	2800 × 1400 × 1100 mm
Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Workstation net weight	168 kg
Distributed desktop load capacity	200 kg total
Single work-surface point load	50 kg
Pedestal drawer static load	15 kg per drawer
Number of users	4 users
Storage units	2 lockable pedestal cabinets
Drawers per pedestal	2 drawers
Locking points	2 keyed locks
Chairs accommodated	4 task chairs
Service life reference	8 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Work surfaces	25 mm light-gray engineered-wood board with matte thermally fused melamine facing
Edge banding	2 mm PVC or ABS edge banding on all work-surface edges
Divider panels	25 mm charcoal framed panels with fabric or frosted-acrylic facing
Panel support rails	Silver extruded or folded aluminum rails with desktop clamp brackets
Leg frame	40 mm powder-coated steel round tube with splayed outer legs and leveling feet
Pedestal carcass	0.8 mm steel sheet or 18 mm gray engineered-wood panels with boxed corner framing

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Privacy separation	Two low central divider screens separate four facing users while retaining sight lines over the 350 mm panels
Pedestal storage	Each paired station includes one lockable two-drawer cabinet for personal files and stationery
Cable routing path	Cables can route from devices along the central panel rail and drop behind the pedestal or modesty panel
Seating access	Users sit on both long outer sides, with open knee bays between the pedestal and angled support leg

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open office benching	Suitable for four-person team zones where low screens provide privacy while preserving collaboration space
Administrative workstation area	Appropriate for clerical, accounting, sales, or shared-service staff using laptops, monitors, and locked personal storage

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.5

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · WS4-PANEL-2PED-2800

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · WS4-PANEL-2PED-2800

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · WS4-PANEL-2PED-2800Open Export Tool

Quick Actions

Post an RFQ

Product Description

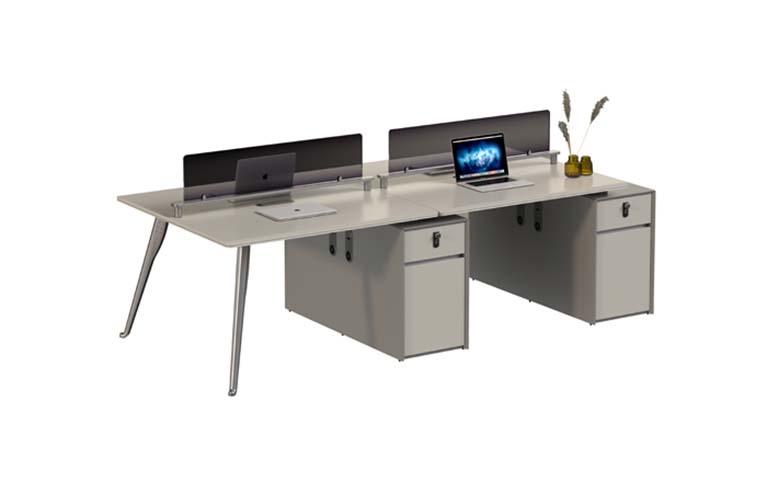

The Four-Person Panel-Based Open Office Workstation is an unbranded benching solution designed for team settings that require a balance of individual privacy and easy collaboration. Model WS4-PANEL-2PED-2800 organizes four facing users along both long outer sides, with two low central divider screens separating the work positions. At 350 mm high, the charcoal panels create visual separation while retaining sight lines over the top, preserving an open-plan feel. Its matte light-gray work surfaces and pedestal finishes are paired with silver supports, giving the workstation a restrained, commercial appearance suited to neutral office interiors. The layout includes open knee bays between each pedestal and angled support leg, providing accessible seating from both external sides. Each paired station is served by one lockable pedestal cabinet, giving the system two storage units in total. Each pedestal contains two drawers for personal files, stationery, and other work items, while the locking function supports secure individual storage in shared environments. Construction combines engineered-wood, metal, and panel-based components. Work surfaces use 25 mm light-gray engineered-wood board with a matte thermally fused melamine facing and 2 mm PVC or ABS edge banding on all exposed edges. The finished top thickness is 50 mm. Divider panels are 25 mm charcoal-framed panels with a choice of fabric or frosted-acrylic facing, mounted on silver extruded or folded aluminum rails with desktop clamp brackets. The leg frame uses 40 mm powder-coated steel round tube with splayed outer legs and leveling feet; the main support section is 80 mm with a 2 mm metal wall. Pedestal construction is either 0.8 mm steel sheet or 18 mm gray engineered-wood panels with boxed corner framing. Functional details support daily office use. The workstation provides 680 mm of knee clearance height and 900 mm of width at each main seat. Cable management includes an 80 mm diameter cable opening and a cable tray with 120 mm depth. Cables can route from devices along the central panel rail and drop behind the pedestal or modesty panel, helping reduce clutter across the desktop. Rated capacity supports normal office equipment, with a 200 kg distributed desktop load, a 50 kg single work-surface point load, and a 15 kg static load per drawer. The complete workstation has a net weight of 168 kg. This configuration is well suited to four-person team zones, administrative offices, and shared-service areas used by clerical, accounting, or sales staff working with laptops, monitors, and locked personal storage. Procurement teams should plan for delivery and installation as a packaged set, allow time for assembly, and confirm finish choices for both divider panels and pedestal construction before ordering.

Four-Person Panel-Based Open Office Workstation with Two Locking Pedestals Specifications
