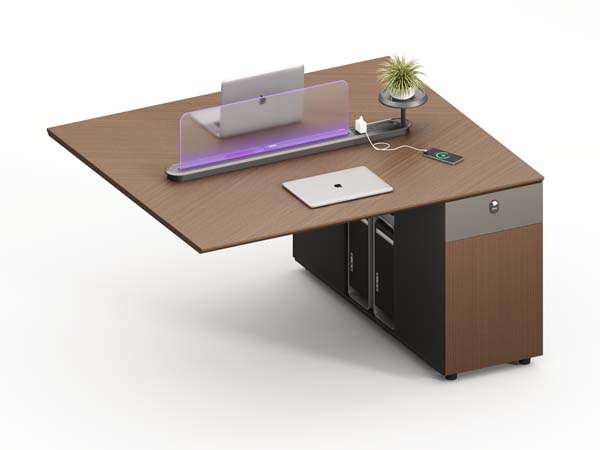

Product supplierWalnut Single-Pedestal Executive Office Desk with Integrated Power Rail, 25mm high-density MDF core with walnut wood veneer, water-based clear topcoat
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 2400 × 760 × 760 mm | |
|---|---|---|
| Overall desk dimensions | 2400 x 760 x 760 mm | |
| Desktop thickness | 65 mm | |
| Edge banding thickness | 2 mm | |
| Knee clearance height under desktop | 690 mm | |
| Knee clearance width at open side | 1600 mm | |
| Knee clearance depth from front edge | 500 mm | |
| Integrated side pedestal cabinet dimensions | 800 x 600 x 690 mm | |
| Acrylic monitor divider height above desktop | 350 mm | |
| Power rail length along desktop center | 1200 mm | |
| Cable grommet opening diameter | 60 mm | |
| Adjustable foot height range | 10 mm | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Desktop static load capacity | 150 kg | |
|---|---|---|
| Drawer slide static load rating | 45 kg | |
| Drawer slide cycle rating | 50000 cycles | |
| Cabinet hinge cycle rating | 80000 cycles | |
| Wireless charging output | 15 W | |
| Desktop surface abrasion resistance | 2000 cycles | |
| Suggested user weight capacity | 150 kg | |
| Net weight reference | 120 kg | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Desktop core and finish | 25mm high-density MDF core with walnut wood veneer, water-based clear topcoat | |
|---|---|---|
| Edge banding | Dark grey PU leather edge banding, 2mm thickness | |
| Side pedestal cabinet frame | E1 grade engineered wood panel with walnut veneer and matte black laminate side panels | |
| Pedestal drawer/door fronts | Matte black rigid thermofoil panels with integrated aluminum pulls | |
| Acrylic monitor divider | 8mm thick tinted purple transparent acrylic with rounded top edges | |
| Integrated power rail housing | Matte grey powder-coated aluminum extrusion, 2mm wall thickness | |
| Leveling feet | 10mm diameter black nylon adjustable glides with threaded steel stems | |
| Cabinet lock assembly | Zinc alloy keyed cam lock with brushed metallic faceplate | |
| Hardware components | Cold-rolled steel drawer slides and soft-close cabinet hinges | |
| Primary Panel Thickness | 25 mm; load-bearing top may use 40 mm composite build-up | |
| Edge Band Thickness | 2 mm | |
| Metal Frame Wall Thickness | 2 mm cold-rolled steel |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Lockable side storage cabinet | Key-locked enclosed storage compartment with two internal file drawers | |
|---|---|---|
| Integrated central power rail | Recessed linear power module with AC outlets, USB-A/USB-C charging ports, and divider mounting points | |
| Embedded Qi wireless charger | Flush-mounted charging pad on desktop surface with LED charge status indicator | |
| Acrylic privacy divider mount | Tool-free clamp mounting to power rail for desktop monitor privacy shield | |
| Under-desk cable management | Fixed steel cable tray under desktop to route power and data cables out of view | |
| Integrated desktop planter holder | Round raised metal shelf attached to power rail for small desk plant placement | |
| Floor leveling adjustment | Threaded adjustable feet at pedestal base to correct uneven office flooring | |
| Cantilevered support structure | Side pedestal provides full structural support, no front legs to obstruct seated leg movement | |
| Cable Management Capacity | Reference capacity 10power/data cables; tray load 10 kg | |
| Reference Reassembly Count | Main joints should support 5controlled assembly cycles |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Executive private office | Designed for director/CEO private office use with ample work and storage space | |
|---|---|---|
| Open-plan senior workstation | Suitable for senior staff open-plan positions with integrated privacy divider | |
| Conference meeting side table | Usable as a secondary presentation surface in small executive meeting rooms | |
| Home office premium workspace | Appropriate for high-end residential home office setups for remote executives | |
| Client consultation desk | Fits executive reception or consultation areas for client-facing meetings | |
| Recommended matching furniture | Pairs with high-back executive leather chair and lateral file cabinet for complete office suite |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office work tables – Part 1: Dimensions, applicable to seated work surface height | |
|---|---|---|
| EN 527-2:2016 | Office work tables – Part 2: Mechanical safety requirements | |
| EN 13722:2004 | Office furniture – Storage units, applicable to cabinet structural performance |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk Products, applicable to static load and durability testing | |
|---|---|---|
| ANSI/BIFMA X5.9-2019 | Storage Units, applicable to drawer slide and cabinet load testing |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to desk structural performance | |
|---|---|---|
| GB/T 3327-2018 | Office desks and tables, applicable to dimensional and stability requirements | |
| GB 18580-2017 | Formaldehyde emission limits for wood-based panels, applicable to MDF core materials |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to desk structural performance; 2. GB/T 3327-2018: Office desks and tables, applicable to dimensional and stability requirements; 3. GB 18580-2017: Formaldehyde emission limits for wood-based panels, applicable to MDF core materials; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
