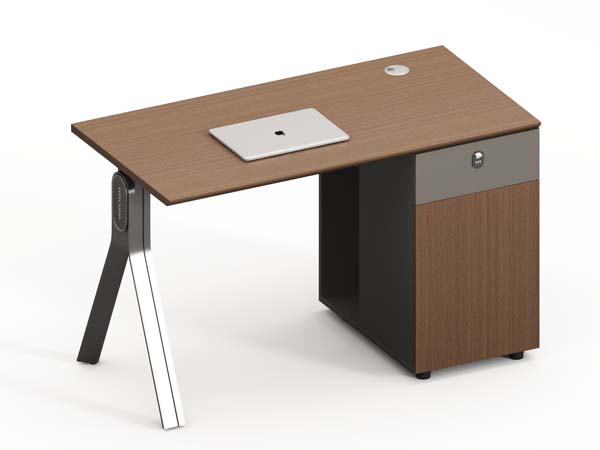

Product supplierModern Single Staff Office Desk with Right-Side Lockable Storage Pedestal, High-density particleboard, E1 grade formaldehyde emission
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 1400 × 700 × 760 mm | |
|---|---|---|
| Desktop thickness | 25 mm | |
| Knee clearance width under desk | 800 mm | |
| Knee clearance height under desk | 720 mm | |
| Right pedestal width | 600 mm | |
| Right pedestal depth | 700 mm | |
| Cable grommet diameter | 60 mm | |
| Drawer front face dimensions | 540 x 180 mm | |
| Wishbone leg splay width at floor | 450 mm | |
| Leveling foot height adjustment | 15 mm | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Net product weight | 55 kg | |
|---|---|---|
| Desktop static uniform load capacity | 100 kg | |
| Recommended user weight capacity | 136 kg | |
| Laminate surface scratch resistance | 2N | |
| Available color options | 4 | |
| Limited commercial warranty | 5 years | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles | |
| Top Abrasion Reference | Acceptance target ≥4,000 abrasion cycles or finish-system test |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Desktop core | High-density particleboard, E1 grade formaldehyde emission | |
|---|---|---|
| Desktop surface | Thermally fused walnut wood-grain laminate, scratch and stain resistant | |
| Desktop edge banding | 2mm thick PVC edge banding, impact resistant | |
| Left support leg | 1.5mm thick powder-coated steel, two-tone dark grey/white finish | |
| Pedestal frame and panels | 18mm thick laminated particleboard, dark grey side panels, walnut front panel | |
| Pedestal drawer slides | Three-section full-extension ball-bearing steel slides, silent soft-close | |
| Pedestal lock system | Keyed central lock, core-removable for rekeying | |
| Cable grommet | ABS plastic round grommet, brushed silver finish, 60mm opening | |
| Pedestal feet | Nylon leveling glides, adjustable for uneven floors | |
| Assembly hardware | Zinc-plated steel three-in-one cam lock connectors, corrosion resistant | |
| Primary Panel Thickness | 25 mm; load-bearing top may use 40 mm composite build-up | |
| Edge Band Thickness | 2 mm |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Storage configuration | 3 lockable full-extension drawers on right pedestal, including 1 hanging file drawer | |
|---|---|---|
| Cable management | Rear-right desktop grommet routes monitor/laptop power and data cables to floor | |
| Leveling adjustment | 4 adjustable pedestal feet correct up to 15mm height variance on uneven floors | |
| Assembly type | Knock-down flat-pack assembly with cam bolt hardware, no special tools required | |
| Lock operation | Central key lock secures all pedestal drawers simultaneously for office security | |
| Seated use design | Fixed 760mm desktop height aligns with standard ergonomic office chair seat heights | |
| Surface durability | Sealed laminate top resists coffee spills, pen marks, and daily office wear | |
| Cable Management Capacity | Reference capacity 10power/data cables; tray load 10 kg | |
| Reference Reassembly Count | Main joints should support 5controlled assembly cycles |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open-plan office workstations | Fits standard single-person cubicle and bench layout spacing for daily staff use | |
|---|---|---|
| Home office workspace | Provides lockable document storage for remote workers needing professional office function | |
| Small business admin stations | Suitable for reception, finance, or administrative staff requiring file storage | |
| Shared hot-desking zones | Durable laminate surface withstands frequent multi-user daily office use | |
| Temporary office fitouts | Flat-pack design enables fast deployment for project or short-term office spaces |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office worktables and desks: safety, strength and durability requirements | |
|---|---|---|
| EN 12521:2015 | Furniture: strength, durability and safety requirements for non-domestic seating-adjacent tables |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Office Desk Products standard for safety, durability, and structural performance |
|---|
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable for panel desk structural performance | |
|---|---|---|
| GB/T 1931-2009 | Method for determination of moisture content of wood, applicable for panel core moisture control | |
| GB 18584-2001 | Limit of formaldehyde emission for wooden furniture, applicable for E1 grade panel verification |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable for panel desk structural performance; 2. GB/T 1931-2009: Method for determination of moisture content of wood, applicable for panel core moisture control; 3. GB 18584-2001: Limit of formaldehyde emission for wooden furniture, applicable for E1 grade panel verification; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
