PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Life	Acceptance target 80000 cycles
Top Abrasion Reference	Acceptance target ≥4,000 abrasion cycles or finish-system test
Recommended Procurement Warranty	Structure 5 years; hardware 3 years; finish 2 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Primary Panel Thickness	25 mm; load-bearing top may use 40 mm composite build-up
Edge Band Thickness	2 mm
Metal Frame Wall Thickness	2 mm cold-rolled steel
Primary Connector Specification	Reference M6-M8 with at least 2 fixing points per main support
Reference Finish / Color Count	Recommended 6top finishes and 3frame colors

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Cable Management Capacity	Reference capacity 10power/data cables; tray load 10 kg
Reference Reassembly Count	Main joints should support 5controlled assembly cycles

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

No data is available for this section.

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.5

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · WS-OFF-2400-SC12-S

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · WS-OFF-2400-SC12-S

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · WS-OFF-2400-SC12-SOpen Export Tool

Quick Actions

Post an RFQ

Product Description

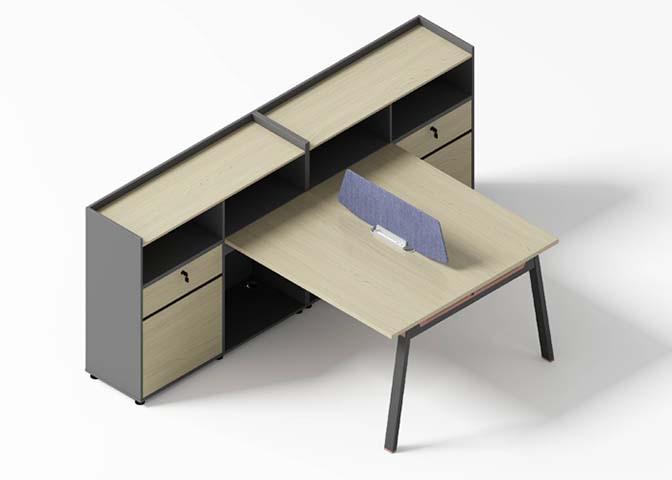

The Integrated Side-Cabinet Office Desk with Workstation Screen presents a coordinated workstation solution combining a generous work surface, built-in storage, and a visual divider in one composition. Its appearance blends light oak-look wood-based panels with dark grey composite panels, supported by charcoal powder-coated steel legs. A blue-grey fabric privacy screen gives the workstation a softer, layered boundary while supporting individual focus in shared settings. The layout pairs the main desk with an integrated side cabinet, creating distinct zones for computing, writing, and storage within a single footprint. The finished top is 50 mm thick, with primary panels specified at 25 mm and a load-bearing top potentially formed from a 40 mm composite build-up. Panel edges use 2 mm edge banding, while the main metal support section is 80 mm, made with 2 mm cold-rolled steel. Main connections reference M6 to M8 hardware, with at least two fixing points per main support. The four-leg metal frame provides a structured commercial base, and the side storage is fitted with drawer units for office materials and personal items. Practical function is supported by an 80 mm cable opening and a cable tray with 120 mm depth, offering a reference capacity for ten power or data cables and a tray load of 10 kg. Each main seat has 680 mm of knee clearance height and 900 mm of width. The top static load reference is 150 kg uniformly distributed. Drawer slides are referenced for 45 kg per pair and 50,000 cycles, while hinge opening life carries an 80,000-cycle acceptance target. The top finish has a 4,000 abrasion-cycle acceptance reference or finish-system test. This desk is suited to open-plan offices, project rooms, administrative work areas, and residential studies where a fuller workstation with privacy and storage is preferred. Finish options support specification across interiors, with six recommended top finishes and three frame colors. Procurement planning should account for the unbranded supply, coordinated replacement of finish-sensitive parts, and the recommended warranty structure of five years for structure, three years for hardware, and two years for finish. Main joints should support five controlled assembly cycles, with reference assembly time of 40 minutes per set. Packaging data varies in the supplied records between two and four cartons, with a packaged gross weight reference of 180 kg and 1 cubic meter per set, so shipment details should be confirmed at order stage.

Integrated Side-Cabinet Office Desk with Workstation Screen Specifications
