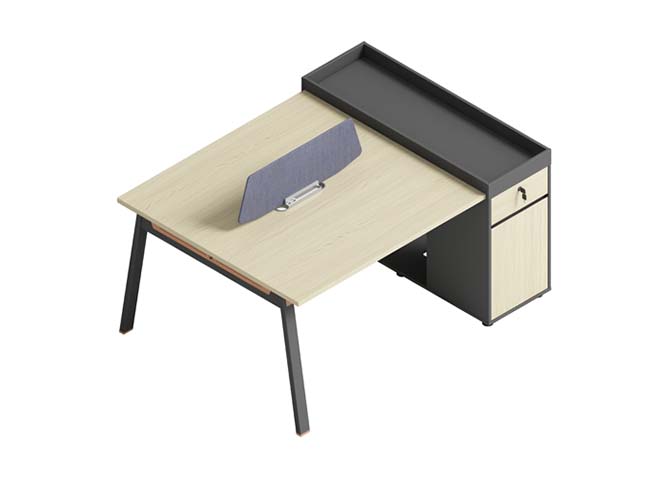

Single Workstation Desk with Integrated Pedestal, Raised Shelf and Privacy Panel (model WS-SGL-1400-PED-SP) is listed under Open Workstation. Dimensions: 1400 × 600 × 1100 mm. Materials: 25 mm melamine-faced particleboard core, sealed wood-grain face and 2 mm PVC edge banding. Load capacity: 100 kg with support under pedestal and two steel legs. Product Features: Light,maple,work,charcoal,frame,single,workstation,right-hand,pedestal,fabric,privacy,screen,raised,shelf,lockable,drawer. This page consolidates 5 groups of specifications and GB / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Brand | GENUOWA | Model | WS-SGL-1400-PED-SP |
| Finished Top Thickness | 50 mm | Effective Knee Clearance | 680 mm high and 900 mm wide per main seat |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
| Desktop distributed static load capacity | 100 kg with support under pedestal and two steel legs | Pedestal drawer slide rated load | 35 kg per drawer on full-extension side-mounted slides |
| Drawer slide operating life | 100,000 full open-and-close cycles without repair | Pedestal door hinge life | 100,000 cycles through 95 degree opening with self-closing action |
| Pedestal contents static load | 30 kg distributed over the lower compartment base | Raised shelf distributed load | 25 kg across the 1400 x 200 mm surface |
| Cable cover plate point load | 10 kg without deformation over the 60 mm port | Stability | 20 kg horizontal force at 1100 mm shelf height without overturning on level floor |
| Finish abrasion resistance | 150 cycles at 1 kg load without visible substrate exposure | Top Static Load Reference | 150 kg uniformly distributed |
| Worktop | 25 mm melamine-faced particleboard core, sealed wood-grain face and 2 mm PVC edge banding | Pedestal carcase | 18 mm melamine-faced engineered-wood panels with matching 2 mm PVC edge banding |
| Pedestal frame | 18 mm charcoal melamine-finished composite side and back panels forming a floor-supported box | Legs | 40 x 40 x 1.5 mm charcoal powder-coated square steel tubes with non-marking polymer glides |
| Support rails | 50 x 30 x 1.5 mm charcoal powder-coated rectangular steel sections fixed beneath the top | Raised shelf | 18 mm black/charcoal melamine-faced engineered-wood base with matching 150 mm solid upstand |
| Cable Management Capacity | Reference capacity 10power/data cables; tray load 10 kg | Reference Reassembly Count | Main joints should support 5controlled assembly cycles |
| Reference Package Count | 1 set / 2 cartons | Reference Assembly Time | 40 minutes per set |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | Reference Packaged Gross Weight | 180 kg/set in 4 cartons |
| Reference Packaging Volume | 1 m³/set | — | — |
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Finished Top Thickness | 50 mm | |
|---|---|---|
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Desktop distributed static load capacity | 100 kg with support under pedestal and two steel legs | |
|---|---|---|
| Pedestal drawer slide rated load | 35 kg per drawer on full-extension side-mounted slides | |
| Drawer slide operating life | 100,000 full open-and-close cycles without repair | |
| Pedestal door hinge life | 100,000 cycles through 95 degree opening with self-closing action | |
| Pedestal contents static load | 30 kg distributed over the lower compartment base | |
| Raised shelf distributed load | 25 kg across the 1400 x 200 mm surface | |
| Cable cover plate point load | 10 kg without deformation over the 60 mm port | |
| Stability | 20 kg horizontal force at 1100 mm shelf height without overturning on level floor | |
| Finish abrasion resistance | 150 cycles at 1 kg load without visible substrate exposure | |
| Top Static Load Reference | 150 kg uniformly distributed |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Worktop | 25 mm melamine-faced particleboard core, sealed wood-grain face and 2 mm PVC edge banding | |
|---|---|---|
| Pedestal carcase | 18 mm melamine-faced engineered-wood panels with matching 2 mm PVC edge banding | |
| Pedestal frame | 18 mm charcoal melamine-finished composite side and back panels forming a floor-supported box | |
| Legs | 40 x 40 x 1.5 mm charcoal powder-coated square steel tubes with non-marking polymer glides | |
| Support rails | 50 x 30 x 1.5 mm charcoal powder-coated rectangular steel sections fixed beneath the top | |
| Raised shelf | 18 mm black/charcoal melamine-faced engineered-wood base with matching 150 mm solid upstand |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Cable Management Capacity | Reference capacity 10power/data cables; tray load 10 kg | |
|---|---|---|
| Reference Reassembly Count | Main joints should support 5controlled assembly cycles |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
EU Market Access Requirements* EN Standards
US and Canada office-furniture standards
| North America procurement and testing reference | Recommended references: ANSI/BIFMA X5.5 |
|---|
Standards applicable to China-market projects
| GB/T 3324-2017 General technical requirements for wooden furniture | apply to panel dimensions, edge sealing and workmanship acceptance | |
|---|---|---|
| GB/T 3325-2017 General technical requirements for metal furniture | apply to welded or assembled steel leg and rail quality | |
| GB/T 10357.5-2011 Furniture mechanical property tests | use for desk strength and surface load acceptance | |
| GB/T 17657-2013 Test methods for wood-based panels | use for panel moisture, screw-holding and surface performance checks |
This product must meet the following technical requirements: 1. GB/T 3324-2017 General technical requirements for wooden furniture: apply to panel dimensions, edge sealing and workmanship acceptance; 2. GB/T 3325-2017 General technical requirements for metal furniture: apply to welded or assembled steel leg and rail quality; 3. GB/T 10357.5-2011 Furniture mechanical property tests: use for desk strength and surface load acceptance; 4. GB/T 17657-2013 Test methods for wood-based panels: use for panel moisture, screw-holding and surface performance checks; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
