PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1600 × 800 × 750 mm
Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Total desk net weight	65 kg
Desktop static load capacity	100 kg
Recommended single user capacity	1 person
Surface abrasion resistance	2000 cycles
Vertical leg static load rating	120 kg per leg
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Life	Acceptance target 80000 cycles
Top Abrasion Reference	Acceptance target ≥4,000 abrasion cycles or finish-system test
Recommended Procurement Warranty	Structure 5 years; hardware 3 years; finish 2 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Desktop surface	Walnut-look melamine faced MDF panel
Storage pedestal body	Matte grey melamine faced particleboard
Support legs	Powder-coated angled steel tube
Pedestal base glides	Nylon height-adjustable floor glides
Desktop privacy screen	Matte grey metal composite panel
Drawer lock	Zinc alloy keyed cam lock
Edge banding	2mm thick PVC edge trim
Primary Panel Thickness	25 mm; load-bearing top may use 40 mm composite build-up
Edge Band Thickness	2 mm
Metal Frame Wall Thickness	2 mm cold-rolled steel
Primary Connector Specification	Reference M6-M8 with at least 2 fixing points per main support
Reference Finish / Color Count	Recommended 6top finishes and 3frame colors

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Lockable storage drawer	Keyed lock on upper pedestal drawer secures personal office items
Recessed CPU storage bay	Side compartment in pedestal holds mid-tower desktop computer off floor
Desktop privacy divider	Mounted screen reduces visual distraction between adjacent workstations
Cable management access	Recessed desk grommet routes power and data cables under work surface
Fixed pedestal support	Integrated storage cabinet acts as left-side structural desk support
Angled leg stability design	Splayed right steel leg resists lateral wobble during regular office use
Cable Management Capacity	Reference capacity 10power/data cables; tray load 10 kg
Reference Reassembly Count	Main joints should support 5controlled assembly cycles

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Private executive office	Suitable for manager or supervisor individual workspace with integrated storage
Open plan workstation cluster	Privacy screen supports use in partitioned team office layouts
Home office premium setup	Works for dedicated professional home workspaces requiring document storage
Small business meeting workspace	Can serve as secondary writing surface for one-on-one office meetings
Commercial co-working dedicated desk	Durable construction supports long-term rental workspace use

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

Office desk stability	EN 527:2002+A1:2019
Work surface dimension requirement	EN 527:2011

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.5

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

Desk structural safety	GB/T 3324
Surface panel formaldehyde emission	GB 18580
Hardware durability performance	GB/T 10357.1

Standardized tender description text

This product must meet the following technical requirements:
1. Desk structural safety: GB/T 3324;
2. Surface panel formaldehyde emission: GB 18580;
3. Hardware durability performance: GB/T 10357.1;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · OFDSK-1600SMG

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · OFDSK-1600SMG

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · OFDSK-1600SMGOpen Export Tool

Quick Actions

Post an RFQ

Product Description

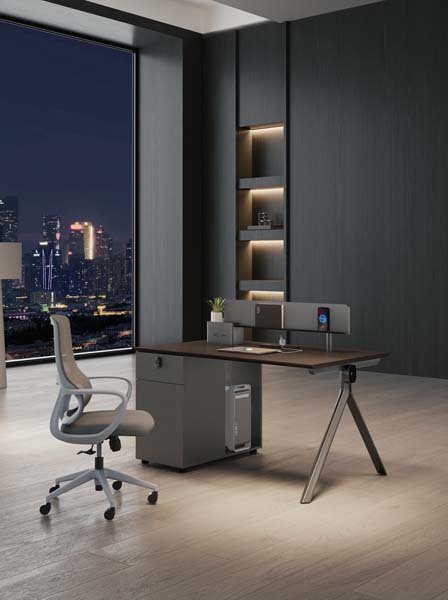

The Single Pedestal Manager Office Desk with Privacy Screen, model OFDSK-1600SMG, is an unbranded executive office desk designed for professional workspace demands. Its visual form features a distinct two-tone finish, with a warm walnut-look melamine desktop paired with matte grey pedestal and privacy screen elements, creating a polished, modern silhouette suited to formal and flexible work environments alike. The layout integrates a fixed left-side storage pedestal as structural support, balanced by a splayed, angled steel leg on the right for an open, stable base, with a matte grey metal composite privacy screen mounted along the work surface to define personal space without enclosing the user. Construction combines durable, office-grade materials selected for regular long-term use. The desktop is built from melamine-faced MDF finished with 2mm thick PVC edge trim, with a composite load-bearing build-up of 40mm and an overall finished top thickness of 50mm. The angled support legs are powder-coated steel tubes with an 80mm main section and 2mm metal wall, fitted with nylon height-adjustable floor glides to accommodate uneven flooring. The fixed pedestal is constructed from matte grey melamine-faced particleboard, fitted with a zinc alloy keyed cam lock on the upper drawer, and incorporates a recessed side CPU storage bay. The mounted metal privacy screen matches the pedestal’s matte grey finish for cohesive styling. Functional features are tailored to daily office workflows. The lockable upper drawer secures personal items and confidential documents, while the dedicated recessed CPU bay keeps mid-tower desktop computers elevated off the floor to reduce dust buildup and free up leg room. An 80mm diameter recessed cable grommet routes cords to a built-in cable tray that holds up to 10 power or data cables, keeping work surfaces free of tangled wiring. The angled right leg resists lateral wobble during regular use, and the desk supports a 150kg uniformly distributed static load across the top, with 120kg vertical load capacity per leg and 45kg load capacity per drawer slide rated for 50,000 open/close cycles. The privacy screen reduces visual distraction between adjacent work positions, while 680mm high, 900mm wide knee clearance per main seat supports comfortable extended use for a single user. This desk fits a wide range of professional spaces, including private executive offices for managers and supervisors, partitioned open-plan workstation clusters, premium dedicated home offices, secondary one-on-one meeting work surfaces in small business settings, and dedicated desks in commercial co-working facilities. For procurement, note that each unit ships across 4 cartons with a total packaged gross weight of 180kg and 1 cubic meter packaging volume, requiring 40 minutes of assembly per set. The surface abrasion resistance is rated for 2000 cycles, making it suited for high-traffic, long-term workspace deployments.

Single Pedestal Manager Office Desk with Privacy Screen Specifications
