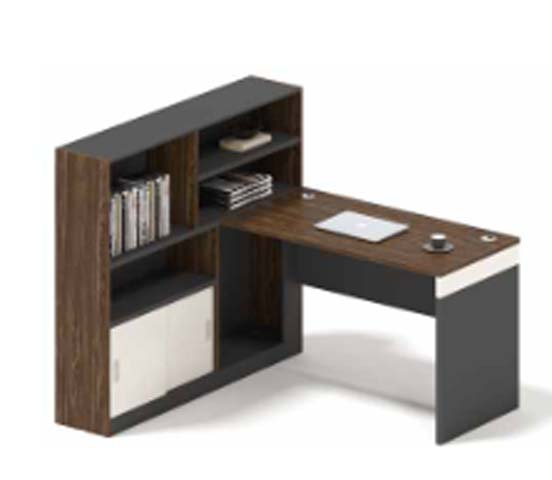

Two-Tone L-Shaped Office Desk with Integrated Bookshelf Hutch (model LSH-DESK-160120-WN) is listed under Open Workstation, with overall dimensions of 1600 × 1200 × 1750 mm and main material of Particle‑board (PB). Load capacity: 91 kg. Certifications: Two-tone,walnut/dark,gray/white,finish,L-shaped,layout,integrated,open,shelving,lower,closed,cabinet,panel,leg,support,cable,grommets. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions | 1600 x 1200 x 1750 mm | |
|---|---|---|
| Work surface height | 760 mm | |
| Main desk work surface size | 1200 x 600 mm | |
| Return shelf unit width | 1200 mm | |
| Shelf unit depth | 300 mm | |
| Open shelf compartment height | 350 mm | |
| Lower cabinet internal height | 400 mm | |
| Desktop thickness | 25 mm | |
| Edge band thickness | 2 mm | |
| Support panel wall thickness | 18 mm | |
| Seated knee clearance width | 700 mm | |
| Seated knee clearance height | 600 mm | |
| Cable grommet diameter | 60 mm | |
| Cabinet door height | 400 mm | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Desktop static load capacity | 91 kg | |
|---|---|---|
| Open shelf static load per level | 23 kg | |
| Lower cabinet shelf static load | 23 kg | |
| Product net weight | 70 kg | |
| Recommended maximum user weight for desk use | 136 kg | |
| Surface abrasion resistance | 2000 cycles | |
| Wall anchor pull-out resistance | 50 kg | |
| Warranty period | 6 years | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Desktop surface | Walnut woodgrain high-pressure laminate over engineered wood core | |
|---|---|---|
| Desk support panels | Matte dark gray laminated particleboard with 2mm PVC edge banding | |
| Cabinet doors | Matte white laminated MDF with integrated finger pulls | |
| Shelf structure | 18mm thick laminated engineered wood shelves and cabinet sides | |
| Hardware | Zinc-plated steel cam locks, confirmat screws, and cabinet hinges | |
| Cable grommets | ABS plastic circular wire management grommets |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Cable management | Three desktop grommets route power/data cables from work surface to floor | |
|---|---|---|
| Storage configuration | Three open upper shelves, one lower double-door enclosed cabinet | |
| Assembly structure | Flat-pack cam-lock assembly with pre-drilled holes, wall anchor included | |
| Tip-over prevention | Wall anchor bracket secures tall hutch unit to wall studs |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Home office workspace | Fits compact corner spaces for remote work and study, with integrated storage for books and supplies | |
|---|---|---|
| Small private office | Provides dedicated work surface and document storage for individual workstation use |
EU Market Access Requirements* EN Standards
| EN 12521:2015 | Furniture strength, durability and safety for domestic desks, applicable for home office use | |
|---|---|---|
| EN 14749:2016 | Safety requirements for domestic storage units including desk hutches |
US and Canada office-furniture standards
| ANSI/BIFMA X6.5-2022 | American National Standard for home office desks, strength and durability guidance |
|---|
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to desk and storage components | |
|---|---|---|
| GB/T 4897.3-2015 | Particleboard specifications for furniture-grade structural panels |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to desk and storage components; 2. GB/T 4897.3-2015: Particleboard specifications for furniture-grade structural panels; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
