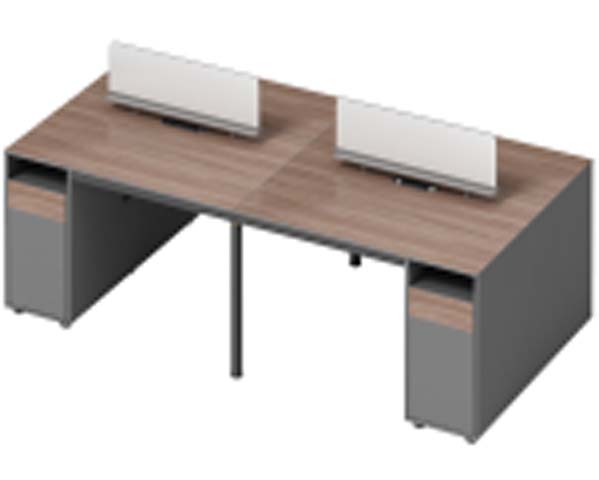

2-Person Back-to-Back Bench Office Workstation with Privacy Dividers and Mobile Caster Pedestals (model BBWS-2P-1830GY-OAK) is listed under Open Workstation, with overall dimensions of 1830 × 1240 × 760 mm and main material of Particle‑board (PB). Load capacity: 113 kg. Certifications: Modern,style,back-to-back,2-station,layout,mobile,storage,desktop,privacy,screen. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall workstation footprint | 1830 x 1240 x 760 mm | |
|---|---|---|
| Single user work surface size | 1830 x 610 mm | |
| Worktop thickness | 38 mm | |
| Desktop privacy panel height | 350 mm | |
| Privacy panel thickness | 35 mm | |
| Under-desk knee clearance height | 670 mm | |
| Mobile storage pedestal dimensions | 400 x 550 x 700 mm | |
| Central support leg diameter | 45 mm | |
| Mobile pedestal caster diameter | 51 mm | |
| Cable grommet diameter | 60 mm | |
| Edge banding thickness | 3 mm | |
| File drawer internal dimensions | 305 x 387 x 241 mm | |
| Box drawer internal dimensions | 305 x 387 x 152 mm | |
| Leveling foot adjustment range | 15 mm | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Total worktop static load capacity | 113 kg | |
|---|---|---|
| Drawer slide cycle rating | 50000 cycles | |
| Pedestal caster rolling cycle rating | 40000 cycles | |
| Worktop surface abrasion resistance | 2000 cycles | |
| Total unit net weight | 163 kg | |
| Ganging bracket connection load | 90 kg | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles | |
| Top Abrasion Reference | Acceptance target ≥4,000 abrasion cycles or finish-system test |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Worktop core and surface | Particle board core with thermally fused oak-grain laminate | |
|---|---|---|
| Desk frame and support leg | Powder-coated dark grey square tubular steel | |
| Storage pedestal construction | Engineered wood cabinet with matching laminate drawer fronts | |
| Desktop privacy dividers | Matte light grey PET acoustic panel with grey edge trim | |
| Edge protection | 3mm thick impact-resistant PVC edge banding on all worktop edges | |
| Pedestal hardware and casters | Steel drawer slides, keyed lock cores, dual-locking nylon swivel casters |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Modular ganging capability | Pre-drilled connection brackets to link additional bench units for longer open-plan runs | |
|---|---|---|
| Mobile storage lock | Single keyed lock secures both pedestal drawers, includes 2 keys per unit | |
| Caster locking mechanism | 2 locking casters per pedestal to fix storage position during use | |
| Cable management | 60mm diameter grommets at each work zone for routing power and data cables |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open plan office layouts | Designed for dual seated staff in shared work zones with central visual privacy | |
|---|---|---|
| Startups and corporate work floors | Modular design supports flexible workspace expansion and reconfiguration |
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office work tables: safety and strength requirements for commercial desk systems | |
|---|---|---|
| EN 527-2:2019 | Office work tables: dimensional requirements for seated work positions | |
| EN 1335-2:2018 | Office furniture stability requirements applicable to desk and pedestal assembly |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk products standard for strength, durability, and structural stability | |
|---|---|---|
| ANSI/BIFMA X5.9-2019 | Storage units standard applicable to mobile castered pedestals and drawer performance |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to desk cabinet components | |
|---|---|---|
| GB/T 3327-2016 | Performance test standards for office desks and tables, applicable to worktop and frame strength | |
| GB/T 10357.1-2013 | Furniture mechanical performance test for tables, applicable to static load and stability testing |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to desk cabinet components; 2. GB/T 3327-2016: Performance test standards for office desks and tables, applicable to worktop and frame strength; 3. GB/T 10357.1-2013: Furniture mechanical performance test for tables, applicable to static load and stability testing; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
