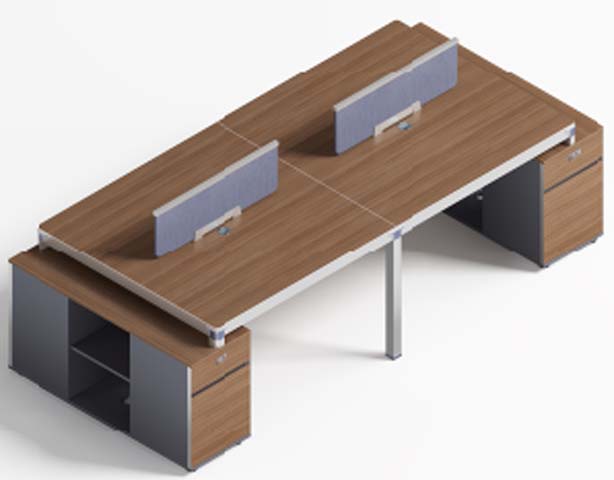

Four-Person Back-to-Back Workstation with Central Screens and End Storage Pedestals (model WS4-B2B-WALNUT-2800-1200) is listed under Open Workstation. Dimensions: 2800 × 1200 × 1100 mm. Materials: 25 mm engineered-wood board with walnut woodgrain laminate and 2 mm matching edge banding. Load capacity: 80 kg per workplace. Product Features: Four-seat,workstation,back-to-back,layout,privacy,screens,fixed,steel,legs,integrated,end,pedestals,laminate,top,fabric,screen,panels. This page consolidates 6 groups of specifications and ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Brand | GENUOWA | Model | WS4-B2B-WALNUT-2800-1200 |
| Finished Top Thickness | 50 mm | Effective Knee Clearance | 680 mm high and 900 mm wide per main seat |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
| Product net weight | 168 kg | Distributed work-surface load | 80 kg per workplace |
| Pedestal drawer load per drawer | 25 kg | Number of occupants | 4 users |
| Assembly time per four-person module | 90 minutes | Design service life target | 8 years |
| Surface impact and abrasion acceptance target | 30,000 abrasion cycles | Color/finish options | 3 finish groups |
| Warranty duration | 5 years | Top Static Load Reference | 150 kg uniformly distributed |
| Work surfaces | 25 mm engineered-wood board with walnut woodgrain laminate and 2 mm matching edge banding | Divider panels | 32 mm panel core upholstered in gray woven fabric with light edge trim |
| Support frame | Silver powder-coated rectangular steel legs with a perimeter steel under-top beam | End pedestals | Graphite-gray carcass with walnut-look drawer fronts and black recessed side panels |
| Drawer hardware | Side-mounted ball-bearing drawer slides with integrated recessed pull channels | Cable management fittings | Plastic desktop grommets with removable covers and an under-top horizontal cable route |
| Back-to-back four-user configuration | Four separate 1400 x 600 mm workplaces share one central 2800 mm bench while users face opposite directions | Privacy and visual division | Two upholstered 1100 x 350 mm screens separate facing users and reduce direct sight lines without blocking room visibility |
| Integrated personal storage | One mobile two-drawer pedestal supports each end workplace and provides under-desk storage for two occupants | Cable routing | Desktop grommets at each screen feed monitor and power cables into the under-top beam route |
| Total gross weight | 190 kg | Reference Package Count | 1 set / 2 cartons |
| Reference Assembly Time | 40 minutes per set | Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | Reference Packaging Volume | 1 m³/set |
| Open-plan office zone | Suitable for four employees in call centers, admin teams or project areas because the shared bench minimizes footprint while retaining individual screens and storage | Procurement configuration | Use as a repeatable cluster module; multiple units can be arranged in rows, with independent mobile pedestals allowing later reallocation |
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Finished Top Thickness | 50 mm | |
|---|---|---|
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Product net weight | 168 kg | |
|---|---|---|
| Distributed work-surface load | 80 kg per workplace | |
| Pedestal drawer load per drawer | 25 kg | |
| Number of occupants | 4 users | |
| Assembly time per four-person module | 90 minutes | |
| Design service life target | 8 years | |
| Surface impact and abrasion acceptance target | 30,000 abrasion cycles | |
| Color/finish options | 3 finish groups | |
| Warranty duration | 5 years | |
| Top Static Load Reference | 150 kg uniformly distributed |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Work surfaces | 25 mm engineered-wood board with walnut woodgrain laminate and 2 mm matching edge banding | |
|---|---|---|
| Divider panels | 32 mm panel core upholstered in gray woven fabric with light edge trim | |
| Support frame | Silver powder-coated rectangular steel legs with a perimeter steel under-top beam | |
| End pedestals | Graphite-gray carcass with walnut-look drawer fronts and black recessed side panels | |
| Drawer hardware | Side-mounted ball-bearing drawer slides with integrated recessed pull channels | |
| Cable management fittings | Plastic desktop grommets with removable covers and an under-top horizontal cable route |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Back-to-back four-user configuration | Four separate 1400 x 600 mm workplaces share one central 2800 mm bench while users face opposite directions | |
|---|---|---|
| Privacy and visual division | Two upholstered 1100 x 350 mm screens separate facing users and reduce direct sight lines without blocking room visibility | |
| Integrated personal storage | One mobile two-drawer pedestal supports each end workplace and provides under-desk storage for two occupants | |
| Cable routing | Desktop grommets at each screen feed monitor and power cables into the under-top beam route |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Total gross weight | 190 kg | |
|---|---|---|
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open-plan office zone | Suitable for four employees in call centers, admin teams or project areas because the shared bench minimizes footprint while retaining individual screens and storage | |
|---|---|---|
| Procurement configuration | Use as a repeatable cluster module; multiple units can be arranged in rows, with independent mobile pedestals allowing later reallocation |
EU Market Access Requirements* EN Standards
US and Canada office-furniture standards
| North America procurement and testing reference | Recommended references: ANSI/BIFMA X5.5 |
|---|
Standards applicable to China-market projects
This product must meet the following technical requirements: 1. Technical standards and test reports must be supplied during tender or purchase confirmation; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
Export data is generated from the current published product record.
Directly download an English report in metric or imperial units.
Download all product information and parameter modules in English.
English title, specifications, materials, standards and purchasing fields.
Prepare customs description, material, usage, dimensions and declaration elements.
