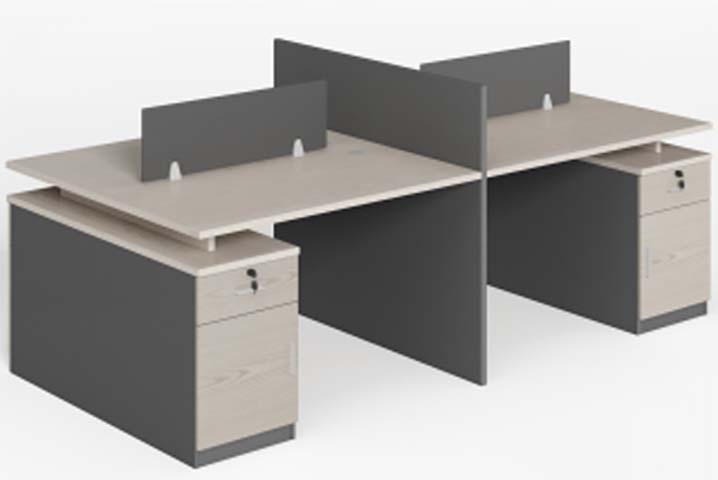

Product supplier2x2 4-Person Cross-Divider Office Cubicle Workstation Cluster with Fixed Lockable Pedestals, E1 grade particle board
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 2840 × 2840 × 1100 mm | |
|---|---|---|
| Overall assembled cluster footprint | 2840 x 2840 x 1100 mm | |
| Standard work surface height from floor | 750 mm | |
| Individual workstation usable work surface size | 1400 x 600 mm | |
| Privacy divider height above work surface | 350 mm | |
| Privacy divider panel thickness | 40 mm | |
| Under-desk seated knee clearance height | 650 mm | |
| Under-desk knee clearance depth | 450 mm | |
| Work surface board thickness | 25 mm | |
| PVC edge banding thickness | 2 mm | |
| Modesty panel height from floor | 700 mm | |
| Primary Component Thickness | 40 mm according to load-bearing role | |
| Hardware / Moving-part Clearance | 5 mm operating clearance |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Total static load capacity for full workstation cluster | 300 kg | |
|---|---|---|
| Recommended maximum user count | 4 users | |
| Work surface surface abrasion resistance | 2000 cycles | |
| Product limited warranty period | 5 years | |
| Leveling foot adjustment range | 15 mm | |
| Reference Static Load | 150 kg depending on category | |
| Moving-part Durability Reference | Acceptance target 50000 cycles | |
| Recommended Procurement Warranty | Structure 5 years; hardware 3 years |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Work surface substrate | E1 grade particle board | |
|---|---|---|
| Work surface finish | 0.6 mm fireproof melamine laminate | |
| Work surface edge banding | 2 mm thick PVC edging | |
| Privacy divider panel core | 1.0 mm thick powder-coated steel panel | |
| Divider support frame | 1.2 mm wall thickness aluminum alloy | |
| Pedestal side and modesty panels | 18 mm thick melamine particle board | |
| Drawer fronts | 18 mm thick melamine particle board | |
| Drawer hardware | Full-extension ball bearing drawer slides | |
| Base leveling feet | Nylon and steel adjustable feet | |
| Primary Connector Specification | Reference M6-M10 with at least 2 fixing points at major joints | |
| Reference Finish / Color Count | Recommended 6finish options |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Cross-shaped privacy divider system | Four 350mm high partitions separate individual workstations to block seated line of sight | |
|---|---|---|
| Integrated fixed lockable pedestals | Two-drawer lockable cabinets at each outer corner provide dedicated personal file storage | |
| Work surface cable management | Round cable grommets route power and data cables from desktop devices to under-desk raceways | |
| Adjustable floor leveling system | Threaded nylon feet at each base point adjust 15mm to stabilize the unit on uneven floors | |
| Under-desk modesty panels | Full-height panels on inner sides block seated leg visibility between adjacent users | |
| Knock-down assembly design | Cam-lock and bolted connections enable on-site assembly without specialized welding tools | |
| Work surface overhang design | 150mm front overhang provides clearance for seated user thighs against pedestal fronts | |
| Lockable storage pedestal dimensions | 400 x 600 x 700 mm | |
| Reference Adjustment / Operating Range | 100 mm or 120° where applicable |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Packaging Volume | 0.8 m³/set | |
| Reference Packaged Gross Weight | 120 kg/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open plan office staff work areas | 4 dedicated separated stations for administrative, customer service or data entry teams | |
|---|---|---|
| Small business and startup office spaces | All-in-one clustered design eliminates need for separate desk and storage purchases | |
| Government and institutional work floors | Standard commercial grade construction meets public sector office durability requirements | |
| Temporary project team spaces | Modular knock-down design allows reconfiguration or relocation as team sizes change |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office worktables safety and strength requirements, applicable for worktop load testing | |
|---|---|---|
| EN 1335-1:2020 | Office furniture ergonomic dimensions for seated work, applicable for clearance verification | |
| EN 14073-2:2004 | Office storage furniture safety requirements, applicable for drawer pedestal strength testing |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk products standard for safety, durability and structural performance | |
|---|---|---|
| ANSI/BIFMA X5.9-2019 | Storage units standard for drawer cycle and load performance | |
| ANSI/BIFMA e3-2019 | Furniture sustainability standard for material emissions and corporate responsibility |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable for worktop and panel structural performance | |
|---|---|---|
| GB/T 3327-2016 | Office furniture general specification for desks and workstations, applicable for dimensional and stability checks | |
| GB 18580-2017 | Formaldehyde emission limits for wood-based panels, applicable for E1 grade substrate verification | |
| GB/T 4897.3-2015 | Particle board for furniture use, applicable for work surface substrate quality verification |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable for worktop and panel structural performance; 2. GB/T 3327-2016: Office furniture general specification for desks and workstations, applicable for dimensional and stability checks; 3. GB 18580-2017: Formaldehyde emission limits for wood-based panels, applicable for E1 grade substrate verification; 4. GB/T 4897.3-2015: Particle board for furniture use, applicable for work surface substrate quality verification; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
