PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1800 × 1400 × 1350 mm
Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Recommended uniform desktop load	80 kg
Storage shelf load	20 kg per shelf
Drawer load	15 kg
Lower cabinet shelf load	25 kg
CPU bay maximum equipment width	280 mm
Recommended user weight environment	Single seated user
Product net weight	72 kg
Panel fastener pull-over reference	70 kg
Metal leg vertical static reference	120 kg per leg
Top Static Load Reference	150 kg uniformly distributed

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Desktop and wood fronts	25 mm wood-grain melamine-faced particleboard with PVC edge banding
Grey cabinet carcass	18 mm grey melamine-faced panel with rounded exposed outer corners
Back and privacy panel	18 mm black or dark-grey rigid panel below the desktop
Support legs	Two polished chrome or silver powder-coated steel tube legs with curved floor ends
Cabinet base support	Rectangular panel plinth with four black circular plastic or nylon levelling glides
Hardware	Metal cam locks, hinges, drawer lock and slide assembly; barrel-type lock visible on drawer front

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Integrated storage layout	Right return combines two upper open shelves, one CPU bay, one lockable drawer and one lower door cabinet
Cable routing	Two 60 mm desk grommets allow monitor, laptop and charging cables to pass below the work surface
Computer equipment storage	Left lower open compartment accommodates a tower CPU with front and side access for power and ventilation slots
Seated privacy screen	Rear modesty panel blocks the underside of the desk and supports cable concealment

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Private office workstation	Suits managers or administrative staff needing a laptop work area plus immediate file, CPU and display storage

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.5

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · WS-L1800-SC

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · WS-L1800-SC

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · WS-L1800-SCOpen Export Tool

Quick Actions

Post an RFQ

Product Description

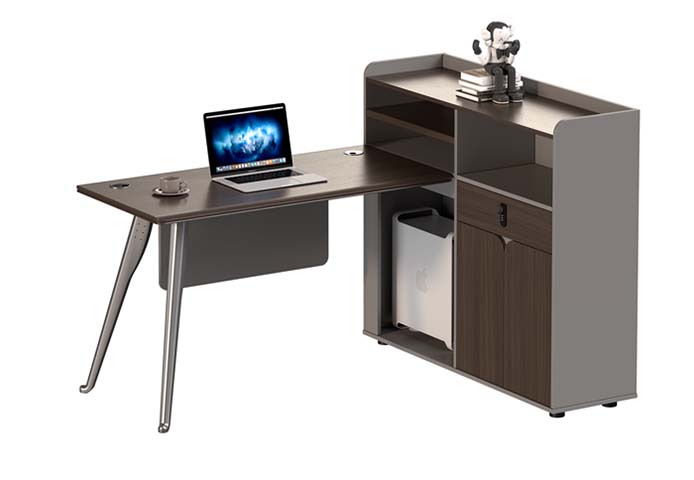

The L-Shaped Workstation Desk with Integrated Storage Hutch and Cabinet, model WS-L1800-SC, is an unbranded office desk designed for a single seated user. Its modern L-shaped layout creates a generous main work surface with a right-hand return, placing storage and computer equipment within easy reach. Wood-grain melamine surfaces and fronts are paired with grey panel sides, a black or dark-grey rear modesty panel, and polished chrome or silver powder-coated steel legs, giving the workstation a balanced commercial appearance that suits both contemporary and conventional office interiors. The desk top and wood fronts use 25 mm wood-grain melamine-faced particleboard with PVC edge banding, while the finished top thickness is 50 mm. Grey cabinet components use 18 mm melamine-faced panel with rounded exposed outer corners, and the rear privacy panel is an 18 mm rigid panel beneath the desktop. Two tubular steel legs feature curved floor ends, with an 80 mm main section and 2 mm metal wall. The cabinet rests on a rectangular panel plinth with four black circular plastic or nylon levelling glides. Hardware includes metal cam locks, hinges, a drawer lock, and a slide assembly, with a barrel-type lock visible on the drawer front. Storage is integrated directly into the right return. The arrangement includes two upper open shelves, a CPU bay, a lockable drawer, and a lower door cabinet. A separate left lower open compartment accommodates a tower CPU, with front and side access for power and ventilation. The layout supports immediate access to files, computer equipment, and daily work items without requiring a separate mobile pedestal. The rear modesty panel screens the underside of the desk and helps conceal cabling, while desk grommets allow monitor, laptop, and charging cables to pass below the surface. A cable tray is included beneath the work area. This workstation is well suited to private offices, manager rooms, administrative workspaces, and residential studies where one person needs a laptop or desktop computing area with display, file, and CPU storage in one coordinated unit. The recommended uniform desktop load is 80 kg, with rated shelf, drawer, and lower cabinet storage capacities to guide orderly use. The CPU bay accepts equipment up to 280 mm in width. Each main seat position provides 680 mm high and 900 mm wide knee clearance. Procurement planning should account for panel construction, metal support legs, integrated cabinetry, and assembly rather than purchase as a simple flat desk. The product is supplied as a set in multiple cartons, with a stated reference assembly time of 40 minutes per set. Buyers should also confirm finish availability, delivery handling, site access, and assembly support, as the set has substantial packaged weight and volume. Its combined work surface, privacy panel, locking drawer, cable management, and equipment storage make it a practical choice where desk and storage functions need to be consolidated in a single footprint.
