PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Distributed desktop static load	100 kg
Pedestal top/support load	40 kg
Drawer load per drawer	15 kg
Open shelf load	10 kg
Recommended users	2 persons
Product net weight	68 kg
Pedestal mobile-file capacity	60 standard suspension files
Hardware durability target	50,000 drawer cycles
Edge impact resistance	2 mm PVC edge banding
Top Static Load Reference	150 kg uniformly distributed

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Work surface	25 mm melamine-faced particleboard with sealed PVC edge banding
Central divider	22 mm framed textured panel with woven or perforated grey face
Support legs	50 mm round white powder-coated steel legs with dark end caps
Under-top rail	Grey powder-coated metal beam linking legs and worktops
Pedestal carcass	18 mm melamine-faced engineered-wood panels in grey finish
Drawer and shelf hardware	Ball-bearing drawer slides, adjustable leveling feet and black base glides

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Central cable routing	60 mm circular grommet feeds cables into the grey service channel for shared power and data access
Privacy division	350 mm high central screen separates the two seated users while maintaining sight lines over the panel
Integrated storage support	Right pedestal combines two drawer fronts with an open under-desk shelf and supports the worktop corner
Floor leveling	Black adjustable glides at the cabinet and leg bases compensate for uneven office flooring

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan office bench layout	Suits two-person shared work zones where a compact divider, cable port and personal pedestal reduce desktop clutter
Project and administrative work areas	Appropriate for computer-based staff requiring drawer storage, open shelf access and a 750 mm fixed writing height

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

Office furniture safety	EN 527:2011
Office desk mechanical testing	EN 527:2014
Formaldehyde emissions	EN 13986:2004+A1:2015

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

Desk and table safety	ANSI/BIFMA X2021
Storage pedestal safety	ANSI/BIFMA X2019(R2019)

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

Desk structural safety	GB/T 3324
Formaldehyde emission	GB 18580
Office furniture safety	GB/T 38607

Standardized tender description text

This product must meet the following technical requirements:
1. Desk structural safety: GB/T 3324;
2. Formaldehyde emission: GB 18580;
3. Office furniture safety: GB/T 38607;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · WS2-DIV-PED-1200

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · WS2-DIV-PED-1200

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · WS2-DIV-PED-1200Open Export Tool

Quick Actions

Post an RFQ

Product Description

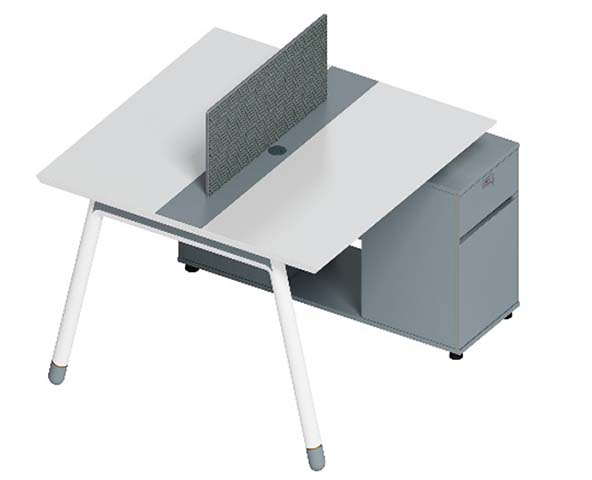

The Two-Person Shared Office Workstation with Central Divider and Right Pedestal is an unbranded office workstation, model WS2-DIV-PED-1200, designed for two users in a compact shared layout. Its white and grey finish combines melamine-faced work surfaces, white powder-coated steel legs, a grey metal support rail, and a grey pedestal for a clean commercial appearance. Visually, the workstation uses a side-by-side bench arrangement with a low central divider between the two seating positions. The divider is a framed textured panel with a woven or perforated grey face, providing personal separation while retaining sight lines over the top. A round cable grommet is integrated into the central routing area, feeding cables into the under-top service channel. On the right, the storage pedestal supports the corner of the worktop and combines drawer fronts with an open under-desk shelf, giving the layout a balanced, functional profile. Construction is based on 25 mm melamine-faced particleboard work surfaces with sealed PVC edge banding. The finished top thickness is 50 mm. The under-top structure includes a grey powder-coated metal beam linking the legs and worktops, with 50 mm round white powder-coated steel legs finished with dark end caps. The pedestal is built from 18 mm grey melamine-faced engineered-wood panels and uses ball-bearing drawer slides. Adjustable leveling feet and black base glides help compensate for uneven office flooring. Practical functions are oriented toward daily desk work and cable management. The central 60 mm grommet directs power and data cables into the grey service channel, while the cable opening is 80 mm in diameter with a cable tray depth of 120 mm. The 350 mm high central screen separates seated users without fully enclosing the workspace. The right pedestal offers drawer storage and an open shelf, with capacity for 60 standard suspension files for mobile filing. Rated distributed desktop static load is 100 kg, pedestal top or support load is 40 kg, each drawer supports 15 kg, and the open shelf supports 10 kg. Each main seat provides 680 mm high and 900 mm wide effective knee clearance, and the fixed writing height is 750 mm. The workstation is well suited to open-plan office bench layouts, two-person shared work zones, project areas, and administrative spaces where computer-based users need accessible storage and reduced desktop clutter. It can also fit residential workrooms that require a structured two-user desk. Procurement teams should plan for assembly, confirm access for carton delivery, and account for the pedestal, cable channel, divider, and glide configuration when coordinating installation and floor placement.

Two-Person Shared Office Workstation with Central Divider and Right Pedestal Specifications
