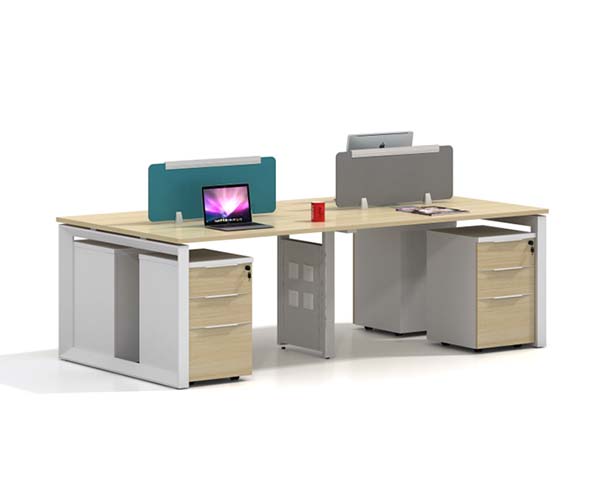

2-Person Side-by-Side Office Bench Workstation with Privacy Dividers and Mobile Pedestals (model WS-2P-LG-2800) is listed under Open Workstation, with overall dimensions of 2800 × 1200 × 750 mm and main material of Particle‑board (PB). Load capacity: 135 kg. Certifications: Modern,open-plan,2-seat,layout,lockable,mobile,storage,desktop,privacy,dividers,cable,management,ready. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions | 2800 x 1200 x 750 mm | |
|---|---|---|
| Individual workzone width | 1400 mm | |
| Individual workzone depth | 600 mm | |
| Privacy divider height above desk | 350 mm | |
| Privacy divider thickness | 35 mm | |
| Worktop thickness | 38 mm | |
| PVC edge banding thickness (worktop) | 2 mm | |
| Mobile pedestal dimensions (per unit) | 406 x 699 x 699 mm | |
| Seated knee clearance height under worktop | 673 mm | |
| Square support leg section size | 60 mm | |
| Cable grommet diameter | 60 mm | |
| Caster diameter on mobile pedestals | 51 mm | |
| Adjustable foot height adjustment range | 15 mm | |
| Drawer slide length (box drawers) | 450 mm | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Total workstation weight (with 2 pedestals) | 163 kg | |
|---|---|---|
| Static load capacity per work position | 135 kg | |
| Cable tray weight capacity under worktop | 10 kg | |
| Drawer slide dynamic load rating per drawer | 25 kg | |
| Drawer slide cycle life | 50000 open/close cycles | |
| Hinge cycle life for pedestal components | 80000 open/close cycles | |
| Laminate surface abrasion resistance | 2000 revolutions | |
| Maximum user weight per work position | 135 kg | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Worktop and pedestal panels | 38mm E1 grade melamine-faced particle board, 2mm PVC impact edging | |
|---|---|---|
| Support frame and legs | 1.2mm thick powder-coated mild steel box section, textured grey finish | |
| Desktop privacy dividers | Fabric-upholstered 35mm fiberboard core with silver aluminum top trim | |
| Mobile pedestal casters | Nylon swivel casters, 2 locking casters per unit, polyurethane rolling surface | |
| Drawer hardware | Cold-rolled steel ball-bearing full-extension slides, central keyed lock per pedestal | |
| Central modesty panel | 16mm laminated grey MDF panel with square ventilation cutouts |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Work position separation | Two independent seated work zones separated by low desktop privacy dividers to reduce visual distraction | |
|---|---|---|
| Mobile storage | Two 3-drawer lockable mobile pedestals that roll under each work position for personal file and supply storage | |
| Cable management | Recessed 60mm cable grommets at each work position route power and data cables below the work surface | |
| Floor leveling | Adjustable feet on all support legs compensate for uneven floor surfaces to maintain a level worktop |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open-plan office staff work areas | Accommodates two seated employees with separated work zones and personal storage for daily office tasks | |
|---|---|---|
| Small business office layouts | Space-efficient 2-person configuration with integrated storage reduces need for separate furniture purchases |
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office worktables safety and strength requirements, applicable to overall workstation performance | |
|---|---|---|
| EN 527-2:2002+A1:2019 | Office worktables dimensional requirements for seated work positions | |
| EN 13722:2004 | Furniture strength and durability for storage units, applicable to mobile pedestals |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk products performance standard, applicable to worktop and frame durability | |
|---|---|---|
| ANSI/BIFMA X5.3-2020 | Vertical files and mobile pedestals performance standard, applicable to drawer units | |
| ANSI/BIFMA X5.1-2017 | General purpose office chairs compatibility for seated work clearance dimensions |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to laminate worktop and storage panels | |
|---|---|---|
| GB/T 3325-2017 | Metal furniture general technical requirements, applicable to steel support frame | |
| GB 18580-2017 | Formaldehyde emission limits for wood-based panels, applicable to E1 grade panel materials | |
| GB/T 10357.1-2013 | Furniture mechanical performance test for tables, applicable to static and durability testing |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to laminate worktop and storage panels; 2. GB/T 3325-2017: Metal furniture general technical requirements, applicable to steel support frame; 3. GB 18580-2017: Formaldehyde emission limits for wood-based panels, applicable to E1 grade panel materials; 4. GB/T 10357.1-2013: Furniture mechanical performance test for tables, applicable to static and durability testing; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
