PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Static distributed desktop load	80 kg
Pedestal drawer load	15 kg
Lower cabinet shelf load	20 kg
Seating capacity	2 persons
Pedestal lock points	2 locks
Workstation net weight reference	62 kg
Floor contact points	6 points
Recommended daily user load cycle	2 users per day
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Work surface	25 mm melamine-faced particleboard with light oak grain and sealed 2 mm edges
Central divider	18 mm board substrate wrapped in gray woven fabric with softly radiused edges
Support legs	50 x 50 mm dark gray powder-coated square steel tube with inclined A-frame geometry
Under-top rail	Black powder-coated steel apron rail connecting the front leg pair
Storage pedestal	Melamine-faced board case with light oak front, charcoal side panel, black edge trim and black plinth
Drawer and door hardware	Black key lock, side-mounted drawer slides and hinged lower door with black pull line

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Two-user facing layout	Two 1200 x 600 mm work zones share one 1200 x 1200 mm footprint with a central privacy divider
Sight and cable divider	Low 320 mm fabric panel screens keyboard areas while retaining sight lines and includes a central cable clip or clamp plate
Fixed personal storage	Right-end pedestal provides one lockable 160 mm drawer and one lockable 470 mm door compartment
Floor leveling and installation	Knock-down steel-leg workstation installs to the board top and pedestal with six floor glides for uneven office floors

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan office benching	Suited to two staff seated face-to-face in task areas, call centers or administrative zones
Project or clerical workspace	Pedestal storage supports documents and personal items at each end of the workstation

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.5

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · WS-2P-1200-PEDESTAL

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · WS-2P-1200-PEDESTAL

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · WS-2P-1200-PEDESTALOpen Export Tool

Quick Actions

Post an RFQ

Product Description

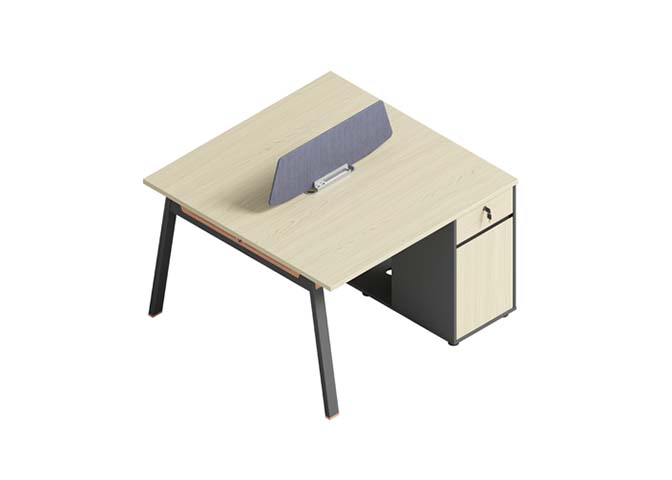

The Two-Person Panel-End Workstation with Central Divider and Fixed Storage Pedestal is an unbranded office benching solution designed for face-to-face collaborative work while preserving individual privacy and storage. Model WS-2P-1200-PEDESTAL combines a light oak grain aesthetic with gray fabric and dark gray steel supports, creating a balanced, professional appearance suited to contemporary commercial interiors. Its layout provides two separate 1200 by 600 millimeter work zones within a shared 1200 by 1200 millimeter footprint. A low 320 millimeter central divider screens keyboard and document areas without blocking all sight lines, supporting conversation when needed while reducing direct visual distraction. The divider is built from an 18 millimeter board substrate wrapped in gray woven fabric with softly radiused edges, and it includes a central cable clip or clamp plate to help manage cabling between users. The work surfaces use 25 millimeter melamine-faced particleboard with a light oak grain and sealed 2 millimeter edges, presenting a finished top thickness of 50 millimeters. Support is provided by dark gray powder-coated square steel tube legs in an inclined A-frame geometry, joined by a black powder-coated apron rail beneath the top. Each main seat position offers 680 millimeters of knee clearance height and 900 millimeters of width. The right-end fixed pedestal adds visual enclosure and personal storage. It features a melamine-faced board case, light oak front, charcoal side panel, black edge trim and black plinth. Storage includes one lockable 160 millimeter drawer and one lockable 470 millimeter door compartment, secured by two key locks. Side-mounted drawer slides and a hinged lower door with a black pull line support regular office use. Cable management is integrated through an 80 millimeter opening and a cable tray with 120 millimeter depth, helping keep power and data leads organized below the work surface. The desk is rated for a static distributed desktop load of 80 kilograms, with a 15 kilogram drawer load and 20 kilogram lower cabinet shelf load. It accommodates two people and uses six floor glides, making it suitable for uneven office floors. The workstation is well suited to open-plan task areas, call centers, administrative floors, project rooms and clerical workspaces where two staff need compact, dedicated surfaces with nearby document storage. It can also serve residential study or home-office environments that require two defined work positions. Procurement teams should plan for knock-down assembly, with installation connecting the steel legs to the board top and pedestal. Reference assembly time is 40 minutes per set, and the six floor contact points should be checked during placement. The published packaging information includes differing package-count and carton references, so buyers should confirm shipment configuration, delivery handling and site access before ordering. The 62 kilogram net weight reference and steel-leg construction indicate a substantial two-person bench that should be positioned with appropriate floor protection and adequate access for installation.

Two-Person Panel-End Workstation with Central Divider and Fixed Storage Pedestal Specifications
