PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	2800 × 1200 × 1100 mm
Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Total seated user capacity	4 users
Static work surface load	120 kg total
Per-seat worktop point load	40 kg
Pedestal drawer load	12 kg per drawer
Pedestal cabinet total load	45 kg
CPU shelf load	20 kg
product net weight	185 kg
Drawer slide durability target	40000 open-close cycles
Warranty duration	5 years
Top Static Load Reference	150 kg uniformly distributed

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Work surface	25 mm melamine-faced wood-composite board with PVC edge banding
Pedestal carcass	18 mm taupe melamine-faced composite panel with matte finish
Drawer fronts	Lacquered or melamine-faced MDF/composite panels in beige-gray
Support legs	Powder-coated steel tube with splayed twin-leg arrangement
Divider screen panel	Semi-translucent woven fabric or mesh over a rigid framed core
Screen posts	Gray powder-coated cylindrical steel posts

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Workstation configuration	Four back-to-back seats share one continuous benching frame with two outward-facing work sides
Privacy division	Two low central divider panels separate facing users while preserving sightlines over the screen
Personal storage	Each shown pedestal provides three lockable drawers for documents and personal items
Computer storage	Two open under-desk bays accept vertical desktop towers and keep equipment off the knee-space floor

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan office	Suits four-person team clusters where privacy screening, personal filing and desktop computer storage are required
Project and administrative work area	Appropriate for shared clerical, finance, HR or operations teams using laptops and desktop towers

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

Office work desk safety and strength	EN 527:2011
Office work desk mechanical test methods	EN 527:2002
Furniture fire-rated upholstery assessment	EN 1021:2014

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

Office desk performance standard	ANSI/BIFMA X2021
Storage cabinet performance standard	ANSI/BIFMA X2019
Sustainability screening reference	ANSI/BIFMA e2019

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

Suitability standard for office desk dimensions	GB/T 3326:2016
Office wooden furniture quality acceptance	GB/T 3324:2024
Formaldehyde emission control	GB 18580:2017

Standardized tender description text

This product must meet the following technical requirements:
1. Suitability standard for office desk dimensions: GB/T 3326:2016;
2. Office wooden furniture quality acceptance: GB/T 3324:2024;
3. Formaldehyde emission control: GB 18580:2017;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · WS-B4-2800-PED-SCREEN

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · WS-B4-2800-PED-SCREEN

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · WS-B4-2800-PED-SCREENOpen Export Tool

Quick Actions

Post an RFQ

Product Description

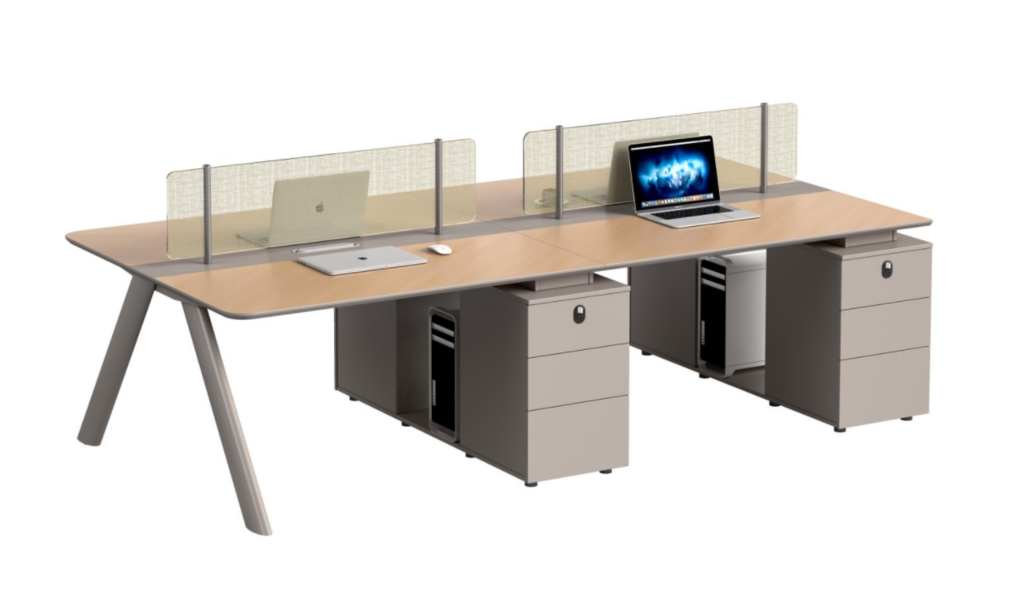

The Four-Person Bench Workstation with Central Dividers and Mobile Pedestals is a coordinated benching solution designed for shared office settings. Its four seats are arranged back-to-back across one continuous frame, creating two outward-facing work sides. A pair of low central divider panels separates users facing one another, while the restrained screen height preserves open sightlines above the divider. This gives the workstation a clean, team-oriented profile without exposing the full desktop area between colleagues. The work surface uses melamine-faced wood-composite board with PVC edge banding, presented in a beige and taupe palette. The pedestal bodies use taupe melamine-faced composite panels with a matte finish, while the drawer fronts use lacquered or melamine-faced MDF or composite panels in beige-gray. Support is provided by powder-coated steel legs in a splayed twin-leg arrangement, with gray powder-coated cylindrical steel posts holding the framed divider panels. The semi-translucent woven fabric or mesh screens introduce a softer visual layer within the structured metal and composite construction. Each displayed pedestal includes three lockable drawers, giving users dedicated space for documents and personal belongings. Two open under-desk bays accommodate vertical desktop towers, helping keep computer equipment clear of the knee-space floor. An integrated cable opening and cable tray support cable routing for power and data connections. The configuration is suited to open-plan four-person team clusters and project or administrative areas used by clerical, finance, human resources, or operations teams working with laptops and desktop computers. It is also appropriate for residential workrooms that require multiple structured work positions, filing storage, and desktop equipment space. Procurement planners should consider the workstation’s static work surface capacity, drawer load rating, pedestal cabinet capacity, and CPU shelf capacity when specifying equipment and storage use. The unit is supplied unbranded and should be assessed as a furniture set requiring on-site assembly; purchasers should also review storage access, cable management needs, circulation space, and the number of cartons delivered to the location. The neutral finish, privacy dividers, personal pedestals, and computer bays make the system a practical choice for organized shared workspaces.

Four-Person Bench Workstation with Central Dividers and Mobile Pedestals Specifications
