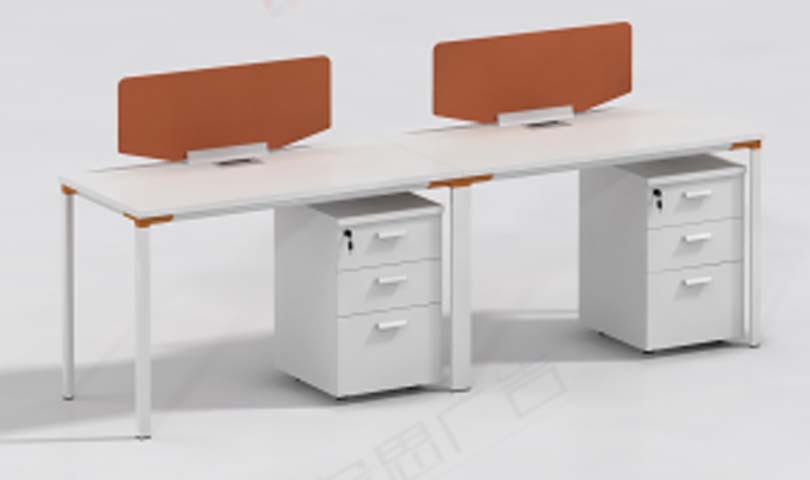

2-Person Linear Office Workstation Desk with Orange Privacy Dividers and Locking 3-Drawer Mobile Pedestals (model WS-2P-OR2400-LK) is listed under Open Workstation, with overall dimensions of 2400 × 700 × 750 mm and main material of Particle‑board (PB). Load capacity: 200 kg. Certifications: Modern,style,linear,dual-seat,layout,desktop,privacy,dividers,mobile,locking,pedestals,steel,frame,support. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall workstation dimensions | 2400 x 700 x 750 mm | |
|---|---|---|
| Single user work surface width | 1200 mm | |
| Desktop thickness | 25 mm | |
| Privacy divider height above desktop | 400 mm | |
| Privacy divider thickness | 18 mm | |
| Under-desk knee clearance height | 650 mm | |
| Knee clearance depth per user | 500 mm | |
| Mobile pedestal dimensions | 400 x 600 x 600 mm | |
| Table leg diameter | 50 mm | |
| Leg wall thickness | 1.5 mm | |
| Edge band thickness | 2 mm | |
| Orange accent trim thickness | 2 mm | |
| Cable grommet diameter | 80 mm | |
| Drawer internal height per pedestal | 180 mm | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Total worktop static load capacity | 200 kg | |
|---|---|---|
| Single pedestal drawer static load | 30 kg | |
| Drawer slide cycle rating | 50000 cycles | |
| Caster rolling cycle rating | 10000 cycles | |
| Worktop surface abrasion resistance | 2000 cycles | |
| Total product net weight | 120 kg | |
| Recommended maximum user weight per seat | 150 kg | |
| Frame warranty period | 5 years | |
| Panel component warranty period | 3 years | |
| Top Static Load Reference | 150 kg uniformly distributed |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Worktop surface | E1 grade melamine-faced engineered wood | |
|---|---|---|
| Support frame | Powder-coated cold-rolled steel | |
| Mobile pedestals | Melamine-faced particle board with steel hardware | |
| Privacy dividers | MDF core with orange matte laminate finish | |
| Accent trims | ABS engineering plastic | |
| Casters | Nylon with polyurethane tread |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Visual privacy separation | Rigid orange dividers block seated line of sight | |
|---|---|---|
| Lockable under-desk storage | 3-drawer mobile pedestals with central locking system | |
| Cable management access | Surface-mounted cable grommets route power/data cords | |
| Mobile pedestal repositioning | Swivel locking casters allow pedestal movement |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open plan office staff seating | Linear side-by-side layout for two adjacent employees | |
|---|---|---|
| Start-up and co-working spaces | Modular design allows combination into longer bench runs |
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office worktables safety and strength requirements | |
|---|---|---|
| EN 527-2:2016 | Office worktables dimensional safety and strength requirements | |
| EN 1335-2:2009 | Office chairs safety requirements |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk products durability and safety standard | |
|---|---|---|
| ANSI/BIFMA X5.9-2019 | Storage units performance standard |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden office furniture | |
|---|---|---|
| GB/T 3327-2016 | General technical requirements for metal office furniture | |
| GB 18584-2001 | Indoor decorating and refurbishing materials limit of formaldehyde emission |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden office furniture; 2. GB/T 3327-2016: General technical requirements for metal office furniture; 3. GB 18584-2001: Indoor decorating and refurbishing materials limit of formaldehyde emission; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
