PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	2800 × 1400 × 1200 mm
Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Seating capacity	2 users
Desktop distributed load	100 kg per seat
Central cabinet static load	60 kg
Open shelf load per compartment	15 kg
Leveling floor tolerance	15 mm
Product net weight	135 kg
Recommended occupancy layout	2 desks in one connected cluster
Durability target for moving hardware	50,000 operations
Warranty period	5 years
Top Static Load Reference	150 kg uniformly distributed

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Desktop panels	25 mm melamine-faced wood-based board with sealed impact-resistant edge banding
Central storage carcass	18 mm melamine-faced panel in matching oak finish
Side privacy panels	Grey painted steel or steel-composite modesty panels with rounded exposed edges
Rear monitor rails	Light grey powder-coated steel rail with elevated shelf platform
Locker hardware	Black recessed integrated lock and barrel-key fitting
Base and leveling hardware	Black nylon or rubber-footed threaded steel glides

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Face-to-face workstation layout	Two opposing 1200 mm work surfaces share one central 400 mm storage and screening spine
Central filing and storage	Upper open cubbies accept binders while lower lockable doors secure personal office materials
Privacy screening	Solid side modesty panels and central cabinet block under-desk and cross-user sight lines
Floor leveling	Threaded glides at each support point provide 15 mm vertical adjustment without lifting the complete workstation

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Main carton dimensions	1300 x 700 x 180 mm
Cabinet carton dimensions	1250 x 450 x 420 mm
Total gross weight	155 kg
Total packed volume	0.72 CBM
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan office cluster	Suitable for two staff who need separate computer work zones with binder storage and visual privacy in one compact footprint
Procurement configuration	Use as a modular two-person bench block for administrative, finance, procurement or back-office seating layouts

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 527-1 office desk safety	Apply dimensional, structural and safety requirements to the two work surfaces
EN 527-2 office desk mechanical tests	Specify strength, durability and stability testing for daily commercial office use
EN 16121 storage furniture safety	Use for strength, durability and stability of the central lockable storage cabinet
EN 16122 storage furniture test methods	Use as the mechanical test reference for shelves, doors, locks and carcass behavior

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.5 desk products	Use for load, fatigue, drop and stability testing of the desk surfaces and supports
ANSI/BIFMA X5.9 storage units	Use for strength, durability, lock and stability verification of the central cabinet
ANSI/BIFMA e3 sustainability model	Optional procurement framework for panel materials, finishes, recycled content and low-emission documentation

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324 dimensional and structural suitability	General technical standard for wooden furniture dimensions, stability and workmanship if supplied as panel office furniture
GB/T 3325 metal furniture suitability	Applicable to the painted steel support and modesty panels if metal substrates are used
GB 18584 indoor furnishing limit	Specify formaldehyde and soluble-metal release limits for the wood-based panel furniture
GB/T 10357.6 cabinet strength test	Use as acceptance reference for shelf, door and carcass load performance of the central storage unit

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324 dimensional and structural suitability: General technical standard for wooden furniture dimensions, stability and workmanship if supplied as panel office furniture;
2. GB/T 3325 metal furniture suitability: Applicable to the painted steel support and modesty panels if metal substrates are used;
3. GB 18584 indoor furnishing limit: Specify formaldehyde and soluble-metal release limits for the wood-based panel furniture;
4. GB/T 10357.6 cabinet strength test: Use as acceptance reference for shelf, door and carcass load performance of the central storage unit;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · WS-2P-CENTRAL-LOCKER-OAK-GREY

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · WS-2P-CENTRAL-LOCKER-OAK-GREY

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · WS-2P-CENTRAL-LOCKER-OAK-GREYOpen Export Tool

Quick Actions

Post an RFQ

Product Description

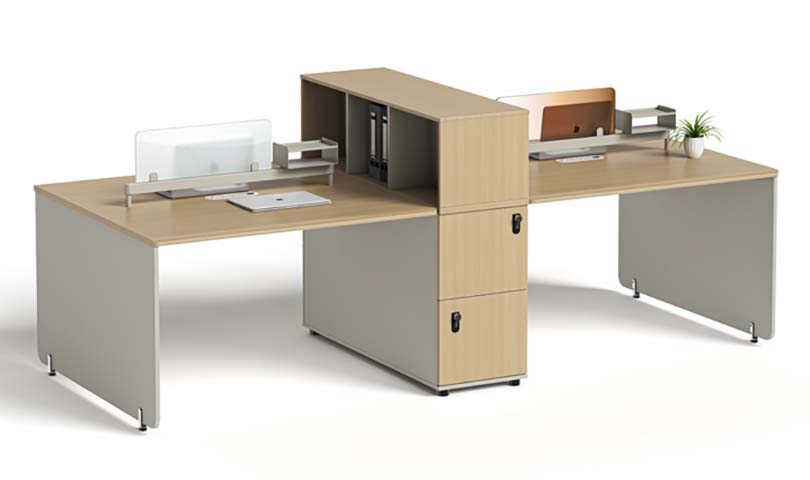

The Two-Person Face-to-Face Workstation with Central Storage and Divider is an unbranded office workstation configured as one connected cluster for two users. Its model, WS-2P-CENTRAL-LOCKER-OAK-GREY, pairs an oak-finish storage and work surface system with grey steel screening and supports, producing a structured bench solution for compact open-plan seating. Two opposing 1200 mm work surfaces share a central 400 mm storage and screening spine. The layout gives each main seat 680 mm of knee clearance height and 900 mm of knee clearance width, while solid grey side modesty panels and the central cabinet block under-desk and cross-user sight lines. Aluminium-look desktop accessory rails add a functional visual detail, and light grey powder-coated steel monitor rails at the rear include an elevated shelf platform. The desktop is built from 25 mm melamine-faced wood-based board with sealed impact-resistant edge banding, producing a finished top thickness of 50 mm. The central storage carcass uses 18 mm melamine-faced panel in the matching oak finish. Side privacy panels are grey painted steel or steel-composite with rounded exposed edges, and the main support section measures 80 mm with a 2 mm metal wall. Black nylon or rubber-footed threaded steel glides level the unit on uneven floors. Practical storage is split between upper open cubbies sized for binders and lower lockable doors that secure personal office materials. The black recessed integrated lock uses a barrel-key fitting. Cable management is provided through 80 mm diameter openings, with a cable tray depth of 120 mm. Each seat supports a 100 kg distributed desktop load, the central cabinet carries a 60 kg static load, and each open shelf compartment supports 15 kg. Threaded glides at each support point offer 15 mm vertical adjustment without lifting the complete workstation, accommodating a floor leveling tolerance of 15 mm. The workstation is suitable for two staff members who need separate computer work zones, binder storage, and visual privacy within a single compact footprint. It is appropriate as a modular two-person bench block for administrative, finance, procurement, or other back-office seating layouts. Procurement teams should plan for one set delivered in two cartons, with a main carton measuring 1300 x 700 x 180 mm and a cabinet carton measuring 1250 x 450 x 420 mm. Total packed volume is 0.72 CBM, gross weight is 155 kg, net product weight is 135 kg, and reference assembly time is 40 minutes per set. The recommended occupancy layout remains two desks in one connected cluster.
