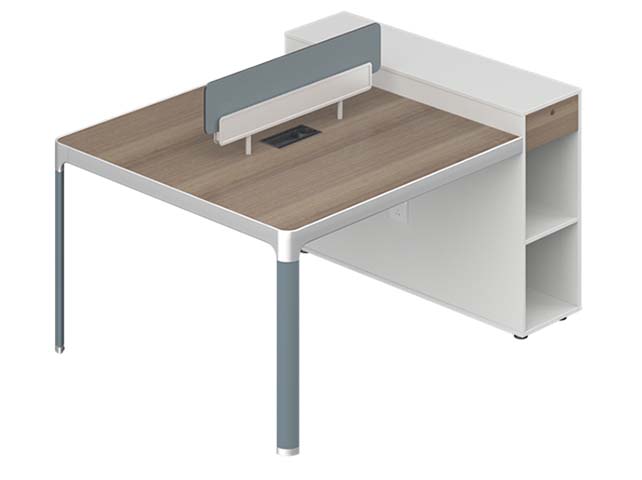

Single Staff Workstation Desk with Side Storage Cabinet and Desk Divider (model OFW-DSK-1470) is listed under Open Workstation, with overall dimensions of 1400 × 700 × 750 mm and main material of Particle‑board (PB). Load capacity: 80 kg. Certifications: Modular,structure,integrated,storage,desktop,privacy,divider. This page consolidates 6 groups of specifications and ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Finished Top Thickness | 50 mm | |
|---|---|---|
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Desktop uniform static load capacity | 80 kg | |
|---|---|---|
| Product net weight | 52 kg | |
| Recommended maximum user weight per seat | 120 kg | |
| Frame vertical static load resistance | 1000 N | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles | |
| Top Abrasion Reference | Acceptance target ≥4,000 abrasion cycles or finish-system test | |
| Recommended Procurement Warranty | Structure 5 years; hardware 3 years; finish 2 years |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Work surface | Melamine-faced E1 grade particleboard, walnut woodgrain finish, 25mm thickness | |
|---|---|---|
| Support frame and legs | Powder-coated steel, light grey frame and grey leg finish, 1.2mm wall thickness | |
| Desk divider | Dual-tone design with fabric-wrapped acoustic panel and ABS plastic trim | |
| Storage cabinet body | Melamine-faced E1 grade particleboard, light off-white finish, 18mm thickness | |
| Hardware components | Zinc-plated steel screws, adjustable nylon glides, plastic cable grommet | |
| Side cabinet drawer front | Walnut woodgrain melamine match to work surface, fitted with key lock |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Cable management system | Recessed desktop cable port routed to under-desk channel, with side cabinet power access cutout | |
|---|---|---|
| Side storage configuration | 1 lockable top drawer plus 2 open lower shelves for office document storage | |
| Desk privacy divider | Fixed mounting on desktop rear edge, provides seated workspace visual separation | |
| Floor leveling | Adjustable glides on all support points to compensate for uneven office flooring |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Applicable space | Open-plan office areas, staff work zones, administrative departments | |
|---|---|---|
| Recommended user group | General office staff, administrative personnel, data entry workers |
EU Market Access Requirements* EN Standards
US and Canada office-furniture standards
| North America procurement and testing reference | Recommended references: ANSI/BIFMA X5.5 |
|---|
Standards applicable to China-market projects
This product must meet the following technical requirements: 1. Technical standards and test reports must be supplied during tender or purchase confirmation; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
