PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1600 × 1200 × 1150 mm
Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Life	Acceptance target 80000 cycles
Top Abrasion Reference	Acceptance target ≥4,000 abrasion cycles or finish-system test
Recommended Procurement Warranty	Structure 5 years; hardware 3 years; finish 2 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Primary Panel Thickness	25 mm; load-bearing top may use 40 mm composite build-up
Edge Band Thickness	2 mm
Metal Frame Wall Thickness	2 mm cold-rolled steel
Primary Connector Specification	Reference M6-M8 with at least 2 fixing points per main support
Reference Finish / Color Count	Recommended 6top finishes and 3frame colors

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Cable Management Capacity	Reference capacity 10power/data cables; tray load 10 kg
Reference Reassembly Count	Main joints should support 5controlled assembly cycles

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

No data is available for this section.

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.5

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · WS-FS2-PED-1600

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · WS-FS2-PED-1600

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · WS-FS2-PED-1600Open Export Tool

Quick Actions

Post an RFQ

Product Description

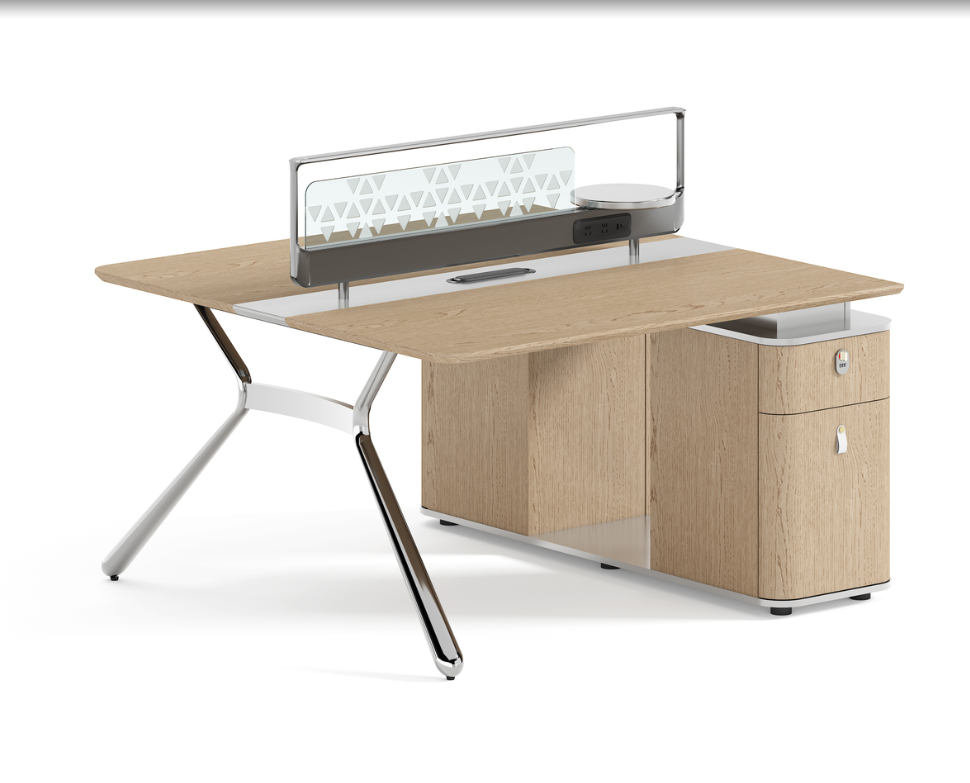

The Double-Sided Office Workstation with Integrated Screen, Power Module and Fixed Pedestal offers a structured, modern solution for shared work settings. Model WS-FS2-PED-1600 is an unbranded office desk designed with two facing work positions, a central frosted acrylic divider, and a fixed pedestal integrated into the layout. The divider gives each user a defined visual boundary while preserving an open plan feel. Oak-grain engineered wood is used for the work surfaces and pedestal, paired with a polished chrome-plated metal frame and a black plastic power module. Nylon leveling glides help the unit sit evenly on varied floor surfaces. Its finished top thickness is 50 mm, with a 25 mm primary panel thickness and a 40 mm composite build-up for the load-bearing top where specified. Edges use 2 mm edge banding, while the main frame section is 80 mm and built from 2 mm thick cold-rolled steel. Main supports reference M6 to M8 connectors with at least two fixing points per support. Practical use is supported by effective knee clearance of 680 mm high and 900 mm wide at each main seat. The cable system includes an 80 mm diameter cable opening and a 120 mm deep tray, with reference capacity for ten power or data cables and a tray load of 10 kg. The integrated power module provides a visible access point for desktop power needs, and the fixed pedestal adds personal storage within the workstation footprint. Drawer slides are rated for 45 kg per pair and 50,000 cycles, while the hinge opening acceptance target is 80,000 cycles. The top static load reference is 150 kg uniformly distributed, and the abrasion acceptance target is 4,000 cycles or the applicable finish-system test. This workstation is suited to open offices, team neighborhoods, booking-based work areas, and projects that require paired seating with privacy and cable organization in one coordinated unit. Design coordination can draw on six recommended top finishes and three frame colors. Procurement planning should account for controlled reassembly: main joints are intended to support five assembly cycles. Recommended warranty cover is five years for structure, three years for hardware, and two years for finish. Packaging references note one set across two cartons, while separate logistics data records 180 kg per set across four cartons and one cubic meter per set, with a reference assembly time of 40 minutes per set. Buyers should confirm final packing configuration, finish availability, power-module configuration, and site access before order placement.

Double-Sided Office Workstation with Integrated Screen, Power Module and Fixed Pedestal Specifications
