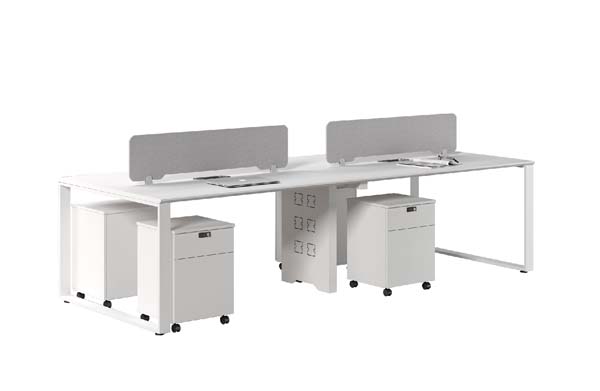

Product supplierFour-Person Modular Open Office Workstation with Dividers and Mobile Pedestals, 18mm MDF core with 25mm thick high-pressure laminate surface
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 2800 × 1200 × 750 mm | |
|---|---|---|
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Total desktop static load capacity | 400 kg | |
|---|---|---|
| Nett furniture weight (without pedestals) | 85 kg | |
| Recommended maximum user weight per seat | 150 kg | |
| Surface abrasion resistance rating | 2000 rub cycles | |
| Design service life | 5 years | |
| Number of supported users | 4 | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles | |
| Top Abrasion Reference | Acceptance target ≥4,000 abrasion cycles or finish-system test |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Desktop substrate | 18mm MDF core with 25mm thick high-pressure laminate surface | |
|---|---|---|
| Support frame | 1.2mm thick powder-coated cold-rolled steel square tubing | |
| Privacy dividers | 9mm thick MDF core with light grey woven polyester fabric upholstery | |
| Mobile pedestal cabinets | 0.8mm thick powder-coated cold-rolled steel body | |
| Casters | Nylon housing with polyurethane rolling surface, 360-degree swivel | |
| Divider mounting brackets | Stamped steel with powder-coated finish | |
| Adjustable foot glides | Nylon base with steel threaded stem | |
| Pedestal drawer slides | Cold-rolled steel ball-bearing slides | |
| Primary Panel Thickness | 25 mm; load-bearing top may use 40 mm composite build-up | |
| Edge Band Thickness | 2 mm | |
| Metal Frame Wall Thickness | 2 mm cold-rolled steel | |
| Primary Connector Specification | Reference M6-M8 with at least 2 fixing points per main support |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Privacy divider separation | Mounted along desktop centerline to block direct sightlines between opposite facing users | |
|---|---|---|
| Mobile pedestal storage | Each two-drawer pedestal rolls freely under desk for personal file and supply storage | |
| Cable management access | Central cable duct under desktop with port cutouts for each user position | |
| Adjustable floor leveling | Threaded glides at each frame leg adjust 15mm vertically | |
| Modular reconfiguration | Frame and desktop components connect with standard hardware to support benching layout expansion | |
| Pedestal mobility lock | Each caster includes a brake lever to fix pedestal position when not being moved | |
| Edge protection | Shock-resistant PVC edge banding on all desktop perimeter edges | |
| Drawer lock function | Integrated key lock on each mobile pedestal secures both drawers simultaneously | |
| Cable Management Capacity | Reference capacity 10power/data cables; tray load 10 kg | |
| Reference Reassembly Count | Main joints should support 5controlled assembly cycles |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open plan office spaces | Four-person configuration fits high-density team work zones | |
|---|---|---|
| Startup and coworking environments | Neutral light grey finish matches flexible, collaborative workspaces | |
| Corporate administrative departments | Integrated personal storage keeps work surfaces clear for daily tasks | |
| Call center and back-office operations | Privacy dividers reduce cross-talk visual distraction for focused work | |
| Project team work areas | Modular structure supports expansion for growing project teams | |
| Small business office fit-outs | All-in-one design reduces separate furniture procurement and installation time |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office work tables safety and strength requirements, applicable to commercial use | |
|---|---|---|
| EN 527-2:2016 | Office work tables dimensional safety and strength requirements | |
| EN 1335-1:2020 | Office furniture reference for seated user clearance dimensions | |
| EN 1022:2018 | Furniture seating and table stability testing standard reference |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk products standard for load, stability and durability testing | |
|---|---|---|
| ANSI/BIFMA X5.9-2019 | Storage units standard for mobile pedestal performance |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to laminate desktop components | |
|---|---|---|
| GB/T 3325-2017 | General technical requirements for metal furniture, applicable to steel frame and pedestals | |
| GB/T 10357.1-2013 | Furniture mechanical performance test for tables, applicable to desk stability and load testing | |
| GB 18584-2001 | Indoor decoration material limit of harmful substances for wood furniture, applicable to laminate emissions |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to laminate desktop components; 2. GB/T 3325-2017: General technical requirements for metal furniture, applicable to steel frame and pedestals; 3. GB/T 10357.1-2013: Furniture mechanical performance test for tables, applicable to desk stability and load testing; 4. GB 18584-2001: Indoor decoration material limit of harmful substances for wood furniture, applicable to laminate emissions; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
