PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Recommended users	4 persons
Work-surface distributed load	80 kg per work surface
Pedestal drawer load	20 kg per drawer
Open shelf load	15 kg
Divider panel lateral load	10 kg at panel center
Unit net weight reference	96 kg
Hardware cycle target	50,000 drawer opening cycles
Leg leveling adjustment	10 mm
Warranty period for tender comparison	5 years
Top Static Load Reference	150 kg uniformly distributed

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Work surface	Wood-grain melamine-faced particleboard with laminated edge banding
Support frame and legs	Silver powder-coated steel tube with rectangular perimeter rails and square vertical legs
Divider panel	Gray fabric-wrapped panel with light-colored frame edge and metal mounting bracket
Central pedestal	Wood-grain and dark gray laminated board body with two drawer fronts and one open cubby
Drawer hardware	Side-mounted ball-bearing drawer slides with recessed metal pull handles
Feet and connectors	Injection-molded polymer glides with die-cast or steel corner connectors

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Four-seat face-to-face benching	Two users sit on each long side, with low screens separating facing work zones and cable ports at each pair.
Desktop cable routing	Two 80 mm cable grommets route monitor and power cables through the work surface beside the divider supports.
Central storage and CPU space	Two lockable-ready drawers provide stationery storage, while the open center cubby accepts a small CPU or shared documents.
Freestanding installation	The workstation assembles on leveling feet without floor anchoring, using bolted rail-to-leg and pedestal connections.

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Largest carton size	1280 x 660 x 120 mm
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan office cluster	Suitable for four staff in a compact open office because each person receives a 1200 x 600 mm work zone and shared visual privacy.
Administrative or processing team area	Appropriate for paperwork, laptops, and dual-monitor tasks where central drawers and an open equipment cubby support daily shared storage.

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

Office desk safety and stability	EN 527:2011
Office desk mechanical test method	EN 527:2002
Office storage pedestal safety	EN 14073:2004
Office storage pedestal stability	EN 14073:2004

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

Desk mechanical performance	ANSI/BIFMA X2021
Storage unit performance	ANSI/BIFMA X2019

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

Desktop structural safety	GB/T 3324
Laminate desktop emission testing	GB 18580
Metal furniture coating	GB/T 3325

Standardized tender description text

This product must meet the following technical requirements:
1. Desktop structural safety: GB/T 3324;
2. Laminate desktop emission testing: GB 18580;
3. Metal furniture coating: GB/T 3325;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · WS-4P-METAL-WOOD-DIV

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · WS-4P-METAL-WOOD-DIV

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · WS-4P-METAL-WOOD-DIVOpen Export Tool

Quick Actions

Post an RFQ

Product Description

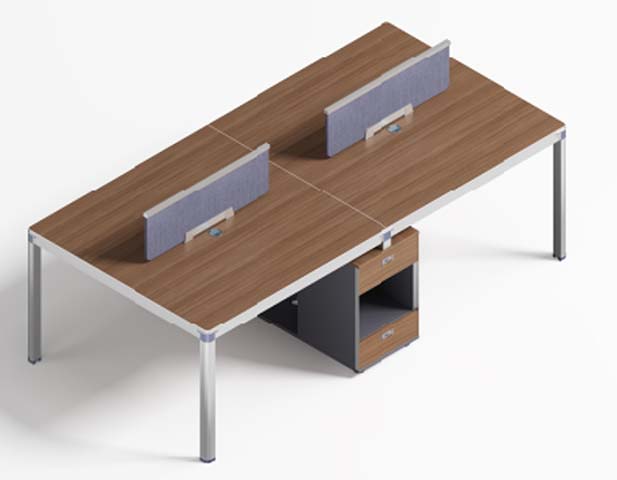

The Four-Person Face-to-Face Office Workstation is an unbranded benching solution designed for teams that need coordinated seating, modest visual separation, and shared storage in one compact footprint. Model WS-4P-METAL-WOOD-DIV uses a symmetrical face-to-face layout, with two users positioned along each long side. Low gray divider screens run between the opposing work zones, while the wood-grain surfaces and silver metal frame create a conventional office appearance suited to both open-plan and administrative environments. Each person receives an individual work area on a wood-grain melamine-faced particleboard top finished with laminated edge banding. The finished top is 50 mm thick, and the main seating positions provide 680 mm of knee clearance height and 900 mm of knee clearance width. Support is provided by a silver powder-coated steel tube frame with rectangular perimeter rails and square vertical legs. The main leg section measures 80 mm with a 2 mm metal wall, and injection-molded polymer glides, together with die-cast or steel corner connectors, complete the structural assembly. The divider panels are wrapped in gray fabric, edged with a light-colored frame, and fixed with metal mounting brackets. A central laminated pedestal divides the workstation into practical storage zones. It combines two drawer fronts with an open center cubby, using a wood-grain and dark gray board body. The drawers operate on side-mounted ball-bearing slides with recessed metal pulls and are lockable-ready, making them suitable for stationery and personal or team supplies. The open cubby can hold a small CPU or shared documents. Cable management is integrated into the work surface through two 80 mm cable grommets placed beside the divider supports, with a cable tray depth of 120 mm for monitor and power leads. The rated distributed load is 80 kg per work surface, 20 kg per drawer, 15 kg for the open shelf, and 10 kg laterally at the center of a divider panel. Drawer hardware has a target of 50,000 opening cycles. The unit is freestanding, assembles on leveling feet, and does not require floor anchoring; rail-to-leg and pedestal connections are bolted. This workstation is appropriate for open-office clusters, processing teams, administrative departments, and paperwork or dual-monitor workflows. Procurement teams should plan for assembly access and freight handling, noting the 96 kg unit net weight reference, packaged gross weight reference of 180 kg per set, packaging volume reference of 1 cubic meter per set, and reference assembly time of 40 minutes per set. Delivery documentation may vary in carton count, so receiving teams should reconcile the shipment against the ordered components before installation.

Four-Person Face-to-Face Office Workstation with Divider Screens and Central Drawer Pedestal Specifications
