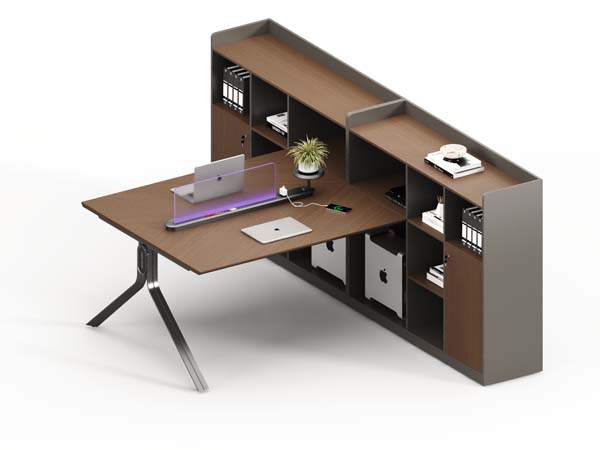

Product supplierWalnut Gray L-Shaped Executive Office Desk with Integrated Side Storage Shelving, 25mm E1 grade melamine-faced particleboard, walnut woodgrain finish
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 1800 × 1600 × 760 mm | |
|---|---|---|
| Main worktop thickness | 25 mm | |
| Fixed work surface height | 760 mm | |
| Main worktop depth | 800 mm | |
| Return storage unit depth | 550 mm | |
| Rear divider shelf height | 340 mm | |
| PVC edge band thickness | 2 mm | |
| Knee clearance height under main worktop | 725 mm | |
| Knee clearance width at front opening | 900 mm | |
| Open storage cubby internal height | 300 mm | |
| Lower cabinet compartment internal height | 600 mm | |
| Cable grommet diameter | 60 mm | |
| Splayed front leg wall thickness | 2 mm | |
| Metal storage partition frame thickness | 18 mm | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Uniform static worktop load capacity | 100 kg | |
|---|---|---|
| Per drawer/cabinet shelf static load | 25 kg | |
| Drawer slide open/close cycle rating | 50000 cycles | |
| Hinge open/close cycle rating for cabinet doors | 80000 cycles | |
| Net product weight | 115 kg | |
| Recommended maximum user load | 150 kg | |
| Surface scratch resistance rating | 2000 cycles | |
| Warranty period for structural components | 5 years | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Worktop panel | 25mm E1 grade melamine-faced particleboard, walnut woodgrain finish | |
|---|---|---|
| Storage partition frame | 18mm gray melamine-faced engineered wood, matte texture | |
| Front support legs | 2mm wall thickness powder-coated steel, splayed twin-prong design | |
| Storage cabinet panels | 18mm melamine-faced engineered wood, walnut/gray matching finish | |
| Edge banding | 2mm thick PVC, rounded impact-resistant edges | |
| Drawer slides | Cold-rolled steel three-section silent ball-bearing slides | |
| Cabinet locks | Zinc alloy keyed lock cores, keyed-alike option for multiple compartments | |
| Leveling feet | Reinforced nylon with adjustable steel threaded stem | |
| Laminate surface finish | Scratch-resistant matte acrylic laminate, anti-fingerprint coating | |
| Back paneling | 9mm thick high-density fiberboard, melamine backing | |
| Primary Panel Thickness | 25 mm; load-bearing top may use 40 mm composite build-up | |
| Edge Band Thickness | 2 mm |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Integrated rear open shelving | 6 open cubby compartments sized for binders, books and display items | |
|---|---|---|
| Lockable lower storage cabinets | 2 closed lockable compartments for CPU towers and confidential documents | |
| Raised top divider shelf | Continuous top shelf along return unit for decor and workspace division | |
| Integrated cable management | Recessed cable channel with 60mm diameter grommets to route device wiring | |
| Leveling foot adjustment | 15mm vertical adjustment range to compensate for uneven floor surfaces | |
| Lockable storage operation | Keyed central lock secures lower cabinet doors to prevent unauthorized access | |
| Cantilevered worktop support | Splayed steel legs support front worktop to create unobstructed open knee space | |
| Scratch-resistant work surface | Matte laminate finish resists scuffs from office equipment and daily use | |
| Cable Management Capacity | Reference capacity 10power/data cables; tray load 10 kg | |
| Reference Reassembly Count | Main joints should support 5controlled assembly cycles |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Executive private office | Suitable for manager and director offices, combines work surface and integrated storage | |
|---|---|---|
| Home office workspace | Fits dedicated home work rooms, provides storage and professional work surface | |
| Financial and administrative workstations | Supports document storage and daily computer-based office task work | |
| Small business open plan offices | Can be used as divided workstations with built-in partition for privacy | |
| Recommended pairing | Matches high-back executive office chairs with 480 mm seat height for ergonomic use | |
| Recommended accessory setup | Supports dual monitor arms, desk mats, and under-desk CPU holders without modification |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office worktables safety and strength requirements, applicable to structural load testing | |
|---|---|---|
| EN 14073-2:2004 | Office storage furniture safety requirements, applicable to integrated cabinet components | |
| EN 312:2010 | Particleboard specification, applicable to engineered wood panel material requirements |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk products standard for safety, durability and structural performance | |
|---|---|---|
| ANSI/BIFMA X5.9-2019 | Storage units standard for load and cycle performance of integrated cabinets |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to structural and finish performance | |
|---|---|---|
| GB 18580-2017 | Formaldehyde emission limit for engineered wood, required E1 grade ≤0.124mg/m³ for indoor use | |
| GB/T 4897.3-2003 | Particleboard specification for furniture use, applicable to worktop and cabinet panels |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to structural and finish performance; 2. GB 18580-2017: Formaldehyde emission limit for engineered wood, required E1 grade ≤0.124mg/m³ for indoor use; 3. GB/T 4897.3-2003: Particleboard specification for furniture use, applicable to worktop and cabinet panels; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
