PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Recommended users	2 users
Distributed work-surface load	100 kg total
Single work-surface point load	40 kg
Drawer load capacity	15 kg
Product net weight	95 kg
Seated leg clearance load envelope	690 mm vertical clearance
Warranty period	5 years
Color options	4 finishes
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Work surface	25 mm wood-composite core with wood-grain melamine laminate and sealed 2 mm edge banding
Privacy panels	40 mm semi-rigid core covered in grey woven fabric with light protective top trim
Structural frame	Silver powder-coated steel cylindrical legs with corner connector plates
Side storage cabinet	Grey laminated composite-board cabinet with one lower drawer and upper open cubby
Drawer hardware	Side-mounted telescopic slides with zinc-plated steel finish
Cable management	60 mm plastic grommet with removable brush or cap insert

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Two-seat divider layout	Central 320 mm-high screen separates two users while retaining shared side access for supervisor communication
Cable routing	60 mm grommet directs monitor and power cables from the work surface toward the under-desk zone
Storage configuration	Right return combines a 160 mm drawer and 400 mm open cubby for personal items and books
Freestanding installation	Bolt-together panel and metal-leg assembly requires floor placement without wall fixation

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan office	Suits two-person clerical or administrative clusters where visual separation and shared side storage are required
Call center or back-office area	Compact footprint supports monitors, keyboards, and personal storage while allowing dense row planning

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.5

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · WS-2P-SCR-L2400

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · WS-2P-SCR-L2400

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · WS-2P-SCR-L2400Open Export Tool

Quick Actions

Post an RFQ

Product Description

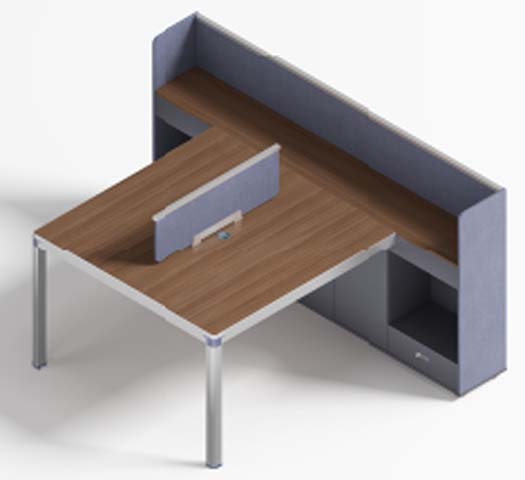

The Two-Person Panel Screen Workstation with Side Storage is an L-shaped office workstation designed for two users who benefit from defined personal space without complete isolation. Its layout places a central fabric-covered screen between the two seating positions, creating visual separation while keeping the shared side accessible for supervisor communication. A right-side return supports the storage zone and extends the practical work area, giving the workstation a structured, open-plan appearance suited to organized commercial interiors. The work surfaces use wood-grain melamine laminate over a wood-composite core, with sealed edge banding for a clean, resilient finish. The privacy panels feature a semi-rigid core covered in grey woven fabric and a light protective top trim, adding a softer visual texture to the desk landscape. Support is provided by silver powder-coated steel cylindrical legs with corner connector plates, while the freestanding assembly uses bolt-together panels and metal legs rather than wall fixation. The side storage cabinet is finished in grey laminated composite board and includes a lower drawer with side-mounted, zinc-plated steel telescopic slides, plus an upper open cubby for books and personal items. Functionally, the workstation balances individual workspace, privacy, cable management, and accessible storage. A cable grommet with a removable brush or cap insert directs monitor and power cables from the work surface into the under-desk area, where a cable tray helps contain routing. The drawer is suited to smaller personal or office items, while the open cubby provides quick-access storage. The stated work-surface capacities support typical office equipment, and the drawer capacity is intended for light to moderate storage use. Main seat clearance is dimensioned to accommodate seated use at each primary position. This model is suitable for open-plan offices, two-person clerical or administrative clusters, call centers, and back-office environments where monitor-based work and compact personal storage are required. Its divider layout supports dense row planning while still allowing straightforward communication from the shared side. It can also be considered for residential work rooms or study areas where two adjacent work positions are needed, provided the aesthetic and freestanding office form fit the space. Procurement planning should account for freight and installation handling, floor protection, and access routes before delivery. The product is supplied unbranded under model WS-2P-SCR-L2400 and carries a five-year warranty. Buyers should confirm the latest packaging details at order placement, allocate time for assembly, and verify that the L-shaped footprint, screen height, right-return storage orientation, and under-desk clearances match the intended seating layout and office planning standards.

Two-Person Panel Screen Workstation with Side Storage Specifications
