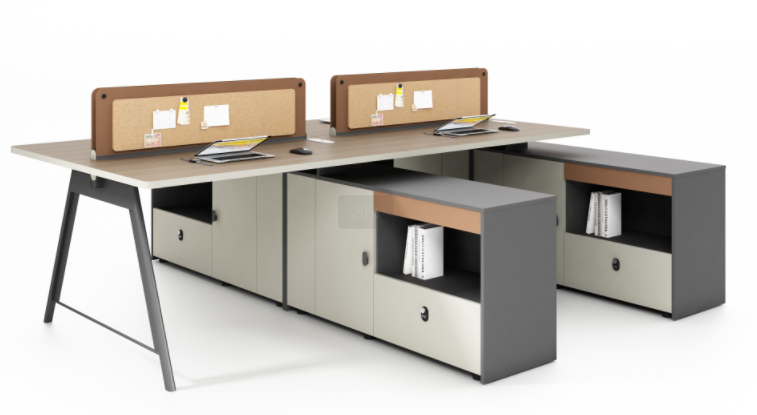

4-Person Face-to-Face Office Workstation Desk with Integrated Storage and Cork Divider Screens (model WS-4P-CRK-2800) is listed under Open Workstation. Dimensions: 2800 × 1200 × 1100 mm. Materials: 25mm thick E0-grade particleboard core, light oak wood-grain melamine facing, 2mm thick white PVC edge banding. Load capacity: 250 kg. Product Features: 4-station,layout,cork,pin-up,dividers,integrated,under-desk,storage,A-frame,steel,legs,grey-beige-brown,color,scheme,modular,knock-down,construction. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 2 supplier(s) are listed and you can request a quote online.
| Brand | MINGHUI | Model | WS-4P-CRK-2800 |
| Overall dimensions (W × D × H) | 2800 × 1200 × 1100 mm | Overall assembled dimensions (including screens and side cabinets) | 2800 x 1200 x 1100 mm |
| Single workstation desktop dimensions | 1200 x 600 mm | Desktop working surface height from floor | 750 mm |
| Cork screen height above desktop surface | 350 mm | Single cork divider screen dimensions | 1200 x 18 x 350 mm |
| Desktop panel thickness | 25 mm | PVC edge banding thickness (desktop and panels) | 2 mm |
| Seated knee clearance height under desktop | 620 mm | Knee clearance depth per seated position | 450 mm |
| Lower drawer internal dimensions (per station) | 400 x 500 x 150 mm | Open storage shelf internal dimensions (per station) | 400 x 300 x 250 mm |
| Closed storage cabinet internal dimensions (per station) | 400 x 500 x 500 mm | Side return cabinet extension beyond main desktop | 350 mm |
| A-frame steel leg tube dimensions | 50 x 30 x 1.5 mm | Cable grommet diameter (desktop wire access) | 60 mm |
| Finished Top Thickness | Approx. 30-50 mm | Effective Knee Clearance | Approx. 620-680 mm high and 700-900 mm wide per main seat |
| Leg / Support Section | Approx. 40-80 mm main section with 1.2-2.0 mm metal wall | Estimated total net weight of assembled unit | 210 kg |
| Desktop uniform static load capacity | 250 kg | Maximum number of users | 4 |
| Melamine desktop surface abrasion resistance | ≥2000 revolutions | Formaldehyde emission level for wood panels | ≤0.5 mg/L |
| Steel frame anti-rust performance | Salt spray resistance ≥48 hours | Drawer slide cycle durability | ≥50000 open/close cycles |
| Cabinet/drawer lock cycle durability | ≥10000 lock/unlock cycles | Top Static Load Reference | Approx. 80-150 kg uniformly distributed |
| Drawer Slide Load / Life | Approx. 25-45 kg/pair; 30,000-50,000 cycles | Hinge Opening Life | Acceptance target 40,000-80,000 cycles |
| Top Abrasion Reference | Acceptance target ≥4,000 abrasion cycles or finish-system test | Recommended Procurement Warranty | Structure 3-5 years; hardware 2-3 years; finish 1-2 years |
| Desktop substrate and finish | 25mm thick E0-grade particleboard core, light oak wood-grain melamine facing, 2mm thick white PVC edge banding | Partition screen construction | 18mm thick MDF core, natural cork front surface for pinning notes, brown soft PU leather edge trim, matte grey plastic end caps |
| Storage cabinet panels | 18mm thick E0-grade particleboard core, two-tone matte grey and light beige melamine finish, 1mm PVC edge banding | Support leg structure | 1.5mm wall thickness cold-rolled steel A-frame legs, 1.2mm wall thickness horizontal cross-brace, matte grey powder-coated finish |
| Drawer and cabinet hardware | Three-section full-extension ball-bearing steel drawer slides, zinc alloy cam locks with matching keys, black ABS plastic drawer/cabinet pulls | Adjustable foot glides | 10mm diameter nylon adjustable glides at all cabinet and leg base points, 15mm vertical adjustment range |
| Cable management components | 60mm diameter ABS plastic cable grommets, optional under-desk steel wire tray with 10kg load capacity | Screen mounting brackets | Matte grey steel mounting brackets fixed to desktop rear edge, secure screens without penetrating full desktop thickness |
| Drawer and cabinet interiors | Matching melamine interior finish, 18mm thick fixed cabinet shelves, 15mm thick drawer bottoms | Edge trim adhesive | Hot-melt PUR adhesive for PVC edge banding, resistant to temperature changes and edge delamination |
| Primary Panel Thickness | Approx. 18-25 mm; load-bearing top may use 25-40 mm composite build-up | Edge Band Thickness | Approx. 1.0-2.0 mm |
| Metal Frame Wall Thickness | Approx. 1.2-2.0 mm cold-rolled steel | Primary Connector Specification | Reference M6-M8 with at least 2 fixing points per main support |
| Reference Finish / Color Count | Recommended 3-6 top finishes and 1-3 frame colors | Workstation layout | Face-to-face 4-station configuration, divided by two longitudinal cork screens to create 4 independent personal work zones |
| Cork screen utility | Natural cork surface allows push-pin mounting of notes, memos, photos and documents without damaging the screen; soft PU edge trim provides impact protection for users | Per-station storage configuration | Each user position has 1 lockable lower drawer, 1 open middle display shelf, and 1 enclosed upper side cabinet, organized to separate locked personal storage, frequently accessed items and bulk supplies |
| Seated access design | Storage units are positioned at the outer edges of each workstation pair, leaving a central 900mm wide central knee well shared by opposite-facing users for unobstructed leg room | Cable management | Pre-drilled 60mm cable grommets at each workstation allow routing of power, monitor and network cables from desktop to under-desk wire management tray, eliminating exposed cable clutter |
| Leveling adjustment | Nylon adjustable glides at all support points allow 15mm of vertical adjustment to level the unit on uneven office floors, eliminating wobble | Locking storage security | Cam locks on each lower drawer secure personal items and confidential documents, all locks can be keyed alike or keyed different per user request |
| Modular assembly | Knock-down construction with cam-lock and bolt hardware allows disassembly for relocation, additional 2-person or 6-person workstation modules can be connected to expand seating capacity | Side cabinet function | Protruding end return cabinets add extra lateral storage for shared office supplies or end-user personal items, and act as side modesty panels for end seats |
| Surface maintenance | Melamine finish is stain-resistant and can be cleaned with standard office cleaning products, no special surface treatment required for daily use | Cable Management Capacity | Reference capacity 6-10 power/data cables; tray load approx. 5-10 kg |
| Reference Reassembly Count | Main joints should support 3-5 controlled assembly cycles | Number of shipping cartons per unit | 6 |
| Largest shipping carton dimensions | 2850 x 650 x 120 mm | Total shipping gross weight per unit | 235 kg |
| Total shipping volume per unit (CBM) | 0.68 CBM | Assembly time on site | 2.0 - 2.5 person-hours |
| Standard packaging materials | 5-layer corrugated cardboard cartons, expanded polystyrene corner protectors, EPE foam wrap for panels and screens, plastic hardware bags with labeled parts | 20ft GP container loading quantity | 36 units |
| 40ft HQ container loading quantity | 88 units | Reference Package Count | 1 set / 1-2 cartons |
| Reference Assembly Time | Approx. 15-40 minutes per set | Open plan office staff areas | Suited for 4-person team clusters in general office environments, provides individual separated work zones while supporting team collaboration |
| Finance and administration departments | Integrated locking drawer and enclosed cabinet storage provides secure storage for confidential documents, forms and office supplies for administrative staff | Startup and co-working spaces | Modular design allows flexible reconfiguration to match changing team sizes, cork screens support personalization of individual workspaces |
| Back-office operation centers | Durable commercial-grade construction supports 8+ hours of daily use in high-utilization operational work environments | Small business office fit-outs | All-in-one integrated design eliminates need for separate desks and storage cabinets, reduces fit-out costs and installation time for small office spaces |
| Call center and customer service teams | Screen dividers reduce visual distraction between adjacent staff while allowing easy communication between team members seated face-to-face | Recommended matching configuration | Pairs with mid-back ergonomic task chairs with seat height 420-520mm, under-desk mobile CPU holders, and monitor arms for optimal ergonomic setup |
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 2800 × 1200 × 1100 mm | |
|---|---|---|
| Overall assembled dimensions (including screens and side cabinets) | 2800 x 1200 x 1100 mm | |
| Single workstation desktop dimensions | 1200 x 600 mm | |
| Desktop working surface height from floor | 750 mm | |
| Cork screen height above desktop surface | 350 mm | |
| Single cork divider screen dimensions | 1200 x 18 x 350 mm | |
| Desktop panel thickness | 25 mm | |
| PVC edge banding thickness (desktop and panels) | 2 mm | |
| Seated knee clearance height under desktop | 620 mm | |
| Knee clearance depth per seated position | 450 mm | |
| Lower drawer internal dimensions (per station) | 400 x 500 x 150 mm | |
| Open storage shelf internal dimensions (per station) | 400 x 300 x 250 mm | |
| Closed storage cabinet internal dimensions (per station) | 400 x 500 x 500 mm | |
| Side return cabinet extension beyond main desktop | 350 mm | |
| A-frame steel leg tube dimensions | 50 x 30 x 1.5 mm | |
| Cable grommet diameter (desktop wire access) | 60 mm | |
| Finished Top Thickness | Approx. 30-50 mm | |
| Effective Knee Clearance | Approx. 620-680 mm high and 700-900 mm wide per main seat | |
| Leg / Support Section | Approx. 40-80 mm main section with 1.2-2.0 mm metal wall |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Estimated total net weight of assembled unit | 210 kg | |
|---|---|---|
| Desktop uniform static load capacity | 250 kg | |
| Maximum number of users | 4 | |
| Melamine desktop surface abrasion resistance | ≥2000 revolutions | |
| Formaldehyde emission level for wood panels | ≤0.5 mg/L | |
| Steel frame anti-rust performance | Salt spray resistance ≥48 hours | |
| Drawer slide cycle durability | ≥50000 open/close cycles | |
| Cabinet/drawer lock cycle durability | ≥10000 lock/unlock cycles | |
| Top Static Load Reference | Approx. 80-150 kg uniformly distributed | |
| Drawer Slide Load / Life | Approx. 25-45 kg/pair; 30,000-50,000 cycles | |
| Hinge Opening Life | Acceptance target 40,000-80,000 cycles | |
| Top Abrasion Reference | Acceptance target ≥4,000 abrasion cycles or finish-system test | |
| Recommended Procurement Warranty | Structure 3-5 years; hardware 2-3 years; finish 1-2 years |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Desktop substrate and finish | 25mm thick E0-grade particleboard core, light oak wood-grain melamine facing, 2mm thick white PVC edge banding | |
|---|---|---|
| Partition screen construction | 18mm thick MDF core, natural cork front surface for pinning notes, brown soft PU leather edge trim, matte grey plastic end caps | |
| Storage cabinet panels | 18mm thick E0-grade particleboard core, two-tone matte grey and light beige melamine finish, 1mm PVC edge banding | |
| Support leg structure | 1.5mm wall thickness cold-rolled steel A-frame legs, 1.2mm wall thickness horizontal cross-brace, matte grey powder-coated finish | |
| Drawer and cabinet hardware | Three-section full-extension ball-bearing steel drawer slides, zinc alloy cam locks with matching keys, black ABS plastic drawer/cabinet pulls | |
| Adjustable foot glides | 10mm diameter nylon adjustable glides at all cabinet and leg base points, 15mm vertical adjustment range | |
| Cable management components | 60mm diameter ABS plastic cable grommets, optional under-desk steel wire tray with 10kg load capacity | |
| Screen mounting brackets | Matte grey steel mounting brackets fixed to desktop rear edge, secure screens without penetrating full desktop thickness | |
| Drawer and cabinet interiors | Matching melamine interior finish, 18mm thick fixed cabinet shelves, 15mm thick drawer bottoms | |
| Edge trim adhesive | Hot-melt PUR adhesive for PVC edge banding, resistant to temperature changes and edge delamination | |
| Primary Panel Thickness | Approx. 18-25 mm; load-bearing top may use 25-40 mm composite build-up | |
| Edge Band Thickness | Approx. 1.0-2.0 mm | |
| Metal Frame Wall Thickness | Approx. 1.2-2.0 mm cold-rolled steel | |
| Primary Connector Specification | Reference M6-M8 with at least 2 fixing points per main support | |
| Reference Finish / Color Count | Recommended 3-6 top finishes and 1-3 frame colors |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Workstation layout | Face-to-face 4-station configuration, divided by two longitudinal cork screens to create 4 independent personal work zones | |
|---|---|---|
| Cork screen utility | Natural cork surface allows push-pin mounting of notes, memos, photos and documents without damaging the screen; soft PU edge trim provides impact protection for users | |
| Per-station storage configuration | Each user position has 1 lockable lower drawer, 1 open middle display shelf, and 1 enclosed upper side cabinet, organized to separate locked personal storage, frequently accessed items and bulk supplies | |
| Seated access design | Storage units are positioned at the outer edges of each workstation pair, leaving a central 900mm wide central knee well shared by opposite-facing users for unobstructed leg room | |
| Cable management | Pre-drilled 60mm cable grommets at each workstation allow routing of power, monitor and network cables from desktop to under-desk wire management tray, eliminating exposed cable clutter | |
| Leveling adjustment | Nylon adjustable glides at all support points allow 15mm of vertical adjustment to level the unit on uneven office floors, eliminating wobble | |
| Locking storage security | Cam locks on each lower drawer secure personal items and confidential documents, all locks can be keyed alike or keyed different per user request | |
| Modular assembly | Knock-down construction with cam-lock and bolt hardware allows disassembly for relocation, additional 2-person or 6-person workstation modules can be connected to expand seating capacity | |
| Side cabinet function | Protruding end return cabinets add extra lateral storage for shared office supplies or end-user personal items, and act as side modesty panels for end seats | |
| Surface maintenance | Melamine finish is stain-resistant and can be cleaned with standard office cleaning products, no special surface treatment required for daily use | |
| Cable Management Capacity | Reference capacity 6-10 power/data cables; tray load approx. 5-10 kg | |
| Reference Reassembly Count | Main joints should support 3-5 controlled assembly cycles |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Number of shipping cartons per unit | 6 | |
|---|---|---|
| Largest shipping carton dimensions | 2850 x 650 x 120 mm | |
| Total shipping gross weight per unit | 235 kg | |
| Total shipping volume per unit (CBM) | 0.68 CBM | |
| Assembly time on site | 2.0 - 2.5 person-hours | |
| Standard packaging materials | 5-layer corrugated cardboard cartons, expanded polystyrene corner protectors, EPE foam wrap for panels and screens, plastic hardware bags with labeled parts | |
| 20ft GP container loading quantity | 36 units | |
| 40ft HQ container loading quantity | 88 units | |
| Reference Package Count | 1 set / 1-2 cartons | |
| Reference Assembly Time | Approx. 15-40 minutes per set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open plan office staff areas | Suited for 4-person team clusters in general office environments, provides individual separated work zones while supporting team collaboration | |
|---|---|---|
| Finance and administration departments | Integrated locking drawer and enclosed cabinet storage provides secure storage for confidential documents, forms and office supplies for administrative staff | |
| Startup and co-working spaces | Modular design allows flexible reconfiguration to match changing team sizes, cork screens support personalization of individual workspaces | |
| Back-office operation centers | Durable commercial-grade construction supports 8+ hours of daily use in high-utilization operational work environments | |
| Small business office fit-outs | All-in-one integrated design eliminates need for separate desks and storage cabinets, reduces fit-out costs and installation time for small office spaces | |
| Call center and customer service teams | Screen dividers reduce visual distraction between adjacent staff while allowing easy communication between team members seated face-to-face | |
| Recommended matching configuration | Pairs with mid-back ergonomic task chairs with seat height 420-520mm, under-desk mobile CPU holders, and monitor arms for optimal ergonomic setup |
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office furniture - Work tables and desks - Part 1: Dimensions | |
|---|---|---|
| EN 527-2:2016 | Office furniture - Work tables and desks - Part 2: Mechanical safety requirements | |
| EN 13986:2004+A1:2015 | Wood-based panels for use in construction - Characteristics, evaluation of conformity and marking | |
| EN 15372:2008+A1:2016 | Furniture - Strength, durability and safety - Requirements for non-domestic storage furniture |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk Products - Tests | |
|---|---|---|
| ANSI/BIFMA X5.9-2019 | Storage Units - Tests | |
| ANSI/BIFMA M7.1-2020 | Standard Test Method for Determining VOC Emissions from Office Furniture Systems, Components and Seating |
Standards applicable to China-market projects
| GB/T 3326-2016 | Office furniture - Desk and chair dimensions and classification | |
|---|---|---|
| GB/T 3324-2017 | General technical requirements for wooden furniture | |
| GB 18580-2017 | Indoor decorating and refurbishing materials - Limit of formaldehyde emission from wood-based panels and finishing products | |
| GB/T 4897.3-2015 | Particleboard - Part 3: Requirements for furniture-grade particleboard |
This product must meet the following technical requirements: 1. GB/T 3326-2016: Office furniture - Desk and chair dimensions and classification; 2. GB/T 3324-2017: General technical requirements for wooden furniture; 3. GB 18580-2017: Indoor decorating and refurbishing materials - Limit of formaldehyde emission from wood-based panels and finishing products; 4. GB/T 4897.3-2015: Particleboard - Part 3: Requirements for furniture-grade particleboard; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
