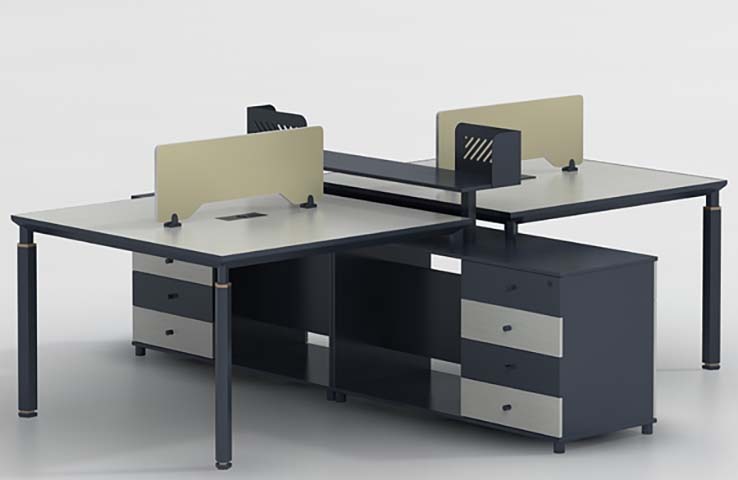

Name: Four-Person Face-to-Face Office Workstation with Integrated Drawers and Privacy Dividers
Brand: aibi furniture
SKU: W651V3

Time

Field

Original Value

Corrected Value

Note / Status

No correction records yet. Found an error? Click the flag at the end of a row to report it.

PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	2800 × 2400 × 750 mm
Overall assembled dimensions	2800 x 2400 x 750 mm
Single work surface dimensions per seat	1400 x 600 mm
Desktop thickness	50 mm
Knee clearance height under desktop	650 mm
Privacy divider height above desktop	300 mm
Central cable shelf height above desktop	200 mm
Drawer pedestal height	600 mm
Support leg diameter	60 mm
Edge band thickness	2 mm
Cable grommet diameter	80 mm
Drawer interior usable depth	450 mm
Adjustable foot height adjustment range	15 mm
Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Total product net weight	100 kg
Static load capacity per work surface	120 kg
Drawer slide cycle life	50000 cycles
Surface scratch resistance	2 N
Formaldehyde emission grade	E1
Recommended maximum user weight per seat	150 kg
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Life	Acceptance target 80000 cycles
Top Abrasion Reference	Acceptance target ≥4,000 abrasion cycles or finish-system test

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Desktop core	High-density particle board
Desktop surface finish	Matte melamine laminate
Edge banding	PVC edging
Support legs	Powder-coated tubular steel
Privacy dividers	Rigid melamine panel with fabric accent end caps
Drawer cabinet body	18mm thick engineered wood panel
Hardware components	Cold-rolled steel drawer slides and handles
Adjustable feet	Reinforced nylon with steel threaded insert
Central cable shelf	1.2mm thick cold-rolled steel panel
Primary Panel Thickness	25 mm; load-bearing top may use 40 mm composite build-up
Edge Band Thickness	2 mm
Metal Frame Wall Thickness	2 mm cold-rolled steel

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Four independent work positions	Face-to-face opposing layout for 4 seated staff
Integrated drawer storage per side	3 drawers per end pedestal for personal file storage
Desk-mounted privacy dividers	Fixed partitions between adjacent seats for visual separation
Central elevated cable management shelf	Shared raised channel for routing power and data cables
Desktop cable access cutouts	Integrated wire ports on each work surface for cable routing
Open central knee wells	Unobstructed leg space for each seated user position
Floor leveler adjustment	Threaded adjustable feet on all leg and cabinet bases
Modular knock-down assembly	Flat-pack construction for on-site assembly
Cable Management Capacity	Reference capacity 10power/data cables; tray load 10 kg
Reference Reassembly Count	Main joints should support 5controlled assembly cycles

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open plan office staff work areas	4-person cluster layout for team-based office environments
Small business team workspaces	Compact shared station for startup or department teams
Corporate back-office departments	High-density seating for admin, operations, or finance teams
Co-working shared office spaces	Flexible multi-seat unit for dedicated member workstations
Government and public institution offices	Durable standard configuration for civil servant work positions

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 527-1:2011	Office work tables - Part 1: Dimensions
EN 527-2:2016	Office work tables - Part 2: Safety requirements
EN 13722:2004	Office furniture - Storage units

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.5-2021	Desk Products - Tests for durability and stability
ANSI/BIFMA X5.9-2019	Storage Units - Safety and durability

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture
GB/T 3327-2016	Office furniture - desks and tables
GB 18584-2001	Formaldehyde emission limit for wooden furniture

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture;
2. GB/T 3327-2016: Office furniture - desks and tables;
3. GB 18584-2001: Formaldehyde emission limit for wooden furniture;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · OFW-4P-F2F-DR-001

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · OFW-4P-F2F-DR-001

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · OFW-4P-F2F-DR-001Open Export Tool

Quick Actions

Post an RFQ

Product Description

The OFW-4P-F2F-DR-001 four-person face-to-face office workstation from aibi furniture is a modular, two-tone shared desk solution engineered for collaborative yet individual-focused work environments. Its layout arranges four independent work positions in a face-to-face opposing configuration, with fixed desk-mounted privacy dividers rising above each desktop to deliver clear visual separation between adjacent seats. A central elevated cold-rolled steel cable shelf sits between the two rows of work surfaces, positioned to hold shared power and data routing, while each individual work surface includes integrated cable access cutouts to keep desktop wiring tidy. Open, unobstructed central knee wells ensure comfortable leg room for every seated user, with threaded adjustable feet fitted to all support leg and cabinet bases to level the unit across uneven floor surfaces. Each end of the workstation incorporates a pedestal with three integrated drawers, providing dedicated personal file storage for users on both sides of the cluster.
The desk’s work surfaces are built with a high-density particleboard core, finished with scratch-resistant matte melamine laminate and sealed with durable PVC edge banding. Support legs are constructed from powder-coated tubular steel, paired with privacy dividers made of rigid melamine panels with fabric accent end caps. Drawer cabinets use 18mm thick engineered wood panels, fitted with cold-rolled steel drawer slides and matching hardware handles, while adjustable feet feature reinforced nylon construction with steel threaded inserts for stable long-term placement. The unit meets E1 formaldehyde emission standards, with each work surface rated for static load capacity appropriate for regular office equipment, and drawer slides tested for extended operational cycle life.
This workstation is suited for a wide range of commercial work settings, including open-plan office staff work areas arranged for team-based workflows, compact small business and startup team spaces, high-density corporate back-of-house departments such as admin, operations and finance, dedicated co-working member workstations, and standard government and public institution office layouts. Procurement teams should note the unit ships across multiple cartons, with a documented reference assembly time for on-site installation, and plan for appropriate freight handling aligned with the total packaged weight and volume. The modular configuration supports clustered space planning, delivering a balanced mix of shared team proximity and personal, separated work space for groups of four staff.

Four-Person Face-to-Face Office Workstation with Integrated Drawers and Privacy Dividers Specifications
