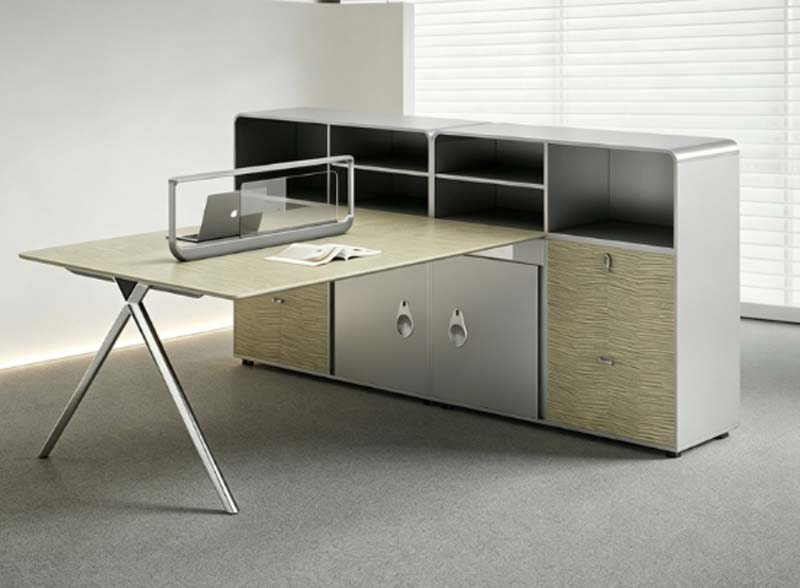

Product supplierL-Shaped Executive Office Desk with Integrated Storage Credenza and Desktop Divider, E0-grade engineered wood with light wood grain melamine finish
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 2450 × 1850 × 750 mm | |
|---|---|---|
| Worktop thickness | 50 mm | |
| Knee clearance height under worktop | 650 mm | |
| Main worktop depth | 800 mm | |
| Credenza return depth | 500 mm | |
| Upper open shelf compartment height | 350 mm | |
| Desktop divider screen height above worktop | 300 mm | |
| Chrome X-leg footprint diameter | 800 mm | |
| Edge band thickness | 2 mm | |
| Lower storage cabinet internal height | 600 mm | |
| Cable grommet diameter | 80 mm | |
| Adjustable foot height range | 15 mm | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Total desktop static load capacity | 150 kg | |
|---|---|---|
| Drawer slide cycle durability | 50000 cycles | |
| Door hinge cycle durability | 100000 cycles | |
| Surface abrasion resistance | 2000 cycles | |
| Net product weight | 185 kg | |
| Recommended user capacity | 1 person | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles | |
| Top Abrasion Reference | Acceptance target ≥4,000 abrasion cycles or finish-system test |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Worktop panel | E0-grade engineered wood with light wood grain melamine finish | |
|---|---|---|
| Gray cabinet door panels | E0-grade engineered wood with matte gray melamine finish | |
| Wood-grain cabinet door panels | E0-grade engineered wood with textured light wood grain melamine finish | |
| Support leg | Polished chrome-plated steel tube, X-form welded construction | |
| Desktop divider frame | Polished chrome-plated steel tubular frame with rounded corners | |
| Divider panel | Clear transparent acrylic panel | |
| Cabinet hardware pulls | Recessed zinc alloy teardrop-style pulls with matte silver finish | |
| Drawer slides | Three-section full-extension ball-bearing steel slides | |
| Cabinet base levelers | Nylon and steel adjustable foot glides | |
| Upper shelf interior lining | Matte black laminate interior lining | |
| Edge banding | 2mm thick PVC edge banding matching panel finishes, rounded profile | |
| Primary Panel Thickness | 25 mm; load-bearing top may use 40 mm composite build-up |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Storage configuration | 4 open upper display shelves, 3 lower closed storage compartments, 1 lockable filing drawer | |
|---|---|---|
| Cable management | Concealed wire channels under worktop with 80mm grommet openings for power/data routing | |
| Level adjustment | 15mm height adjustable feet on credenza base and support leg to compensate for uneven floors | |
| Workspace division | Framed acrylic desktop divider screen mounted on front work edge for visual privacy between workstations | |
| Drawer locking | Centralized concealed lock system secures lower filing drawers and storage compartments | |
| Door operation | Swing-hinged cabinet doors with 110-degree opening angle for access to CPU and stored items | |
| Return orientation | Field-reversible storage return can be installed for left or right-handed desk configuration | |
| Modesty panel | Full-height integrated modesty panel conceals under-desk knee area from front view | |
| Cable Management Capacity | Reference capacity 10power/data cables; tray load 10 kg | |
| Reference Reassembly Count | Main joints should support 5controlled assembly cycles |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Private executive office | Suitable for manager and director private offices, provides dedicated work surface and integrated file storage | |
|---|---|---|
| Open-plan managerial workstation | Usable in open office layouts with integrated divider for visual privacy between adjacent work areas | |
| Home office executive setup | Appropriate for high-end home offices requiring ample work space and concealed storage for work documents | |
| Small meeting workspace | Supports informal 2-person meetings at the work surface with extra lateral space for documents and devices | |
| Paperwork and digital work | Accommodates laptop, monitor, documents and office supplies with separate storage for files and central processing unit |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office worktables safety and strength requirements, applicable to structural stability and load ratings | |
|---|---|---|
| EN 527-2:2016 | Office worktables dimensional and safety requirements, applicable to worktop height and clearance | |
| EN 13722:2004 | Office furniture storage units performance requirements, applicable to credenza cabinet durability |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| North America procurement and testing reference | Recommended references: ANSI/BIFMA X5.5 |
|---|
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to desk panel construction and finish quality | |
|---|---|---|
| GB/T 3327-2018 | Performance requirements for office desks, applicable to load capacity and structural stability | |
| GB 18580-2017 | Formaldehyde emission limits for wood-based panels, applicable to E0-grade panel materialAcceptance |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to desk panel construction and finish quality; 2. GB/T 3327-2018: Performance requirements for office desks, applicable to load capacity and structural stability; 3. GB 18580-2017: Formaldehyde emission limits for wood-based panels, applicable to E0-grade panel materialAcceptance; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
