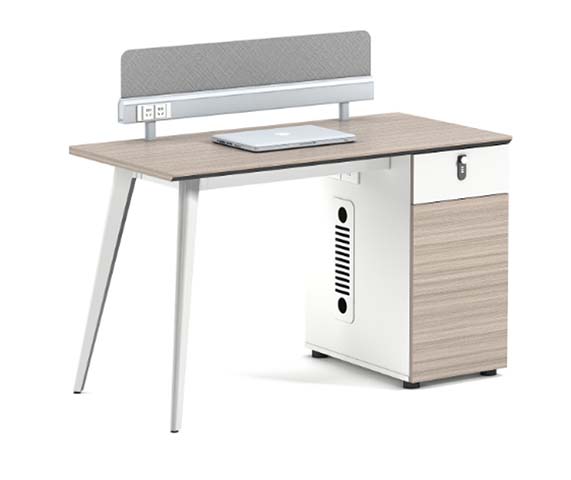

Single-Person Open-Plan Office Workstation Desk with Rear Screen, Integrated Power and Fixed Lockable Pedestal (model WS-1P-SCRN-LKPD-16080) is listed under Open Workstation, with overall dimensions of 1600 × 800 × 1200 mm and main material of Particle‑board (PB). Load capacity: 91 kg. Certifications: Modern,two-tone,finish,steel-wood,construction,integrated,power,lockable,storage,cable,management,open-plan,divider,screen. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W×D×H) | 1600 × 800 × 1200 mm | |
|---|---|---|
| Work surface height | 750 mm | |
| Worktop thickness | 25 mm | |
| PVC edgeband thickness | 3 mm | |
| Divider screen height above desk | 450 mm | |
| Knee clearance width (central opening) | 900 mm | |
| Knee clearance height under worktop | 680 mm | |
| Fixed pedestal width (right side) | 400 mm | |
| Pedestal cabinet door height | 560 mm | |
| Modesty panel height | 400 mm | |
| Splayed metal leg diameter | 50 mm | |
| Leveling foot adjustment range | 20 mm | |
| Integrated power module grommet diameter | 60 mm | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Work surface static load capacity | 91 kg | |
|---|---|---|
| Suggested maximum user weight (seated use) | 120 kg | |
| Desk net weight (assembled) | 75 kg | |
| Drawer slide cycle rating | 50000 cycles | |
| Lock mechanism cycle rating | 10000 cycles | |
| Laminate surface abrasion resistance | 2000 cycles | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles | |
| Top Abrasion Reference | Acceptance target ≥4,000 abrasion cycles or finish-system test |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Work surface and storage panels | 18mm particleboard core with thermally fused melamine laminate | |
|---|---|---|
| Edge trim | 3mm black PVC edgebanding | |
| Support legs and frame | Powder-coated white 1.2mm thick steel tubing | |
| Rear divider screen | Grey woven fabric upholstery over MDF core | |
| Modesty panel and cabinet doors | 15mm melamine-coated MDF | |
| Hardware and fasteners | Zinc-plated steel screws, cam locks, and ABS lock housing |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Integrated power module | Two duplex AC outlets mounted on rear screen rail | |
|---|---|---|
| Cable management system | Slotted vented cable pass-through on modesty panel, under-desk routing space | |
| Lockable pedestal storage | Key-locked top stationery drawer and lower woodgrain door cabinet | |
| Adjustable leveling feet | Threaded feet at all leg and pedestal base points |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open-plan office staff workstations | Designed for single-user daily computer and document work in shared office spaces | |
|---|---|---|
| Startup and co-working spaces | Flexible modular design suits flexible, reconfigurable open work environments |
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office work tables: Dimensions and safety requirements | |
|---|---|---|
| EN 527-2:2016 | Office work tables: Mechanical safety requirements | |
| EN 1335-1:2020 | Office work furniture: Office chairs dimensions |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk Products: Safety and performance standard | |
|---|---|---|
| ANSI/BIFMA X5.9-2019 | Storage Units: Safety and performance |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture | |
|---|---|---|
| GB/T 3327-2017 | Office furniture: desks and tables | |
| GB 24821-2009 | Safety requirements for office furniture |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture; 2. GB/T 3327-2017: Office furniture: desks and tables; 3. GB 24821-2009: Safety requirements for office furniture; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
