PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Seating capacity	4 users
Distributed worktop load	80 kg per seat position
Pedestal drawer load	15 kg per drawer
Lower cabinet shelf load	20 kg
Product net weight	160 kg
Leveling adjustment	10 mm at each foot plate
Drawer slide cycle life	50000 open-close cycles
Workstation service life target	8 years
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Work surface	25 mm melamine-faced engineered wood board with dark walnut woodgrain finish
Edge banding	1.5 mm PVC or ABS impact-resistant edge banding
Modesty and support panels	18 mm gray melamine-faced composite panels with square exposed edge
Privacy screens	Upholstered fabric divider panels over rigid board core
Pedestal cabinet body	18 mm gray and woodgrain melamine-faced engineered board
Drawer hardware	Side-mounted ball-bearing metal slides with round knob or lock cylinder

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Workstation layout	Four work positions arranged face-to-face in two paired stations, with a central privacy screen and independent knee bays.
Cable management	Two 80 mm desktop grommets route laptop and device cables through the work surface toward the under-desk service zone.
Privacy separation	The 350 mm-high center screen reduces direct sightlines while retaining seated discussion visibility above the panel.
Under-desk storage	Each visible pedestal provides one shallow top drawer for stationery and a 430 mm lower compartment for files or personal items.

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Carton count	4 flat-packed cartons
Total packaging volume	1.10 CBM
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan office	Suitable for 4-person team clusters where individual laptop work, low visual privacy, and shared cable access are required.
Project or administrative workspace	Supports call-center, accounts, procurement, or back-office teams through paired seats and under-desk personal storage.

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 527-2 office desk mechanical safety	Apply to desk strength, vertical static load, stability, and durability acceptance.
EN 1022 furniture stability	Use to assess tipping resistance of the assembled desk and under-desk cabinets.
EN 16139 non-domestic seating strength	Only applicable if the matching task chairs are included in the purchase scope.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.5 Desk Products Test	Recommended for desk static load, fatigue, stability, and leg-strength acceptance.
ANSI/BIFMA X5.9 Storage Units	Recommended for the drawers, doors, locks, slides, and cabinet shelf loads.
ANSI/BIFMA e3 furniture sustainability credits	Use only if third-party material, low-emission, or recycled-content documentation is supplied.

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017 dimensions and structural assessment	Use for inspection of wooden office furniture dimensional accuracy, edge treatment, and stability.
GB/T 3325-2017 metal furniture hardware	Use if supplied drawer slides, brackets, or metal support parts require mechanical verification.
GB/T 10357 furniture strength tests	Specify desk vertical load, drawer durability, stability, and leg strength acceptance testing.
GB 18580-2017 formaldehyde emission	Require E1 or lower engineered-board emission documentation for the worktop and cabinet panels.

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017 dimensions and structural assessment: Use for inspection of wooden office furniture dimensional accuracy, edge treatment, and stability.;
2. GB/T 3325-2017 metal furniture hardware: Use if supplied drawer slides, brackets, or metal support parts require mechanical verification.;
3. GB/T 10357 furniture strength tests: Specify desk vertical load, drawer durability, stability, and leg strength acceptance testing.;
4. GB 18580-2017 formaldehyde emission: Require E1 or lower engineered-board emission documentation for the worktop and cabinet panels.;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · WS4-2800-1200-GRY-WAL

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · WS4-2800-1200-GRY-WAL

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · WS4-2800-1200-GRY-WALOpen Export Tool

Quick Actions

Post an RFQ

Product Description

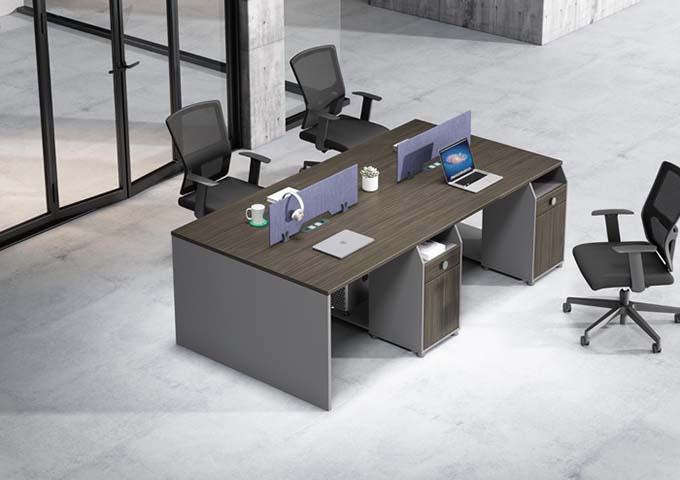

The Four-Person Panel-Based Workstation with Storage Pedestals is a modern office workstation designed for team-based seating in a compact, organized layout. Model WS2800-1200-GRY-WAL is offered without a brand label and uses a coordinated gray and dark walnut visual scheme suited to mainstream commercial interiors. Its form is based on a back-to-back, face-to-face arrangement for four users. Two paired stations create independent knee bays, while a central upholstered divider runs between the opposing seats. The center screen is 350 mm high, reducing direct sightlines between users while preserving visibility above the panel for seated discussion. Gray modesty and support panels give the workstation a structured, panel-based appearance, and the dark walnut woodgrain worktops provide a warmer contrasting surface. The work surfaces use 25 mm melamine-faced engineered wood board with a dark walnut woodgrain finish and a finished top thickness of 50 mm. Edges are protected by 1.5 mm PVC or ABS impact-resistant edge banding, with plastic edge trims included in the overall construction. Modesty and support panels are 18 mm gray melamine-faced composite panels with square exposed edges. Privacy panels consist of fabric-upholstered divider boards over a rigid core. The support leg section has an 80 mm main section with a 2 mm metal wall, and each foot plate provides 10 mm of leveling adjustment. Each main seat position offers 680 mm high and 900 mm wide effective knee clearance. The worktop is rated for a distributed load of 80 kg per seat position. Two 80 mm desktop cable grommets guide laptop and device cables into the under-desk service zone, where a cable tray with 120 mm depth helps contain wiring. Visible storage pedestals combine a shallow top drawer for stationery with a 430 mm lower compartment suited to files or personal items. Drawers use side-mounted ball-bearing metal slides with a round knob or lock cylinder, and are rated for 15 kg per drawer. Lower cabinet shelving is rated for 20 kg, with a slide cycle life of 50,000 open-close cycles. This configuration is appropriate for open-plan office clusters where four people need individual laptop space, low visual privacy, shared cable access, and nearby personal storage. It is also suitable for call centers, accounts offices, procurement teams, and general administrative or back-office workspaces. Procurement planning should account for a product net weight of 160 kg and packaged gross weight of 180 kg per set across four flat-packed cartons, with total packaging volume of 1.10 CBM. The main top is packed at 2500 by 1050 by 350 mm, while return and pedestal components are packed separately. The reference assembly time is 40 minutes per set, so installation access, floor leveling, and on-site assembly should be arranged in advance.
