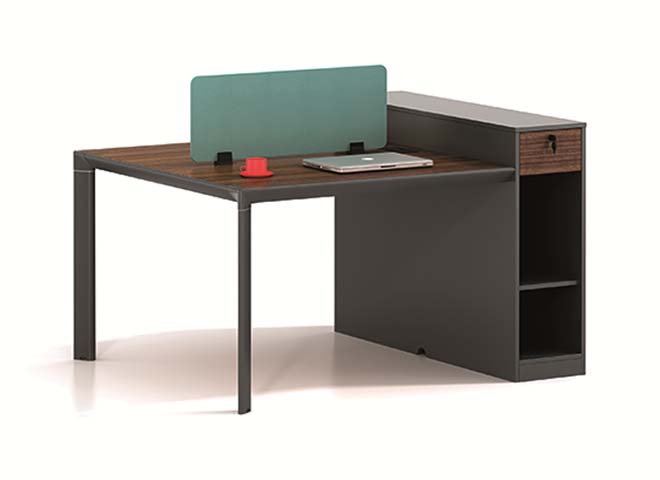

L-Shaped Single Staff Workstation Desk with Desktop Privacy Screen and Right Storage Return (model WS-L1500-DIV-ST) is listed under Open Workstation, with overall dimensions of 1500 × 1400 × 1200 mm and main material of Particle‑board (PB). Load capacity: 100 kg. Certifications: open-plan,workstation,L-shaped,layout,desktop,divider,integrated,side,storage,lockable,drawer. This page consolidates 6 groups of specifications, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (with screen) | 1500 x 1400 x 1200 mm | |
|---|---|---|
| Work surface height | 750 mm | |
| Main worktop depth | 600 mm | |
| Privacy screen height above desk | 450 mm | |
| Knee clearance width under main desk | 700 mm | |
| Knee clearance height under desk | 620 mm | |
| Right storage return width | 600 mm | |
| Right storage return depth | 400 mm | |
| Lower open shelf internal height | 280 mm | |
| Worktop thickness | 25 mm | |
| Support leg cross-section dimension | 50 mm | |
| Modesty panel height | 600 mm | |
| Primary Component Thickness | 40 mm according to load-bearing role | |
| Hardware / Moving-part Clearance | 5 mm operating clearance |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Worktop static load capacity | 100 kg | |
|---|---|---|
| Product net weight | 65 kg | |
| Recommended user weight for seated use | 110 kg | |
| Surface scratch resistance | 3000 cycles | |
| Drawer slide cycle rating | 50000 cycles | |
| Reference Static Load | 150 kg depending on category | |
| Moving-part Durability Reference | Acceptance target 50000 cycles | |
| Recommended Procurement Warranty | Structure 5 years; hardware 3 years |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Worktop construction | High-density particleboard core with walnut woodgrain melamine laminate, 2mm PVC edge banding | |
|---|---|---|
| Frame and legs | Powder-coated dark charcoal square steel tubing, wall thickness 1.5mm | |
| Privacy screen panel | Fabric-wrapped fiberboard core, teal matte finish, black metal mounting brackets | |
| Storage cabinet body | High-density particleboard with dark charcoal melamine finish, solid fixed shelves | |
| Drawer front | Walnut-effect melamine matching worktop, fitted with keyed cam lock | |
| Modesty panel | 18mm dark charcoal melamine particleboard, cable pass-through notch at bottom edge |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Cable management | Underside desk cable channel and bottom modesty panel cable notch for wire routing | |
|---|---|---|
| Storage drawer operation | Key-locked top drawer for secure small item storage, full-extension ball-bearing slides | |
| Privacy screen function | Clip-mounted desktop divider blocks direct line of sight for open-plan focused work | |
| Open shelf storage | Two fixed lower open shelves for quick access to binders and frequently used items |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Packaging Volume | 0.8 m³/set | |
| Reference Packaged Gross Weight | 120 kg/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open-plan office staff workstations | Designed for individual seated work in shared office spaces with desk-mounted privacy screening | |
|---|---|---|
| Small startup and coworking spaces | Compact L-shaped layout fits limited floor space with integrated storage to reduce clutter |
EU Market Access Requirements* EN Standards
Standards applicable to China-market projects
This product must meet the following technical requirements: 1. Technical standards and test reports must be supplied during tender or purchase confirmation; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
