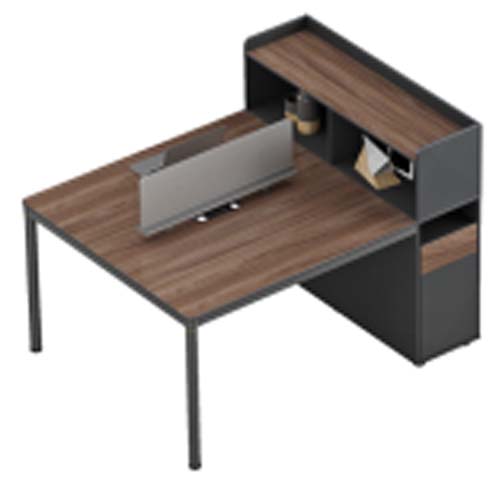

Two-Tone Walnut Black L-Shaped Office Desk with Attached Storage Hutch (model OD-LH-WB-1800) is listed under Open Workstation, with overall dimensions of 1800 × 1500 × 1690 mm and main material of Particle‑board (PB). Load capacity: 150 kg. Certifications: Industrial,style,two-tone,finish,L-shaped,workstation,integrated,rear,storage,hutch. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (with hutch) | 1800 x 1500 x 1690 mm | |
|---|---|---|
| Main work surface height | 760 mm | |
| Desktop thickness | 38 mm | |
| Main desktop panel size | 1200 x 600 mm | |
| Return desktop panel size | 1500 x 600 mm | |
| Seated knee clearance height | 680 mm | |
| Knee clearance width | 1100 mm | |
| Attached hutch depth | 380 mm | |
| Hutch open shelf internal height | 330 mm | |
| Lower hutch cabinet internal height | 540 mm | |
| Cable grommet diameter | 60 mm | |
| Cylindrical steel leg diameter | 30 mm | |
| PVC edge band thickness | 2 mm | |
| Steel leg wall thickness | 1.5 mm | |
| Wall anchor bracket thickness | 3 mm | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Desktop static load capacity | 150 kg | |
|---|---|---|
| Unit net weight | 146 kg | |
| Laminate surface abrasion resistance | 300 cycles | |
| Leveling foot adjustment range | 10 mm | |
| Wall anchor anti-tip load rating | 50 kg | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles | |
| Top Abrasion Reference | Acceptance target ≥4,000 abrasion cycles or finish-system test | |
| Recommended Procurement Warranty | Structure 5 years; hardware 3 years; finish 2 years |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Work surface core | 18mm particle board core with walnut thermally fused laminate | |
|---|---|---|
| Support legs | Powder-coated black cylindrical steel tubing | |
| Storage panel finish | Matte dark gray melamine on engineered wood | |
| Edge treatment | 2mm impact-resistant PVC edge banding | |
| Hardware | Zinc-plated steel cam lock fasteners and wall anchor brackets | |
| Cable management | ABS plastic cable grommets with brush inserts |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Storage configuration | 2-tier rear hutch with upper open shelves and lower enclosed cabinet | |
|---|---|---|
| Cable management | 2 desktop cable grommets route power/data cords to under-desk space | |
| Anti-tip security | Included wall anchoring hardware secures tall hutch to wall surface | |
| Leveling adjustment | Adjustable plastic foot pads on all leg bases stabilize desk on uneven floors |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Home office workspace | Fits single user home study setups with integrated storage to reduce desktop clutter | |
|---|---|---|
| Small business open office | Suitable for corner placement in startup or small office workstations |
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office work tables safety and strength requirements, applicable to structural performance | |
|---|---|---|
| EN 527-2:2016 | Office work tables mechanical safety test methods, applicable for commercial use |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk products safety and performance standard, recommended for commercial procurement verification |
|---|
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to desk panel and storage components | |
|---|---|---|
| GB/T 3327-2017 | Performance test methods for office desks and tables, applicable to structural load verification | |
| GB 18584-2001 | Formaldehyde emission limit for interior wooden furniture, mandatory for wood-based panels |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to desk panel and storage components; 2. GB/T 3327-2017: Performance test methods for office desks and tables, applicable to structural load verification; 3. GB 18584-2001: Formaldehyde emission limit for interior wooden furniture, mandatory for wood-based panels; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
