PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	2800 × 2400 × 1150 mm
Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Static load per work surface	80 kg
Drawer static load	15 kg
Open shelf load	10 kg
Seating capacity	2 users
Suggested occupant weight per station	120 kg
Distributed pedestal storage load per unit	40 kg
Unit net weight	118 kg
Surface point-load suitability	25 kg at 100 x 100 mm
Hardware cycle target	50,000 drawer operations
Top Static Load Reference	150 kg uniformly distributed

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Work surface	25 mm melamine-faced particleboard with sealed impact-resistant edge banding
Storage cabinet panels	18 mm melamine-faced particleboard carcass with matching edge banding
Outer support frame	Round silver powder-coated steel legs with splayed feet and floor glides
Privacy dividers	Dark framed composite panel with a smooth non-transparent face and silver lower rail
Drawer and door hardware	Steel telescopic drawer slides, hinged lower doors, and black integrated locks
Cable outlets	Black oval plastic cable grommets installed through vertical cabinet panels

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Seating configuration	Two users sit on opposite outer sides, each with a 1200 mm work surface and independent knee bay
Integrated storage	Each central pedestal provides one lockable top drawer, one open cubby, and one lower enclosed cabinet
Privacy separation	A 350 mm high rear screen blocks direct sight lines between facing users while retaining overhead visibility
Cable management	Dual oval grommets route laptop and monitor cables from the desktop into the pedestal cavity

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan office	Suits two-person facing clusters in general staff areas because each user has a separate surface, storage pedestal, and sight-line screen
Procurement layout planning	Can be arranged in repeated clusters of 2800 x 2400 mm with side aisles for cable access and chair movement

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.5

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · WS2-CAB-SCR-2800

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · WS2-CAB-SCR-2800

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · WS2-CAB-SCR-2800Open Export Tool

Quick Actions

Post an RFQ

Product Description

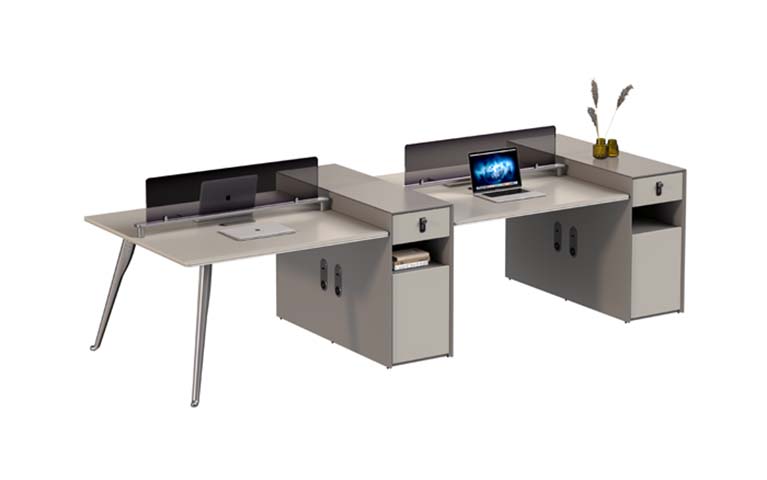

The Two-Person Facing Workstation with Central Pedestals and Privacy Screens is a structured office workstation designed for shared work settings where individual space, storage, and visual separation are required. Two users sit on opposite outer sides, each with a dedicated work surface and independent knee bay, while central pedestals form the functional core of the layout. A low rear privacy divider sits between the facing positions, blocking direct sight lines without closing off overhead visibility or making the arrangement feel enclosed. Its clean commercial appearance combines melamine-faced worktops and cabinet panels with silver-finish angled metal legs, dark framed privacy panels, and black cable and locking details. Construction balances panel-based storage with a steel support frame. The work surface uses melamine-faced particleboard with sealed, impact-resistant edge banding, while the storage cabinets use matching melamine-faced particleboard with coordinated edge banding. The round steel legs have a silver powder-coated finish, splayed feet, and floor glides. Each work surface is supported for an 80 kg static load, and the finished top thickness is 50 mm. The leg structure has an 80 mm main section with a 2 mm metal wall. Each main seating position provides 680 mm high and 900 mm wide effective knee clearance, and the workstation accommodates two users with a suggested occupant weight of 120 kg per station. Each central pedestal includes a lockable top drawer, an open cubby, and a lower enclosed cabinet, giving both users personal storage close at hand. The drawer is fitted with steel telescopic slides, the lower cabinet uses a hinged door, and the integrated locks are finished in black. Load capacity is 15 kg for each drawer, 10 kg for the open shelf, and 40 kg for distributed pedestal storage. Dual oval black plastic grommets pass through the vertical cabinet panels, routing laptop and monitor cables from the desktop into the pedestal cavity. An integrated cable tray with a 120 mm depth supports cable containment, while the cable openings are 80 mm in diameter. The workstation is well suited to open-plan offices, general staff areas, and residential workspaces that need two organized facing positions. It can be planned as repeated clusters of 2800 by 2400 mm, with side aisles retained for chair movement and cable access. The rear screen is 350 mm high, making it appropriate for focused individual tasks while preserving a collaborative room feel. Procurement teams should note that this unbranded model, WS2-CAB-SCR-2800, is supplied as one set and requires assembly, with a reference assembly time of 40 minutes per set. Planning should account for the unit net weight of 118 kg and packaged gross weight of 180 kg per set. The listed packaging reference identifies two cartons, while the dimensional packing record notes separate packing for the main top and return or pedestal; buyers should confirm the final carton count and delivery configuration with the supplier before installation scheduling.

Two-Person Facing Workstation with Central Pedestals and Privacy Screens Specifications
