PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Seating capacity	4 users
Work-surface distributed load	80 kg per individual work position
Concentrated desktop load	30 kg at any single support point
Mobile pedestal load	25 kg per cabinet
Drawer load per drawer	12 kg
total net weight	148 kg
Floor loading	44 kg per square meter
Caster rolling load	50 kg total capacity per pedestal set
Warranty period	5 years
Color options	2 visible finishes

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Worktop construction	25 mm melamine-faced wood-composite panel with sealed impact-resistant edge band
Frame and legs	Powder-coated square steel tube, 50 x 50 mm section, charcoal matte finish
Divider panels	20 mm fabric-wrapped acoustic panel on a rigid core, teal face with matching metal support clips
Mobile pedestals	Wood-composite cabinet with walnut drawer fronts, charcoal side panels, and four swivel casters
Privacy and modesty panels	18 mm charcoal melamine-faced composite panel
Hardware and cable fittings	Steel mounting clips, plastic 80 mm cable grommets, recessed drawer pulls, and 40 mm casters

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Four-user benching layout	Two-by-two back-to-face arrangement provides four independent 1400 mm work positions on one shared frame
Visual privacy division	Two low upholstered screens run along the centerline and separate facing users without blocking room light
Cable routing	Two visible round desk grommets allow monitor and power cables to pass from the work surface into the under-desk zone
Mobile personal storage	Four two-drawer pedestals roll under the worktop and can be repositioned for seated access or cleaning clearance

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan office benching	Suits four-person project zones where visual separation, cable access, and personal rolling storage are required
Administrative or staff workstation area	Provides a 750 mm seated work height and pedestal filing for daily computer and paperwork tasks

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 527-1:2011	Office desk safety, strength, and durability requirements for non-domestic work tables
EN 527-2:2002	Office desk dimensional requirements and mechanical test methods for seated workstations
EN 16139:2013	Strength, durability, and safety requirements for non-domestic seating-adjacent storage and work furniture
EN 15372:2015	Safety, strength, and durability requirements for non-domestic storage furniture
EN 717-1:2004	Wood-based panel formaldehyde emission classification, applicable to panel procurement acceptance

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.5-2021	Office desk products standard covering safety, dimensional integrity, strength, and fatigue testing
ANSI/BIFMA X5.9-2019	Storage seating and mobile storage test criteria applicable to pedestal drawers and casters
ANSI/BIFMA e3-2019	Furniture sustainability standard for panel materials, chemical emissions, and supplier documentation

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable to worktops, panels, edge quality, and storage cabinets
GB/T 3325-2017	Metal furniture technical requirements, applicable to the steel leg and rail system
GB 18580-2017	Formaldehyde emission limit for wood-based panels, applicable to composite desk and pedestal components
GB/T 10357.1-2013	Table mechanical test method for strength and stability, applicable to desk structural acceptance
GB/T 10357.5-2011	Drawer and sliding component durability test, applicable to mobile pedestal drawers

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to worktops, panels, edge quality, and storage cabinets;
2. GB/T 3325-2017: Metal furniture technical requirements, applicable to the steel leg and rail system;
3. GB 18580-2017: Formaldehyde emission limit for wood-based panels, applicable to composite desk and pedestal components;
4. GB/T 10357.1-2013: Table mechanical test method for strength and stability, applicable to desk structural acceptance;
5. GB/T 10357.5-2011: Drawer and sliding component durability test, applicable to mobile pedestal drawers;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · WS-4P-BB-2800-1200

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · WS-4P-BB-2800-1200

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · WS-4P-BB-2800-1200Open Export Tool

Quick Actions

Post an RFQ

Product Description

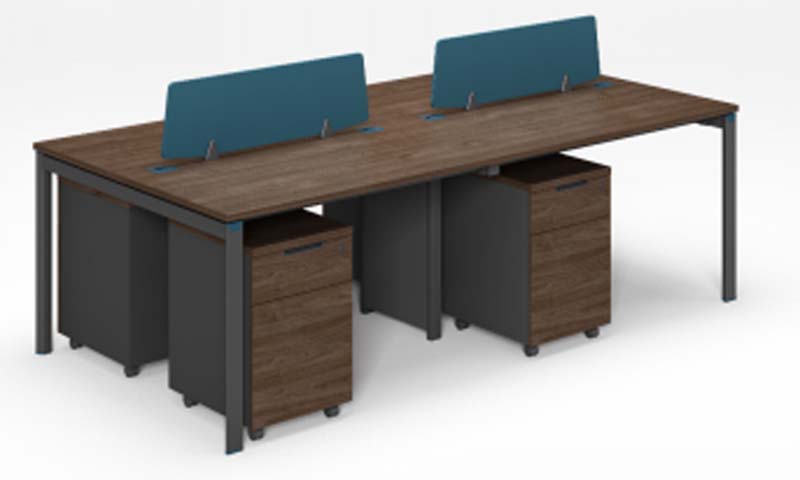

The Four-Person Back-to-Back Workstation with Divider Screens and Mobile Pedestals is an unbranded office benching solution, model WS-4P-BB-2800designed to organize four users on one shared frame. Its two-by-two, back-to-back arrangement creates four independent work positions, each 1400 mm wide, while a low pair of teal fabric-covered divider screens runs along the centerline. These screens separate facing users for visual privacy without blocking room light, and matching metal support clips keep the layout clean and structured. Visually, the workstation combines rectangular melamine-faced worktops with a charcoal matte powder-coated steel frame. The worktop is built from a 25 mm melamine-faced wood-composite panel with a sealed impact-resistant edge band, and the finished top thickness is 50 mm. Square steel tube legs and support rails measure 50 by 50 mm, with an 80 mm main support section and 2 mm metal wall. Privacy and modesty panels use 18 mm charcoal melamine-faced composite board, while the four mobile pedestals feature walnut drawer fronts, charcoal side panels, recessed pulls, wood-composite construction, and four swivel casters. Functionality is centered on productive daily office use. Two visible round 80 mm cable grommets allow monitor and power cables to pass from the desktop into the under-desk area, where a cable tray with 120 mm depth supports routing. Each main seat offers 680 mm high and 900 mm wide effective knee clearance, and the 750 mm seated work height supports computer and paperwork tasks. Four two-drawer pedestals roll beneath the worktop, giving each user personal filing storage that can be repositioned for access or cleaning clearance. The system is rated for four users, with an 80 kg distributed work-surface load per individual position, a 30 kg concentrated load at any single support point, 25 kg per mobile cabinet, and 12 kg per drawer. Its net weight is 148 kg, with floor loading of 44 kg per square meter. This workstation is suitable for open-plan project zones, administrative areas, and staff workspaces requiring compact four-person benching, visual division, cable management, and rolling personal storage. Procurement planning should account for assembly time of 40 minutes per set, packaged gross weight of 180 kg, packaging volume of 1 cubic meter, and delivery in cartons; supplied logistics references list both a two-carton set reference and a four-carton packaged gross-weight reference, so shipment configuration should be confirmed before ordering.

Four-Person Back-to-Back Workstation with Divider Screens and Mobile Pedestals Specifications
