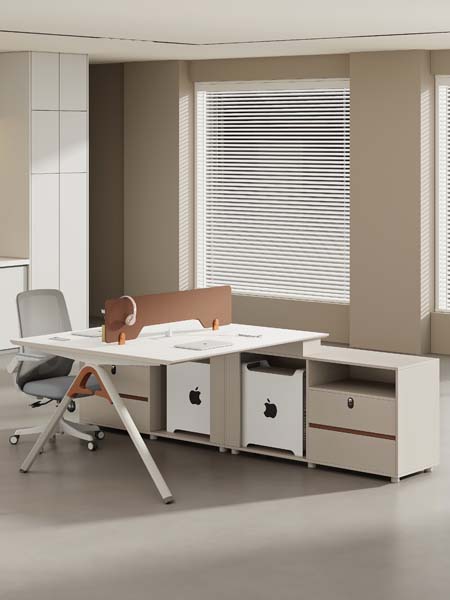

Product supplier2-Person Face-to-Face Office Workstation with Integrated Side Storage Return, 25mm E1-grade melamine-faced MDF
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 2400 × 2400 × 750 mm | |
|---|---|---|
| Overall workstation dimensions | 1200 x 2400 x 750 mm | |
| Per-user individual worksurface size | 1200 x 700 mm | |
| Side storage return dimensions | 1200 x 400 x 650 mm | |
| Central privacy panel height above desktop | 350 mm | |
| Seated knee clearance height under desktop | 673 mm | |
| Desktop panel thickness | 25 mm | |
| PVC edge banding thickness | 2 mm | |
| Support leg steel tube wall thickness | 1.2 mm | |
| Open CPU cubby internal dimensions | 250 x 500 x 450 mm | |
| Cable grommet diameter | 60 mm | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Total product net weight | 160 kg | |
|---|---|---|
| Desktop static uniform load capacity | 100 kg | |
| Drawer slide cycle durability | 50000 cycles | |
| Surface abrasion resistance | 2000 cycles | |
| Recommended maximum user count | 2 people | |
| Manufacturer warranty period | 3 years | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles | |
| Top Abrasion Reference | Acceptance target ≥4,000 abrasion cycles or finish-system test |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Worksurface material | 25mm E1-grade melamine-faced MDF | |
|---|---|---|
| Desk support legs | Powder-coated steel tube with walnut wood accent brace | |
| Central privacy divider | Warm brown engineered wood privacy panel | |
| Under-desk storage cabinet carcases | 18mm melamine-faced particleboard | |
| Storage drawer fronts | Two-tone taupe engineered wood with brown accent trim | |
| Hardware components | Zinc-alloy drawer locks, steel drawer slides, plastic support feet | |
| Edge trim material | 2mm thick PVC edge banding | |
| Cable management components | ABS plastic cable grommets and under-desk cable trays | |
| Primary Panel Thickness | 25 mm; load-bearing top may use 40 mm composite build-up | |
| Edge Band Thickness | 2 mm | |
| Metal Frame Wall Thickness | 2 mm cold-rolled steel | |
| Primary Connector Specification | Reference M6-M8 with at least 2 fixing points per main support |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Workstation layout | Face-to-face dual seating with central divider separating two opposite work zones | |
|---|---|---|
| Integrated storage configuration | Continuous under-desk base with lockable drawers, open CPU cubbies, and side return storage | |
| Drawer security | Keyed lock on side return top drawer to secure confidential documents and valuables | |
| Cable management | Desktop grommets and under-desk routing for power, data, and peripheral cables | |
| Leg stability design | Splayed angled A-frame legs with wood cross-brace for lateral rigidity | |
| Storage compartment use | Open vented cubbies sized to house full-size desktop computer towers with airflow clearance | |
| Surface functionality | Scratch and stain resistant melamine finish suitable for daily office equipment and paperwork use | |
| Lockable drawer internal dimensions | 400 x 350 x 150 mm | |
| Cable Management Capacity | Reference capacity 10power/data cables; tray load 10 kg | |
| Reference Reassembly Count | Main joints should support 5controlled assembly cycles |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open plan office layouts | Suitable for 2-person staff work zones in co-working or corporate open offices | |
|---|---|---|
| Small business workspaces | Ideal for startup teams needing compact shared desk with integrated filing storage | |
| Staff workstation deployments | Designed for daily administrative, design, or customer service seated work | |
| Bulk office fit-out projects | Modular design compatible with multi-unit row installations for large office renovations | |
| IT and admin team areas | Integrated CPU bays and lockable drawers support IT equipment storage and secure document filing |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office worktables and desks, safety and strength requirements for commercial workstation use | |
|---|---|---|
| EN 527-2:2016 | Office worktables, dimensional and structural performance requirements for seated use | |
| EN 14073-2:2004 | Office storage furniture, safety and strength requirements for integrated pedestal drawers |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk products standard, applicable to static load, stability and durability testing | |
|---|---|---|
| ANSI/BIFMA X5.9-2019 | Storage units standard, applicable to drawer cycle and load performance testing |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden office furniture, applicable to worktop and cabinet components | |
|---|---|---|
| GB/T 3327-2017 | Performance test methods for desks and tables, applicable to structural stability and load testing | |
| GB 18580-2017 | Formaldehyde emission limits for wood-based panels, minimum E1 grade required for indoor office use |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden office furniture, applicable to worktop and cabinet components; 2. GB/T 3327-2017: Performance test methods for desks and tables, applicable to structural stability and load testing; 3. GB 18580-2017: Formaldehyde emission limits for wood-based panels, minimum E1 grade required for indoor office use; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
