PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Primary Component Thickness	40 mm according to load-bearing role
Hardware / Moving-part Clearance	5 mm operating clearance

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Distributed worktop static load	160 kg total, 40 kg per seated position
Mobile pedestal drawer load	15 kg per drawer
Mobile pedestal total load	45 kg
Divider panel attachment load	5 kg lateral load per screen
Product net weight	118 kg
Number of occupants	4
Pedestal storage units	2 mobile pedestals
Drawer count	4 drawers total
Warranty target	5 years
Seating capacity	4 users

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Worktop substrate	25 mm wood-based panel with wood-grain laminate surface and matching edge banding
Support frame	Silver powder-coated square steel legs and perimeter rail frame
Divider panel	22 mm fabric-wrapped privacy board with silver aluminum top trim
Divider mounting bracket	Light gray metal or rigid polymer clamp bracket fixed through the central worktop zone
Mobile pedestal case	Wood-grain laminated board front and side panels with dark gray end panel
Drawer hardware	Ball-bearing side-mounted drawer slides with integrated recessed drawer pulls

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Privacy separation	Two centrally mounted 350 mm-high screens separate opposite-facing users and reduce direct visual distraction.
Cable management	Each work position includes a central cable port with 80 mm cover for monitor and power cable routing below the top.
Under-desk storage	Two two-drawer mobile pedestals provide personal storage and fit within the bench support zone without reducing both outer knee bays.
Floor installation	Freestanding bolt-together frame with leveling glides; no floor anchoring is required for level hard floors.

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Total packed volume	0.68 m3
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Packaging Volume	0.8 m³/set
Reference Packaged Gross Weight	120 kg/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan office	Four-person rectangular bench suits open offices and project teams because it combines shared structure with individual 1200 x 600 mm work zones.
Administrative workstation area	Mobile pedestals and cable ports support daily paperwork, laptop or dual-monitor work and personal filing in procurement and administration departments.

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.9

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · BW4-2400X1200-WP2

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · BW4-2400X1200-WP2

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · BW4-2400X1200-WP2Open Export Tool

Quick Actions

Post an RFQ

Product Description

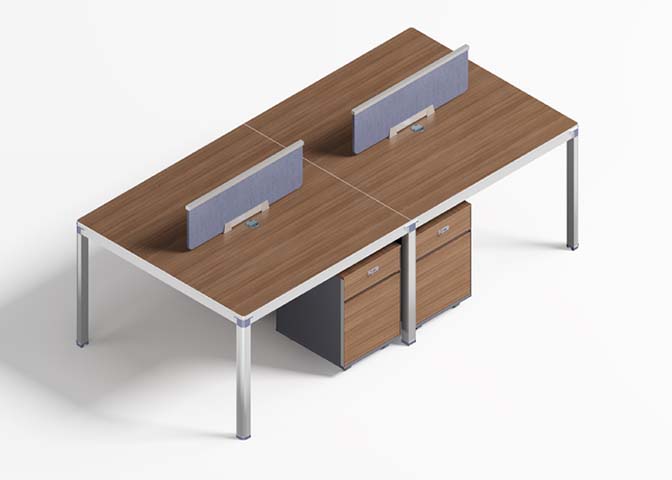

The Four-Person Bench Workstation with Central Dividers and Mobile Pedestals is an unbranded bench desk designed to organize four users within one shared rectangular layout. Model BW2400X1200-WP2 presents a clean, coordinated appearance through wood-grain laminate worktops, a silver metal frame, grey fabric privacy panels, and matching laminate storage units. Its linear bench form creates four individual 1200 x 600 mm work zones while retaining a compact shared footprint. Each worktop uses a 25 mm wood-based panel with a wood-grain laminate surface and matching edge banding. Primary components vary in thickness according to load-bearing role, with a maximum stated thickness of 40 mm. The support structure consists of silver powder-coated square steel legs and a perimeter rail frame. Two 22 mm fabric-wrapped privacy boards run through the central worktop zone and are finished with silver aluminum top trim. They are held by light gray metal or rigid polymer clamp brackets and provide a 5 kg lateral load capacity per screen. The central dividers stand 350 mm high, separating opposite-facing users and reducing direct visual distraction without enclosing the workspace. Every position includes a central cable port with an 80 mm cover, allowing monitor and power cables to route below the work surface. Two two-drawer mobile pedestals offer personal filing storage and are designed to fit within the bench support zone while preserving usable outer knee bays. Each pedestal combines wood-grain laminated front and side panels with a dark gray end panel, ball-bearing side-mounted slides, and integrated recessed pulls. Rated capacity supports routine office use: the distributed worktop static load is 160 kg in total, or 40 kg per seated position, while each pedestal drawer supports 15 kg and each full pedestal supports 45 kg. The freestanding bolt-together frame uses leveling glides and does not require floor anchoring on level hard floors. Hardware and moving parts allow a 5 mm operating clearance. This workstation is suited to open-plan offices and project teams that benefit from shared structure alongside defined personal spaces. It is also appropriate for administrative and procurement areas handling paperwork, laptops, dual monitors, and daily filing. Procurement teams should plan for two cartons per set, a net weight of 118 kg, packaged gross weight of 120 kg, packed volume of 0.68 m3, reference packaging volume of 0.8 m3 per set, and a reference assembly time of 40 minutes per set.
