PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	2400 × 1800 × 1550 mm
Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Desktop distributed static load	80 kg
Single drawer static load	15 kg
Open shelf static load per level	20 kg
Lower cabinet shelf static load	25 kg
Product net weight	145 kg
Recommended user capacity	1 person
Door and drawer durability target	50,000 operating cycles
Adjustable foot leveling range	10 mm
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Desktop and work surfaces	25 mm melamine-faced particleboard or MDF panel with PVC edge banding
Cabinet and hutch panels	18 mm melamine-faced engineered board in light gray and oak finish
Back and side panels	18 mm light-gray melamine panel with rounded exposed corners
Privacy screen	Rigid light-gray frame with textured fabric or acrylic front face
Support hardware	Powder-coated gray metal foot tubes, leveling stems, and shelf supports
Door and drawer hardware	Central key locks, recessed pulls, hinges, and drawer slide hardware

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Storage configuration	Four lower lockable doors, one right-hand drawer, and four upper open compartments provide enclosed and display storage.
Cable management	Desktop grommet and rear shelf riser route monitor and laptop cables toward the lower cabinet zone.
Privacy and focus	A curved desk-mounted screen shields the monitor area without blocking access to the hutch.
Leveling installation	Exposed adjustable feet at the side panel and base plinth allow the workstation to be leveled on uneven floors.

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Total packed volume	0.62 cbm
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Private executive office	Suits managers or specialists needing a 750 mm work surface, lockable storage, and a rear hutch for binders.
Administrative workstation	Suitable for paperwork and laptop tasks where cable routing, drawer storage, and open reference shelves are required.

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · EWS-L-2400-HUTCH

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · EWS-L-2400-HUTCH

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · EWS-L-2400-HUTCHOpen Export Tool

Quick Actions

Post an RFQ

Product Description

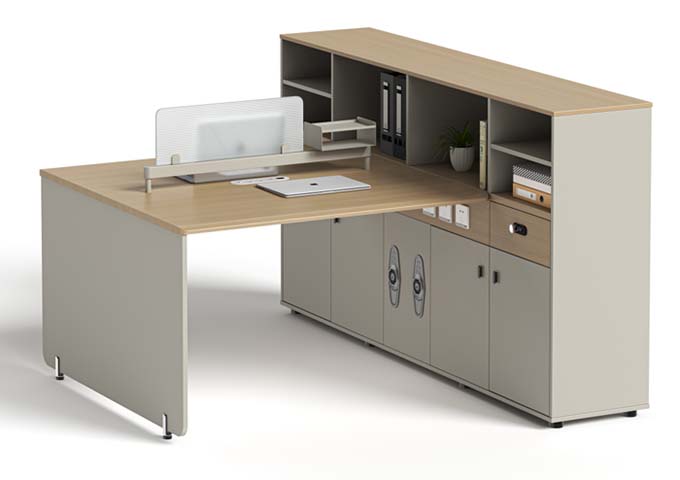

The EWS-L-2400-HUTCH is an unbranded L-shaped executive workstation with an integrated storage hutch, designed for a single user who needs a substantial work surface, privacy, and organized storage within one coordinated layout. Its modern form combines a main desk and return with a rear shelf riser, lower cabinet storage, and a curved desk-mounted screen that shields the monitor area while preserving access to the hutch. The cabinet and hutch use light-gray and oak melamine finishes, giving the workstation a balanced professional appearance suited to private offices and focused administrative settings. Construction is based on melamine-faced engineered wood panels. Desktop and work surfaces use 25 mm particleboard or MDF panels with PVC edge banding, while the finished top thickness is specified at 50 mm. Cabinet and hutch panels are 18 mm melamine-faced engineered board, with 18 mm light-gray melamine used for back and side panels and rounded exposed corners. The support system includes powder-coated gray metal foot tubes, leveling stems, shelf supports, and an 80 mm main support section with a 2 mm metal wall. Plastic and metal hardware, hinges, drawer slides, recessed pulls, and central key locks complete the specification. The storage layout provides four lower lockable doors, one right-hand drawer, and four upper open compartments, supporting secured storage, everyday drawer access, and open placement for reference materials or display items. Static load capacities are rated for desktop distributed loading at 80 kg, a single drawer at 15 kg, each open shelf level at 20 kg, and a lower cabinet shelf at 25 kg. The door and drawer durability target is 50,000 operating cycles. Cable management is handled through an 80 mm diameter desktop grommet, a rear shelf riser, and a cable tray with 120 mm depth, directing monitor and laptop cables toward the lower cabinet zone. Each main seat position offers 680 mm high and 900 mm wide knee clearance. Adjustable feet at the side panel and base plinth allow leveling on uneven floors, while the rigid light-gray privacy frame has a textured fabric or acrylic front face. This workstation is appropriate for a private executive office used by a manager or specialist, particularly where lockable storage and binder space are required. It also fits administrative roles involving paperwork and laptop tasks that benefit from cable routing, a drawer, and open reference shelves. Procurement planning should account for the 145 kg net weight, multi-carton delivery, assembly requirement, and 40-minute reference assembly time. Buyers should also confirm finish choice, lock and key requirements, floor access, and available room circulation before purchase.

L-Shaped Executive Workstation with Integrated Storage Hutch Specifications
