PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Recommended users	4 persons
Worktop distributed static load	80 kg per seat
Overhead storage distributed load	20 kg per two-bay unit
Lower open shelf load	25 kg per bay
Center divider lateral resistance	15 kg
Product net weight	180 kg
Floor point load at support cabinet	50 kg
Warranty duration	5 years
Color options	2 finishes visible
Top Static Load Reference	150 kg uniformly distributed

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Work surfaces	25 mm melamine-faced particleboard with sealed impact edges
Cabinet and overhead bodies	18 mm melamine-faced chipboard panels in grey finish
Center divider panels	Fabric-faced acoustic board over a framed core with perforated dark surface
Legs and support frame	50 mm round powder-coated steel tubes with white finish
Hardware and connectors	Steel cam bolts, corner brackets, screws and leveling glides
Edge protection	2 mm PVC edge banding on high-contact worktop edges

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Four-person work layout	Back-to-back arrangement gives each user a 1200 x 600 mm independent work surface and 600 mm seating bay
Visual separation	Two central upholstered divider panels screen adjacent users while preserving shared overhead and cable space
Storage support	Each side uses box cabinets with one lower open bay and a two-compartment overhead shelf for documents
Cable management	Central divider rail and dark cover strip provide a 100 mm-wide vertical/horizontal cable channel for power and data routing

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan office cluster	Suitable for four staff in call centers, administration teams or shared project areas where separate screens reduce distraction
Procurement configuration	Use as a compact modular cluster with task chairs, CPU holders or monitor arms; additional power modules should be specified separately

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

Office furniture strength and durability	EN 16139
Office work desk dimensions	EN 527
Formaldehyde emission panel limit	EN 13986 E1

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.5

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

Formaldehyde emission recommendation	GB/T 39600 E1 emission class
Physical and chemical surface test	GB/T 4893.1 through GB/T 4893.9
Wooden furniture general technical condition	GB/T 3324

Standardized tender description text

This product must meet the following technical requirements:
1. Formaldehyde emission recommendation: GB/T 39600 E1 emission class;
2. Physical and chemical surface test: GB/T 4893.1 through GB/T 4893.9;
3. Wooden furniture general technical condition: GB/T 3324;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · WS-4P-B2B-2800

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · WS-4P-B2B-2800

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · WS-4P-B2B-2800Open Export Tool

Quick Actions

Post an RFQ

Product Description

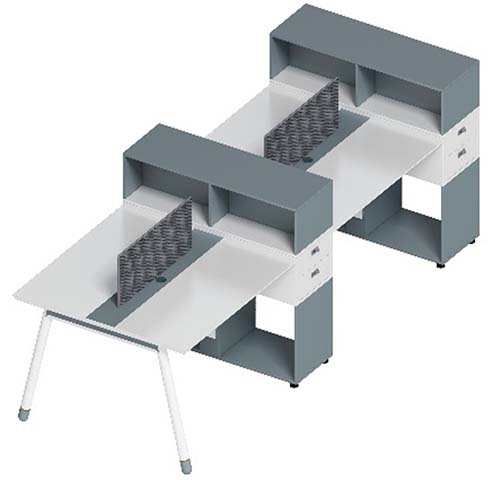

The Four-Person Back-to-Back Panel Workstation with Overhead Storage and Dividers is an unbranded office workstation designed for organized shared workspaces. Model WS-4P-B2B-2800 uses a back-to-back layout that provides four users with separate work surfaces while keeping the overall footprint compact. Each person receives an independent 1200 by 600 mm work area with a defined seating bay, supported by a central arrangement of two fabric-faced divider panels. These panels create visual separation between adjacent users while leaving overhead storage and cable routing accessible. The grey cabinet and storage bodies paired with white powder-coated steel frames give the workstation a coordinated, neutral appearance suited to conventional office interiors. Its dark perforated divider surfaces and central cover strips add visual depth while helping conceal cable pathways. Construction combines melamine-faced board, steel, fabric-covered acoustic panels, and protective edge detailing. Work surfaces use 25 mm melamine-faced particleboard with sealed impact edges, while high-contact worktop edges include 2 mm PVC edge banding. Cabinet and overhead storage bodies are made from 18 mm grey melamine-faced chipboard. The legs and support frames use 50 mm round white powder-coated steel tubing, with steel cam bolts, corner brackets, screws, and leveling glides included in the hardware and connector system. The finished top thickness is 50 mm, and the leg or support section has an 80 mm main section with a 2 mm metal wall. Practical features are built around daily desk work, document storage, and power or data organization. Each side includes box cabinets with a lower open bay and a two-compartment overhead shelf. The overhead storage is structured as a two-bay unit, while the lower open shelf provides accessible storage by the work area. Cable management is handled through a central divider rail and dark cover strip forming a 100 mm-wide vertical and horizontal channel, with an 80 mm cable opening and a cable tray depth of 120 mm. The layout offers 680 mm high and 900 mm wide knee clearance at each main seat. This workstation is appropriate for open-plan office clusters, including call centers, administration teams, and shared project areas where reduced visual distraction is useful. It can be procured as a compact modular cluster and paired with task chairs, CPU holders, or monitor arms. Additional power modules should be specified separately. Buyers should also plan for assembly, delivery handling, and floor loading, noting the 180 kg product net weight and support-cabinet floor point load. Published load guidance includes an 80 kg distributed static worktop load per seat, a 20 kg distributed overhead storage load per two-bay unit, a 25 kg lower open shelf load per bay, and 15 kg center divider lateral resistance. Packaging and assembly details should be confirmed at order stage because the supplied logistics information describes the set across more than one carton configuration.

Four-Person Back-to-Back Panel Workstation with Overhead Storage and Dividers Specifications
