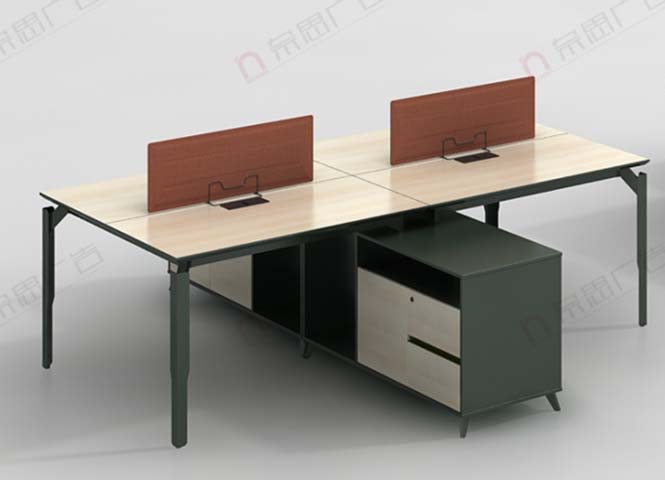

Name: 4-Person Double-Sided Modular Office Workstation with Desk Dividers and Central Under-Desk Storage
Brand: aibi furniture
SKU: XWVPKR

Time

Field

Original Value

Corrected Value

Note / Status

No correction records yet. Found an error? Click the flag at the end of a row to report it.

PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	2830 × 2890 × 1100 mm
Overall unit footprint	2830 x 2890 x 1100 mm
Work surface height	750 mm
Per-seat work surface area	1400 x 700 mm
Privacy divider height above worktop	350 mm
Desktop panel thickness	25 mm
Under-desk knee clearance height	650 mm
Central storage spine width	400 mm
PVC edge banding thickness	2 mm
Steel leg wall thickness	1.5 mm
Cable grommet opening diameter	80 mm
Storage drawer internal height	150 mm
Open storage compartment internal width	350 mm
Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Static uniform load capacity per work surface	120 kg
Drawer slide cycle life	100000 cycles
Hinge cycle life for cabinet door	100000 cycles
Work surface abrasion resistance	2000 cycles
Unit net weight reference	160 kg
Recommended maximum user weight per seat	150 kg
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Life	Acceptance target 80000 cycles
Top Abrasion Reference	Acceptance target ≥4,000 abrasion cycles or finish-system test

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Worktop substrate	E1-grade MDF core
Worktop finish	Scratch-resistant melamine laminate
Frame and legs	Powder-coated dark green steel
Privacy divider panels	Fabric-wrapped fiberboard core
Storage cabinet panels	18mm thick engineered wood
Edge treatment	2mm thick PVC edge banding
Hardware fasteners	Zinc-plated steel connectors
Drawer slides	Cold-rolled steel ball-bearing slides
Cabinet door lock	Zinc alloy keyed cam lock
Primary Panel Thickness	25 mm; load-bearing top may use 40 mm composite build-up
Edge Band Thickness	2 mm
Metal Frame Wall Thickness	2 mm cold-rolled steel

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Seating layout	Double-sided 4-position configuration
Privacy screening	Two desktop-mounted dividers separate adjacent seat pairs
Cable management	Dual desktop grommets with under-desk routing brackets
Storage configuration	Central spine with 2 open compartments, 2 stacked drawers, 1 lockable cabinet
Assembly structure	Knock-down flat-pack design
Leveling adjustment	Integrated adjustable foot glides on all legs
Modular connectivity	Pre-drilled connection points for adding adjacent workstation units
Lockable storage	Keyed lock secures lower cabinet compartment
Cable Management Capacity	Reference capacity 10power/data cables; tray load 10 kg
Reference Reassembly Count	Main joints should support 5controlled assembly cycles

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan office staff areas	Accommodates 4 employees in high-density team work zones
Call center and shared workspaces	Provides partial privacy and individual storage for shift-based staff
Small business startup offices	All-in-one storage and work surface reduces need for separate filing furniture
Co-working facility dedicated desks	Assignable fixed seats with integrated cable management for permanent members
Corporate department work zones	Modular design connects to additional units to form larger team clusters

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 527-1:2011	Office worktables safety and strength requirements
EN 527-2:2016	Office worktables dimensional safety requirements
EN 14073-2:2004	Office storage furniture safety requirements

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.5-2021	Office desk performance and durability standard
ANSI/BIFMA X5.9-2019	Storage furniture performance standard
ANSI/BIFMA X7.1-2020	Furniture formaldehyde emission standard

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture
GB/T 3327-2016	Performance requirements for office desks
GB 18580-2017	Formaldehyde emission limits for wood-based panels
GB/T 4897.3-2003	Particleboard specifications for furniture use

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture;
2. GB/T 3327-2016: Performance requirements for office desks;
3. GB 18580-2017: Formaldehyde emission limits for wood-based panels;
4. GB/T 4897.3-2003: Particleboard specifications for furniture use;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · WS-4P-CEN-001

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · WS-4P-CEN-001

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · WS-4P-CEN-001Open Export Tool

Quick Actions

Post an RFQ

Product Description

The WS-4P-CEN-001 4-person double-sided modular office workstation from aibi furniture is a purpose-built commercial open-plan furniture solution designed to balance collaborative accessibility, individual privacy, and space efficiency for high-density work environments. Its overall footprint forms a symmetrical double-sided layout with four work positions arranged around a 400mm wide central storage spine. Each seat offers a dedicated work surface measuring 1400 x 700mm, set at a standard 750mm work surface height with 650mm of under-desk knee clearance. Two fabric-wrapped fiberboard privacy dividers, extending 350mm above the worktop, separate adjacent seat pairs to reduce visual distraction without isolating team members. The worktops feature an E1-grade MDF core with a scratch-resistant melamine laminate finish, 25mm thick desktop panels, and 2mm thick PVC edge banding to protect against daily wear. The frame and legs are constructed from powder-coated dark green steel, with zinc-plated steel connectors for structural stability, and integrated adjustable foot glides on all legs to accommodate uneven flooring. The central storage spine, built from 18mm thick engineered wood, includes 2 open storage compartments, 2 stacked drawers fitted with cold-rolled steel ball-bearing slides, and 1 lockable cabinet secured with a zinc alloy keyed cam lock. Dual desktop grommets paired with under-desk routing brackets deliver integrated cable management to keep work surfaces uncluttered. Each work surface supports a 120kg static uniform load, with a 150kg uniformly distributed top static load reference and 150kg recommended maximum user weight per seat. The unit delivers reliable long-term use, with drawer slides and cabinet door hinges tested to 100,000 cycles, and work surfaces rated for 2000 cycles of abrasion resistance. Delivered as a knock-down flat-pack design, the workstation has a 40-minute per-set reference assembly time, with pre-drilled connection points that allow adjacent units to be linked for larger team clusters. It is ideal for open-plan office staff areas, call centers, small business startup offices, co-working dedicated desk zones, and corporate department workspaces, as its all-in-one design eliminates the need for separate filing furniture to reduce total furnishing footprint. When planning procurement, teams should account for unit installation coordination, as the set ships across multiple cartons with a 180kg total packaged gross weight and 1 cubic meter total packaging volume, and plan layout alignment to leverage modular connectivity for future team expansion.
