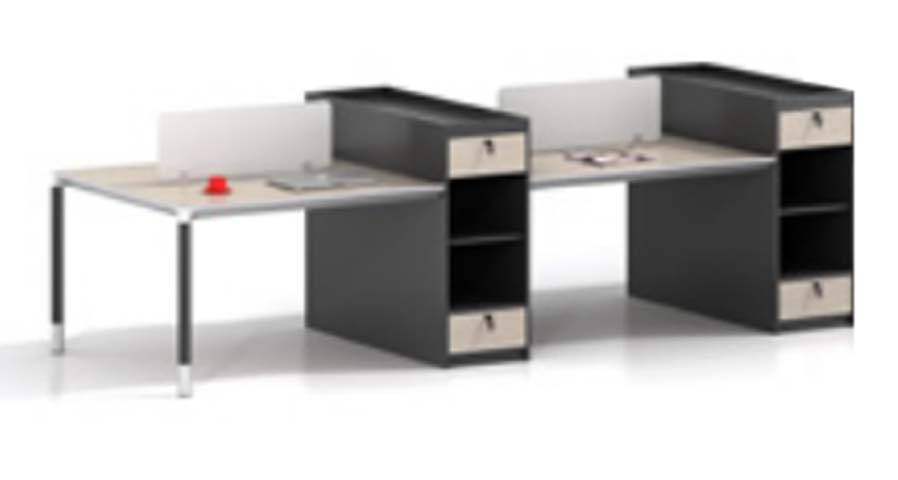

2-Person Opposite-Facing L-Shaped Cluster Office Workstation Desk with Dividers and Integrated Storage (model WS-2P-L-DS-760) is listed under Open Workstation, with overall dimensions of 2400 × 1200 × 760 mm and main material of Particle‑board (PB). Load capacity: 91 kg per position. Certifications: two-tone,finish,modular,structure,integrated,storage,low,privacy,divider,opposite-facing,two-person,configuration. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall workstation footprint | 2400 x 1200 x 760 mm | |
|---|---|---|
| Individual main work surface | 1200 x 600 mm | |
| Individual return work surface | 900 x 600 mm | |
| Work surface thickness | 25 mm | |
| PVC edgeband thickness | 2 mm | |
| Privacy divider panel height | 300 mm | |
| Privacy divider panel thickness | 18 mm | |
| Under-desk seated knee clearance height | 670 mm | |
| Knee clearance width per user | 600 mm | |
| Integrated storage cabinet unit dimensions | 400 x 600 x 720 mm | |
| Single drawer internal dimensions | 350 x 520 x 150 mm | |
| Open shelf internal dimensions | 350 x 520 x 220 mm | |
| Metal support leg diameter | 50 mm | |
| Steel leg wall thickness | 1.5 mm | |
| Cable grommet diameter | 60 mm | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Work surface static load capacity | 91 kg per position | |
|---|---|---|
| Total product net weight | 182 kg | |
| User capacity | 2 people | |
| Drawer slide cycle durability | 50000 cycles | |
| Laminate surface abrasion resistance | 2000 cycles | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles | |
| Top Abrasion Reference | Acceptance target ≥4,000 abrasion cycles or finish-system test | |
| Recommended Procurement Warranty | Structure 5 years; hardware 3 years; finish 2 years |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Work surface | 25mm E1-grade particleboard core with thermally fused light wood laminate, 2mm PVC edgeband | |
|---|---|---|
| Support legs | 1.5mm wall thickness powder-coated cylindrical steel, silver/chrome finished base caps | |
| Cabinet frames | 18mm dark charcoal melamine-faced particleboard, matte finish | |
| Drawer fronts | 18mm light wood-effect melamine-faced particleboard matching worktop, fitted with keyed cam locks | |
| Privacy dividers | 18mm matte white rigid composite panel with dark grey mounting base | |
| Drawer hardware | Full-extension ball-bearing steel slides, chrome-plated lock cylinders |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Storage configuration | Two lockable drawers and two open shelves per cabinet, central and end fixed cabinets | |
|---|---|---|
| Cable management | 60mm diameter desk grommets per position and under-desk cable raceways | |
| Leveling adjustment | Adjustable floor glides on all leg and cabinet bases for uneven floors | |
| Privacy screening | Low 300mm high dividers block seated cross-sightline between opposite users |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open plan office space | Designed for two opposite-facing staff in open offices, low dividers balance privacy and collaboration | |
|---|---|---|
| Commercial office fit-outs | Modular construction supports scalable cluster deployment for 100person work zones |
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office worktables safety and strength requirements, applicable to work surface and frame | |
|---|---|---|
| EN 527-2:2016 | Office worktables mechanical safety test methods, applicable for stability validation | |
| EN 14073-2:2004 | Office storage furniture safety requirements, applicable to integrated cabinet components |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk products performance standard, applicable for load and durability testing | |
|---|---|---|
| ANSI/BIFMA X5.9-2019 | Storage units performance standard, applicable to integrated drawer and shelf units |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden office furniture, applicable to desk and cabinet components | |
|---|---|---|
| GB/T 3327-2017 | Performance test methods for office desks and storage units, applicable for structural strength validation | |
| GB 18584-2001 | Indoor decoration material formaldehyde emission limit for wood-based furniture, applicable to panel components |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden office furniture, applicable to desk and cabinet components; 2. GB/T 3327-2017: Performance test methods for office desks and storage units, applicable for structural strength validation; 3. GB 18584-2001: Indoor decoration material formaldehyde emission limit for wood-based furniture, applicable to panel components; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
