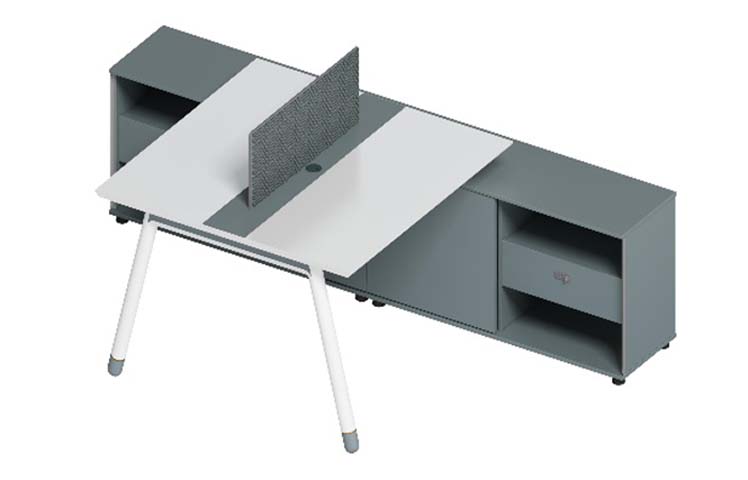

Product supplierTwo-Person Linear Workstation with Central Divider and Integrated Storage Cabinets, 25 mm light gray laminated engineered-wood panels with sealed edges
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Finished Top Thickness | 50 mm | |
|---|---|---|
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Recommended users | 2 persons | |
|---|---|---|
| Work-surface distributed load | 80 kg per user position | |
| Single-point desktop concentrated load | 30 kg | |
| Drawer load capacity | 20 kg | |
| Product net weight | 135 kg | |
| Leveling adjustment range | 12 mm | |
| Surface impact and wear target | 25,000 abrasion cycles | |
| Hardware cycle target | 50,000 drawer cycles | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Work surfaces | 25 mm light gray laminated engineered-wood panels with sealed edges | |
|---|---|---|
| Cabinet carcass | Matte dark gray melamine-faced engineered-wood board with PVC edge banding | |
| Privacy divider | 25 mm board-core screen upholstered in gray woven fabric | |
| Support legs | 45 mm white powder-coated cylindrical steel legs | |
| Leveling feet | Black polymer glides with metal threaded stems | |
| Drawer hardware | Side-mounted steel telescoping slides with a centered polymer or metal pull |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Two-person benching layout | Two 1200 mm work surfaces share one central divider and cable spine, supporting back-to-back seated work. | |
|---|---|---|
| Privacy separation | A 500 mm-high fabric divider creates a 400 mm above-desk visual barrier between adjacent users. | |
| Cable management | The dark central strip includes one visible round 60 mm cable port and conceals vertical and horizontal routing. | |
| Integrated storage | Left and right floor-standing cabinets provide open compartments plus at least one lockable-looking drawer for personal storage. |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Total packed volume | 1.08 CBM | |
|---|---|---|
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open office benching | Suitable for two adjacent staff seats where compact shared support, storage, and visual separation are required. | |
|---|---|---|
| Project procurement layout | Appropriate for repetitive rows in call centers, administrative offices, or renovation projects using matching storage end panels. |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| Office work surface safety | EN 527:2011 | |
|---|---|---|
| Office desk mechanical requirements | EN 527:2011 | |
| Storage cabinet safety | EN 14073:2004 | |
| Storage cabinet stability | EN 14073:2004 | |
| Upholstered panel fabric | EN 14465:2003 |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| Desk and bench strength | ANSI/BIFMA X2021 | |
|---|---|---|
| Storage unit performance | ANSI/BIFMA X2019 | |
| Floor glide performance | ANSI/BIFMA X2017leg-strength sections |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| Furniture dimensional fit | GB/T 3326 | |
|---|---|---|
| Wood-based panel furniture | GB/T 3324 | |
| Formaldehyde emission | GB 18580 |
Standardized tender description text
This product must meet the following technical requirements: 1. Furniture dimensional fit: GB/T 3326; 2. Wood-based panel furniture: GB/T 3324; 3. Formaldehyde emission: GB 18580; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
