PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1680 × 700 × 1150 mm
Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Distributed desktop static load	100 kg
Pedestal top load	40 kg
Drawer static load	15 kg
Lower cabinet shelf load	25 kg
CPU bay equipment fit	Tower up to 220 x 470 x 520 mm
Suggested user weight limit at workstation	120 kg
Product net weight	68 kg
Recommended desktop monitor load	20 kg
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Worktop and wood fronts	25 mm woodgrain laminate panel with sealed matching edgeband
Cabinet body panels	18 mm taupe-grey melamine-faced particleboard or MDF
Support frame and pedestal trim	Champagne-finish steel tube and formed steel rails
Privacy screen	5 mm frosted grey acrylic or tempered glass panel in aluminum rail
Drawer lock and handle	Black integrated lock housing with silver cylinder and numbered lock face
Cabinet base hardware	Black nylon or rubber adjustable leveling pads

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Seated work configuration	750 mm fixed-height worktop with 900 mm left knee bay for one person
Storage layout	Right pedestal combines one 170 mm locked top drawer and one 430 mm lower cabinet door
Computer storage	Open center bay accepts a vertical CPU tower and leaves front access to ports
Cable routing	Desktop oval port feeds cables into the central under-top channel and equipment bay

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Private office workstation	Suits individual focused work because the 1680 mm top, CPU bay and right pedestal support computer-based tasks
Open-plan staff desk	Can be used as a single bench desk with the rear frosted screen providing sightline separation in dense offices

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.5

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · OFW-RP1680-PS

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · OFW-RP1680-PS

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · OFW-RP1680-PSOpen Export Tool

Quick Actions

Post an RFQ

Product Description

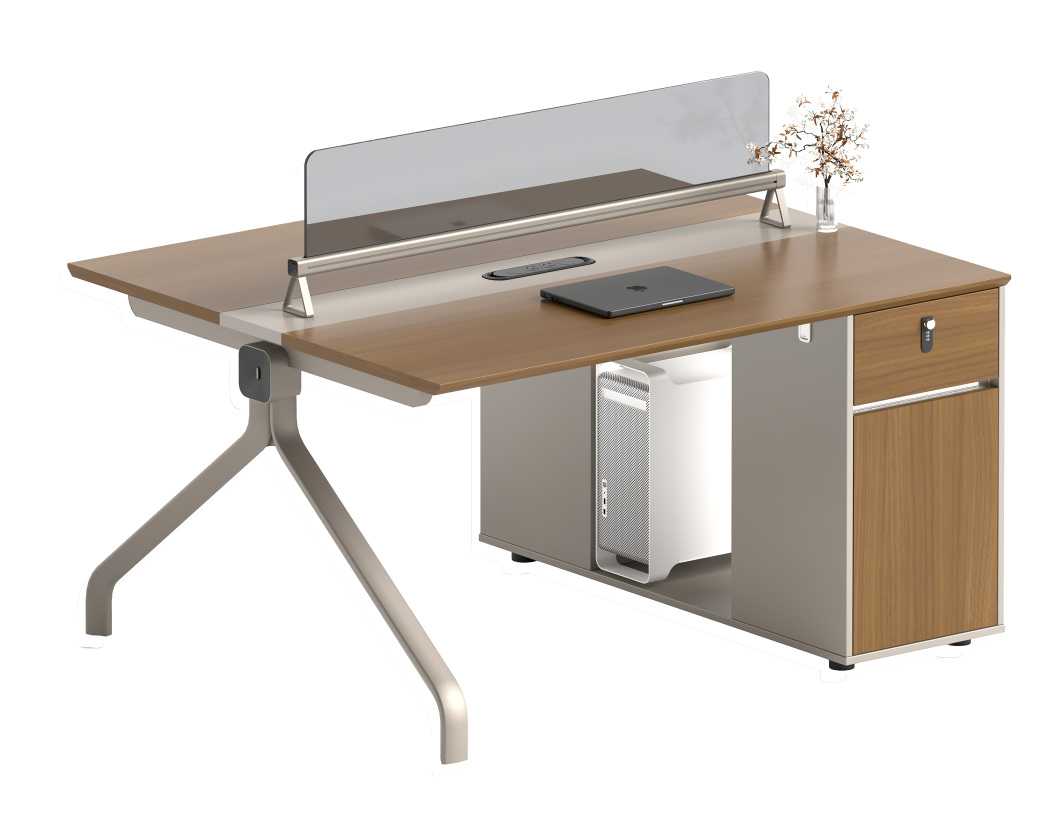

The Woodgrain Single Office Workstation with Right Pedestal and Privacy Screen, model OFW-RP1680-PS, presents a coordinated single-user desk solution with a refined commercial appearance. Its woodgrain laminate worktop and cabinet fronts are paired with taupe-grey painted body panels, a champagne-finish steel support frame, and a rear frosted privacy screen. The visual balance combines warm wood grain, neutral cabinetry, metallic framing, and a translucent divider, giving the workstation a structured look suitable for organized office interiors. The layout is fixed at standard seated working height, with a generous left knee bay for one user and storage concentrated in the right pedestal. The desk-mounted privacy screen runs along the rear of the workstation, helping to define the individual workspace while maintaining a light visual presence. The pedestal provides a locked upper drawer and a lower cabinet behind a door, while an open central bay is designed to hold a vertical computer tower with front access to ports. This arrangement keeps daily documents and personal items within reach, separates equipment from leg room, and supports computer-based tasks without consuming the primary work surface. Construction is based on a 25 millimeter woodgrain laminate worktop with sealed matching edgeband. Cabinet fronts use the same woodgrain finish, while cabinet body panels are 18 millimeter taupe-grey melamine-faced particleboard or MDF. The frame and pedestal trim use champagne-finish steel tube and formed steel rails, with an 80 millimeter main support section and 2 millimeter metal wall. The privacy screen is supplied as a 5 millimeter frosted grey acrylic or tempered glass panel set in an aluminum rail. Other details include a black integrated lock housing with a silver cylinder and numbered lock face, plus black nylon or rubber adjustable leveling pads at the cabinet base. Practical features include an oval cable opening that feeds leads into the central under-top channel and equipment bay, supported by an 80 millimeter cable port and a cable tray with 120 millimeter depth. The finished top is 50 millimeters thick, and the main seat position offers 680 millimeters of knee clearance height and 900 millimeters of width. Rated load capacity is 100 kilograms distributed across the desktop, 40 kilograms on the pedestal top, 15 kilograms per drawer, and 25 kilograms on the lower cabinet shelf. The CPU bay accommodates a tower measuring up to 220 by 470 by 520 millimeters, and the suggested user weight limit at the workstation is 120 kilograms. This model is appropriate for private offices, executive-style individual workspaces, and open-plan staff areas. In a private office, the integrated pedestal, CPU bay, and broad 1680 millimeter top support focused daily work. In dense open-plan environments, it can function as a single bench desk, with the rear frosted screen providing sightline separation between users or work zones. It is also suitable for residential use where a dedicated, storage-equipped home office desk is required. Procurement planning should account for fixed-height configuration, right-side pedestal orientation, and the need for level flooring or adjustment through the base pads.

Woodgrain Single Office Workstation with Right Pedestal and Privacy Screen Specifications
