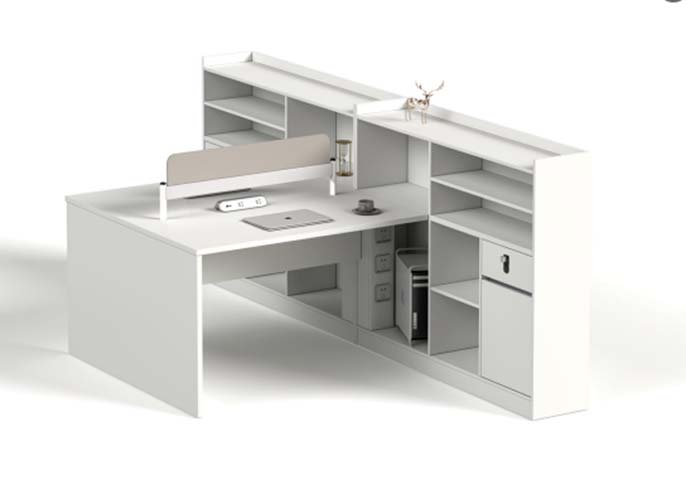

L-Shaped Integrated Office Workstation with Hutch Storage and Privacy Screen (model LS-WS-2400-HUTCH-WHT) is listed under Open Workstation. Dimensions: 2400 × 1800 × 1500 mm. Materials: White melamine-faced particleboard or MDF, sealed exposed edges, visible smooth slab construction. Load capacity: 100 kg. Product Features: white,finish,L-shaped,workstation,integrated,hutch,storage,lockable,drawer,fabric,privacy,divider,CPU,bay. This page consolidates 6 groups of specifications and ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Brand | XIANGSHI | Model | LS-WS-2400-HUTCH-WHT |
| Overall dimensions (W × D × H) | 2400 × 1800 × 1500 mm | Finished Top Thickness | 50 mm |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | Leg / Support Section | 80 mm main section with 2 mm metal wall |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm | Distributed desktop load | 100 kg |
| Single shelf load | 20 kg | Lockable drawer load | 15 kg |
| Lower cabinet shelf load | 25 kg | CPU bay equipment fit | Tower up to 220 x 450 x 500 mm |
| Seating capacity | 1 user primary work zone; 1 guest position at inner return | Suggested total product weight | 165 kg |
| Door and drawer durability | 50,000 open-close cycles | Static stability load | 200 kg total furniture and equipment load |
| Top Static Load Reference | 150 kg uniformly distributed | Desktop and panels | White melamine-faced particleboard or MDF, sealed exposed edges, visible smooth slab construction |
| Privacy screen | Beige fabric-wrapped acoustic panel with a white lower rail and two vertical support posts | Storage carcass | White laminated 18 mm engineered board with fixed vertical dividers and horizontal shelves |
| Hardware set | Metal drawer lock, hinges, shelf fasteners, cam bolts, and support posts; one lock is visible on the drawer | Rear power panel | Rigid panel with three visible socket plates and adjacent cable-management space |
| Base structure | Floor-bearing side panels and lower plinth rails forming a stable box-frame support | Integrated storage layout | Open hutch shelves, one lockable drawer, one lower cabinet door, and a dedicated CPU bay separate documents from equipment |
| Cable and power management | Vertical socket column with three outlet plates sits beside the CPU bay for computer power and cable routing | Privacy division | Raised beige screen blocks direct sightlines across the seated work zone while leaving shelf access open |
| Workstation zoning | Long main desktop supports computer work, while the inner return provides secondary writing, meeting, or equipment space | Largest carton | 2450 x 650 x 120 mm |
| Reference Package Count | 1 set / 2 cartons | Reference Assembly Time | 40 minutes per set |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | Reference Packaged Gross Weight | 180 kg/set in 4 cartons |
| Reference Packaging Volume | 1 m³/set | Private office or supervisor workstation | Suitable where one user needs a computer desk, storage pedestal, CPU access, and overhead document shelves in one compact L-shaped unit |
| Open-plan reception or administrative area | The raised divider creates visual privacy while the return top supports guest interaction and ad-hoc paperwork | — | — |
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 2400 × 1800 × 1500 mm | |
|---|---|---|
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Distributed desktop load | 100 kg | |
|---|---|---|
| Single shelf load | 20 kg | |
| Lockable drawer load | 15 kg | |
| Lower cabinet shelf load | 25 kg | |
| CPU bay equipment fit | Tower up to 220 x 450 x 500 mm | |
| Seating capacity | 1 user primary work zone; 1 guest position at inner return | |
| Suggested total product weight | 165 kg | |
| Door and drawer durability | 50,000 open-close cycles | |
| Static stability load | 200 kg total furniture and equipment load | |
| Top Static Load Reference | 150 kg uniformly distributed |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Desktop and panels | White melamine-faced particleboard or MDF, sealed exposed edges, visible smooth slab construction | |
|---|---|---|
| Privacy screen | Beige fabric-wrapped acoustic panel with a white lower rail and two vertical support posts | |
| Storage carcass | White laminated 18 mm engineered board with fixed vertical dividers and horizontal shelves | |
| Hardware set | Metal drawer lock, hinges, shelf fasteners, cam bolts, and support posts; one lock is visible on the drawer | |
| Rear power panel | Rigid panel with three visible socket plates and adjacent cable-management space | |
| Base structure | Floor-bearing side panels and lower plinth rails forming a stable box-frame support |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Integrated storage layout | Open hutch shelves, one lockable drawer, one lower cabinet door, and a dedicated CPU bay separate documents from equipment | |
|---|---|---|
| Cable and power management | Vertical socket column with three outlet plates sits beside the CPU bay for computer power and cable routing | |
| Privacy division | Raised beige screen blocks direct sightlines across the seated work zone while leaving shelf access open | |
| Workstation zoning | Long main desktop supports computer work, while the inner return provides secondary writing, meeting, or equipment space |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Largest carton | 2450 x 650 x 120 mm | |
|---|---|---|
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Private office or supervisor workstation | Suitable where one user needs a computer desk, storage pedestal, CPU access, and overhead document shelves in one compact L-shaped unit | |
|---|---|---|
| Open-plan reception or administrative area | The raised divider creates visual privacy while the return top supports guest interaction and ad-hoc paperwork |
EU Market Access Requirements* EN Standards
US and Canada office-furniture standards
| North America procurement and testing reference | Recommended references: ANSI/BIFMA X5.5 |
|---|
Standards applicable to China-market projects
This product must meet the following technical requirements: 1. Technical standards and test reports must be supplied during tender or purchase confirmation; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
Export data is generated from the current published product record.
Directly download an English report in metric or imperial units.
Download all product information and parameter modules in English.
English title, specifications, materials, standards and purchasing fields.
Prepare customs description, material, usage, dimensions and declaration elements.
