PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall workstation dimensions	1800 x 1240 x 750 mm
Per-user worksurface width	900 mm
Per-user worksurface depth	610 mm
Worksurface thickness	38 mm
Under-desk knee clearance height	700 mm
Under-desk knee clearance width per user	860 mm
Privacy divider height above worktop	350 mm
Privacy divider width per panel	800 mm
Single under-desk storage pedestal dimensions	400 x 550 x 700 mm
Central desktop organiser dimensions	1200 x 300 x 250 mm
Desk leg section size	60 x 41 mm rectangular steel tube
Cable grommet diameter	76 mm
Storage pedestal open shelf height	350 mm
PVC edge banding thickness	3 mm
Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Total workstation static load capacity	113 kg
Unit net weight	163 kg
Recommended user capacity	2 users
Frame cycle durability	100000 use cycles
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Life	Acceptance target 80000 cycles
Top Abrasion Reference	Acceptance target ≥4,000 abrasion cycles or finish-system test
Recommended Procurement Warranty	Structure 5 years; hardware 3 years; finish 2 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Worktop construction	E1-grade particle board core with walnut thermally fused laminate surface
Frame and legs	1.2mm wall thickness black powder-coated rectangular steel tubing
Privacy dividers	4mm thick mint-tinted frosted acrylic panels
Storage pedestals	Matching engineered wood with black laminate frame and walnut door panel
Pedestal casters	48mm diameter nylon casters, 2 locking per unit
Edge protection	3mm thick PVC edge banding on all worktop exposed edges

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Cable management	Four desk-top cable grommets with under-desk cable tray
Central desktop organiser	Elevated two-tier shared storage unit mounted centrally between work zones
Leveling adjustment	Adjustable leveling feet on each desk leg
Cable Management Capacity	Reference capacity 10power/data cables; tray load 10 kg

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open plan office spaces	Back-to-back configuration maximizes floor space for two staff while maintaining visual privacy
Small business staff work areas	Integrated storage and cable management supports daily administrative and computer work

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 527-1:2011	Office work tables safety and performance requirements, applicable for structural stability and load testing
EN 1335-1:2020	Office furniture seating dimensional coordination, applicable for knee clearance and workspace dimension alignment
EN 71-3:2019	Migration of certain elements safety standard, applicable for finish material safety in office environments

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.5-2021	Desk products performance standard, applicable for static load, stability and durability testing of work surfaces
ANSI/BIFMA X5.9-2019	Storage units performance standard, applicable for pedestal drawer load and cycle testing

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable for worktop and cabinet structural performance and finish durability
GB/T 3327-2017	Performance and test standards for office desks and tables, applicable for load capacity and stability testing
GB 18580-2017	Formaldehyde emission limits for wood-based panels, applicable for E1-grade engineered wood components

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable for worktop and cabinet structural performance and finish durability;
2. GB/T 3327-2017: Performance and test standards for office desks and tables, applicable for load capacity and stability testing;
3. GB 18580-2017: Formaldehyde emission limits for wood-based panels, applicable for E1-grade engineered wood components;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · WS2F-BB-WAL-BLK-01

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · WS2F-BB-WAL-BLK-01

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · WS2F-BB-WAL-BLK-01Open Export Tool

Quick Actions

Post an RFQ

Product Description

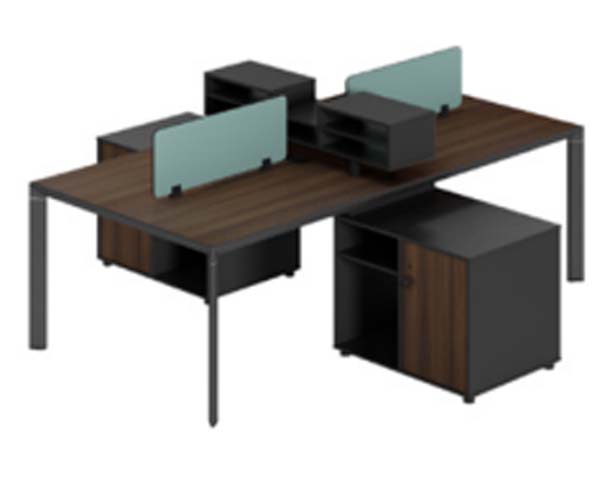

The WS2F-BB-WAL-BLK-01 is an unbranded 2-person back-to-back office workstation desk designed to balance shared space efficiency, personal privacy, and functional utility for regular daily work use. Its back-to-back layout positions two individual work zones opposite one another, separated by frosted acrylic privacy dividers that rise above the work surface to maintain visual separation between adjacent users without closing off the open feel of the surrounding space. A central elevated two-tier shared storage unit sits between the two work zones for easy access to commonly used supplies from either seat, while matching storage pedestals tuck under each work surface to offer personal, mobile storage for individual users. The workstation is built with a durable combination of materials suited to frequent office use. Its worktop uses an E1-grade particle board core finished with walnut thermally fused laminate, with thick PVC edge banding protecting all exposed edges from scuffs and impact damage. The support structure consists of black powder-coated rectangular steel tubing, fitted with adjustable leveling feet on each leg to accommodate uneven floor surfaces. Privacy dividers are made of frosted acrylic, and the included under-desk storage pedestals feature matching engineered wood construction with black laminate frames, walnut door panels, and nylon casters—two of which lock per pedestal—to let users reposition or secure the units as needed. Built-in practical features support smooth, uncluttered work operations. Four desktop cable grommets pair with an under-desk cable tray to route and conceal power and data cords, keeping work surfaces free of tangled wiring. The storage pedestals offer enclosed personal storage, while the central shared organiser keeps frequently used items within easy reach for both users. The frame, drawer slides, and hinges are engineered to withstand repeated regular use over extended periods, with defined load capacities for the worktop, cable tray, and drawer assemblies to support standard office equipment and supplies. This workstation is well suited for open plan office spaces, where its compact back-to-back configuration maximizes usable floor area for two staff members while preserving individual visual privacy, as well as small business staff work areas, where its integrated storage and cable management support routine administrative and computer-based tasks. When planning procurement, note that each unit ships across multiple cartons, requires assembly on site, and is engineered to support a maximum of two users at a time. Teams should allocate appropriate floor space to accommodate the full workstation footprint, and account for on-site assembly time when scheduling installation.

FurnDim

2-Person Back-to-Back Office Workstation Desk with Frosted Privacy Dividers and Storage Pedestals Specifications

WS2F-BB-WAL-BLK-01
